Fig. 6: Comparison of sample space distributions at different carbon nanotube concentrations before and after network reconstruction based on the GAT model.

From: Graph attention networks decode conductive network mechanism and accelerate design of polymer nanocomposites

Fig. 6

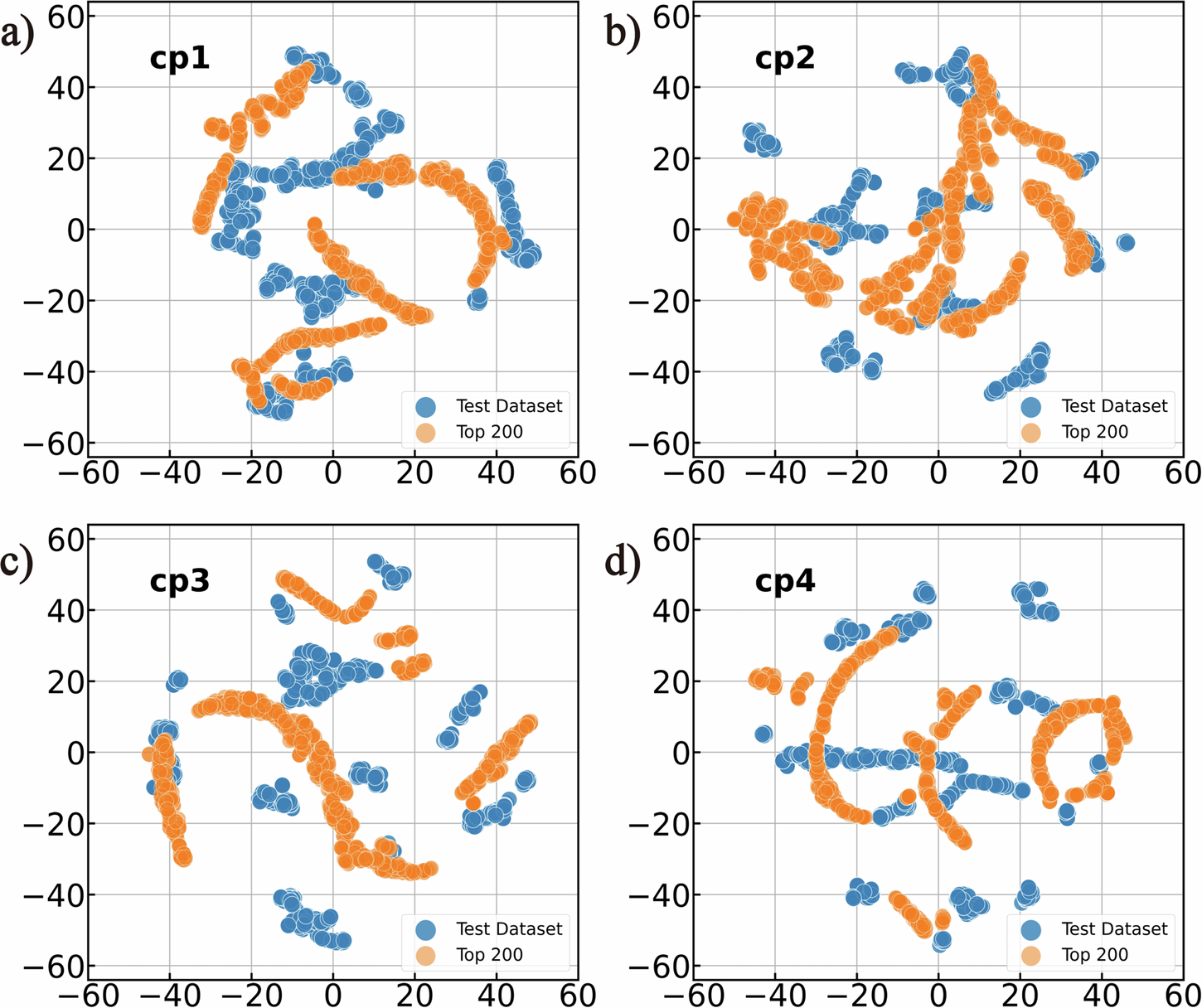

a–d Distribution at a concentration of 1–4% carbon nanotubes. Blue circles represent the distribution of original features after SVD and t-SNE dimensionality reduction, while orange circles represent the distribution after network reconstruction using the top 200 edges based on attention scores extracted from the GAT model.
