Fig. 9: Contribution of each function to the GUES.

From: Unified generalized universal equation of states for magnetic Co, Cr, Fe, Mn and Ni: an approach for non-collinear atomistic modelling

Fig. 9

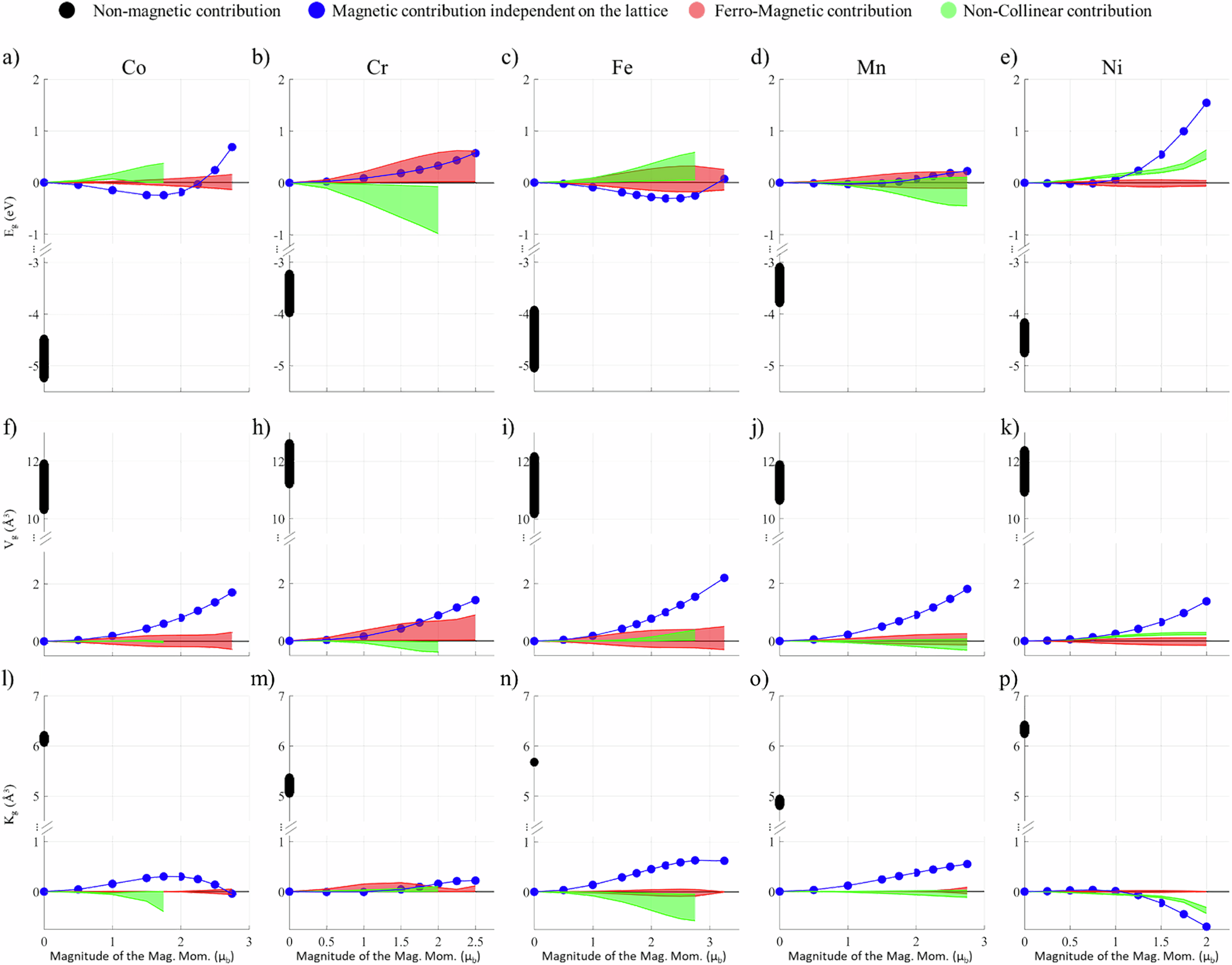

Contribution of the non-magnetic functions, magnetic, ferromagnetic and non-collinear into Eg, Vg, and Kg for Co (a, f, l), Cr (b, h, m), Fe (c, i, n), Mn (d, j, o) and Ni (e, k, p) respectively. Note that the legend is common for all figures and is indicated only at the top of the figure. The x-axis is common for all figures but isonly indicated in the bottom images, and similarly the y-axis is indicated only in (a, f, l).
