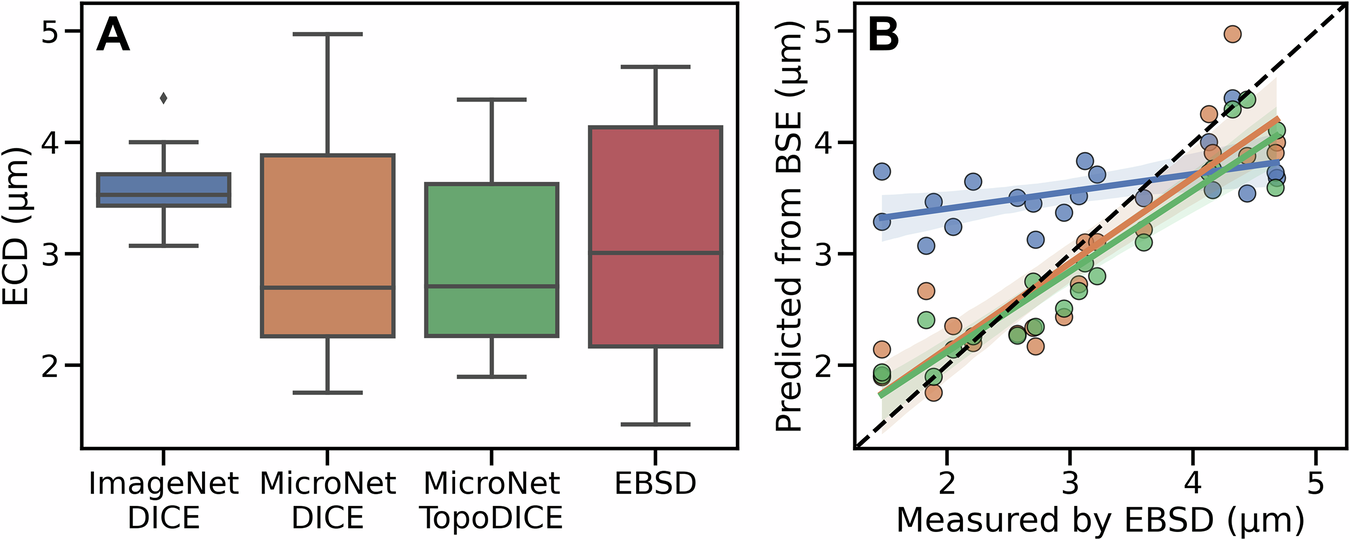

Fig. 5: Comparing ECD predictions made by various models and by EBSD.

A Distributions and B individual ECD predictions on the set of OOD BSE 20 keV images using the SE 10 keV model ensembles, compared against that determined by EBSD. The colors in (B) match those in (A), and the dashed black line indicates the ideal fit.
