Fig. 4: Correlations of static retinal vessel parameters and LysoGb3 with echocardiographic and laboratory parameters of cardiac damage.

From: Endothelial dysfunction in Fabry disease: retinal biomarkers link cardiac GLA gene variants with chronic inflammation

Fig. 4

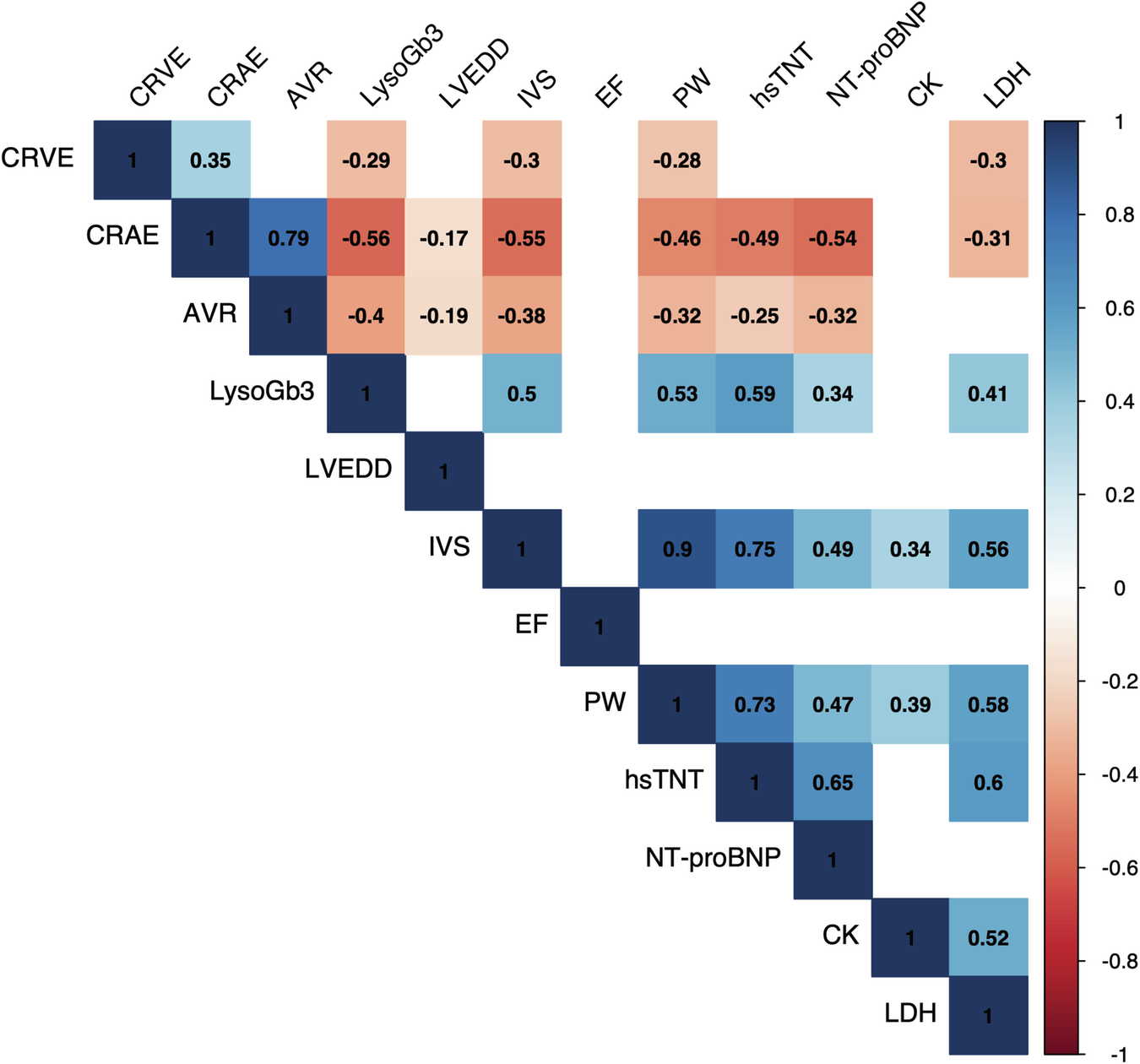

Correlation plots show Spearman correlations of static retinal vessel parameters and and LysoGb3 with cardiac laboratory parameters (hsTnT, high-sensitivity Troponin T, n=38; NT-proBNP, N-terminal prohormone of brain natriuretic peptide, n=38; CK, creatine kinase, n=63; LDH, lactate dehydrogenase, n=63) and echocardiographic parameters (LVEDD, left ventricular end-diastolic diameter, n=59; IVS, intraventricular septum thickness, n=60; PW, posterior wall thickness, n=58; EF, ejection fraction, n=46). Correlation coefficients (r) are visualized and displayed on the right. Non-significant correlations are not shown (empty fields)This figure was created with Affinity Publisher (Version 2.5.5).
