Fig. 2: Structural characterization of in-space manufactured JBNm.
From: In space fabrication of Janus base nano matrix for improved assembly and bioactivity

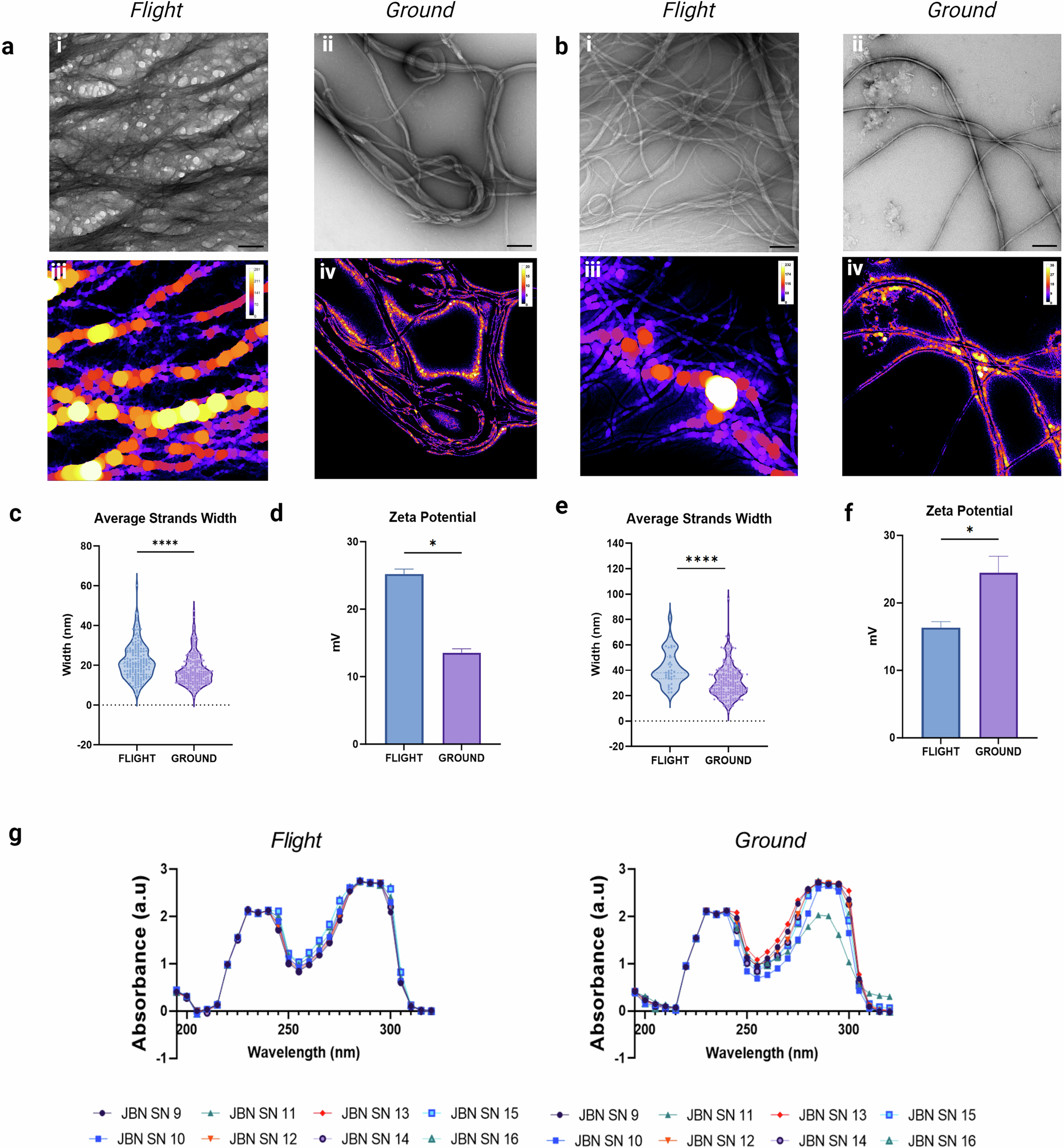

a, b (i-iv) Raw TEM images and images processed in ImageJ of JBNm with Matn1 and JBNm with Matn1/TGF-β2. Scale bar = 150 nm. c, e Average JBNm strand width of JBNm with Matn1 and JBNm with Matn1/TGF-β2. d, f Zeta potential of the JBNm with Matn1 and JBNm with Matn1/TGF-β2. g UV-Vis spectrophotometry for homogeneity of JBNm. Statistical significance was determined by the Student’s T-test. *P ≤ 0.05, **P ≤ 0.01, ***P ≤ 0.001, ****P ≤ 0.0001. N = 12 samples per group, with N = 3 Zeta Potential measurements per sample. N = 12 TEM images per group, with N = 10 strand width measurements per image.
