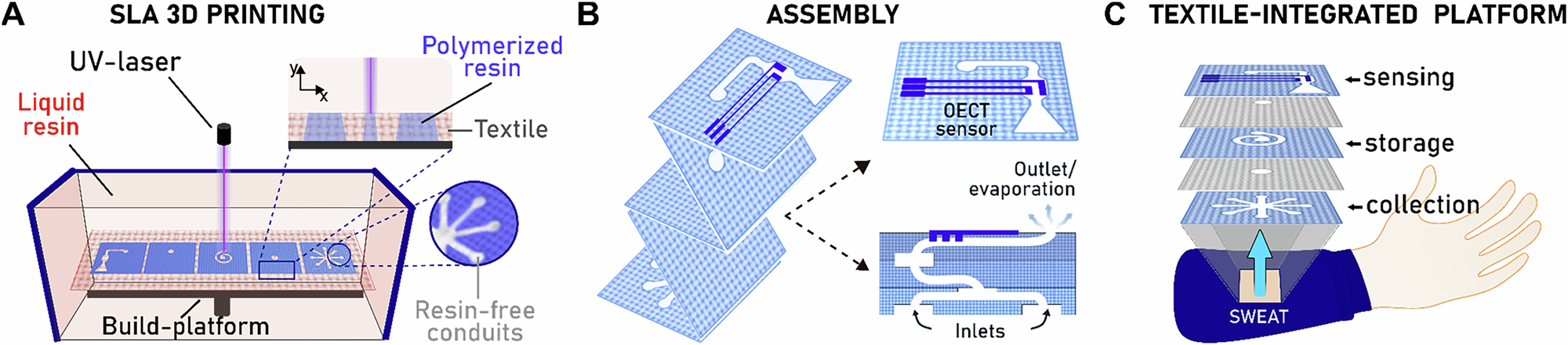

Fig. 1: Vertical textile microfluidics fabrication route.
From: Vertical textile microfluidics: advancing on-garment sweat sampling for real-time biosensing
A SLA 3D printing with textile integration: the fabric is fixed to the building platform and immersed in liquid photosensitive resin, selectively photopolymerized by a UV light source following a multi-layered 3D digital model. B Origami-inspired assembly of microfluidic modules. On the left: overall assembly utilizing origami-inspired folding. Upper-right: top view of the top microfluidic module with integrated OECT sensor. Lower-right: cross-sectional view illustrating vertical sweat flow through modules. C Exploded view of cloth-integrated sweat platform, depicting the vertical arrangement sequence of collection, storage, and sensing modules within designated garment space.
