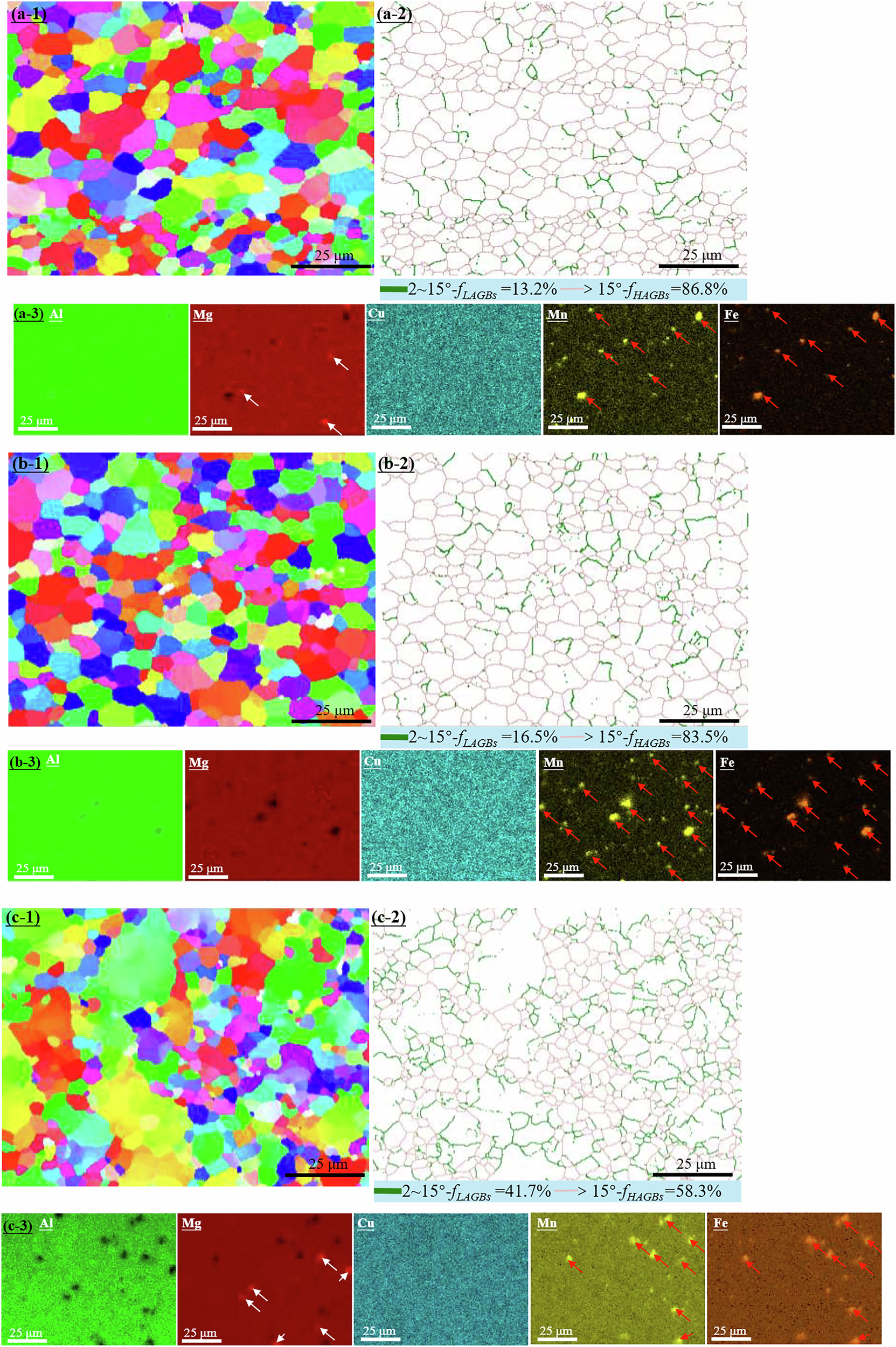

Fig. 4: The high magnification EBSD results and EDS mappings of the tested specimens.

Among that, (1) are the high magnification EBSD results (1000X) images, (2) show the grain boundaries graphs and (3) are the corresponding EDS mapping results of (a) AFSD, (b) HHSAM depositions and (c) 5A06 feedstock.
