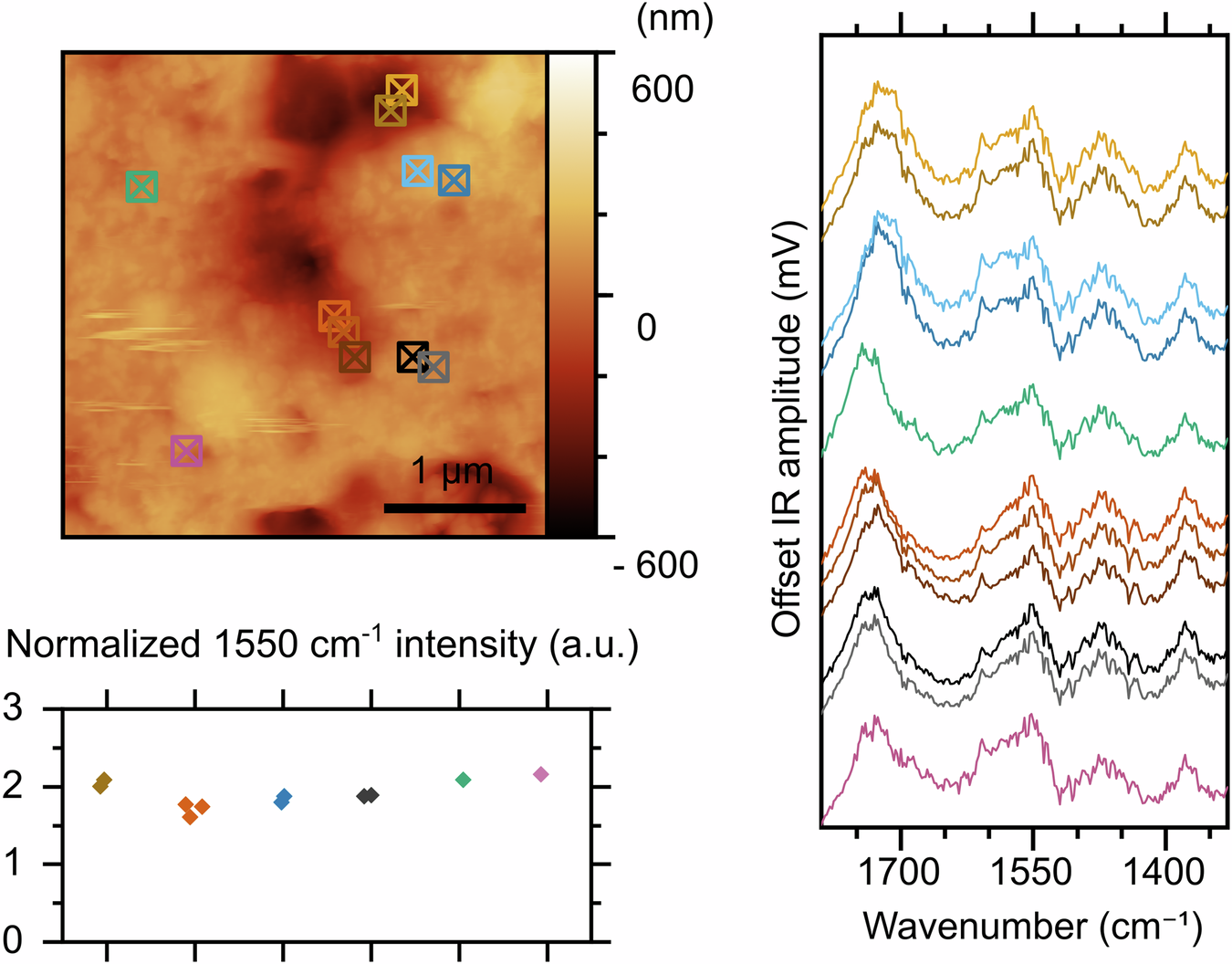

Fig. 14: AFM-IR spectroscopic measurements of the blue sample after weathering.

Each spectrum in the right part of the figure is from the to the location in the topographical map with the corresponding color. The normalized intensity of the 1550 cm⁻¹ band is shown at the bottom left.
