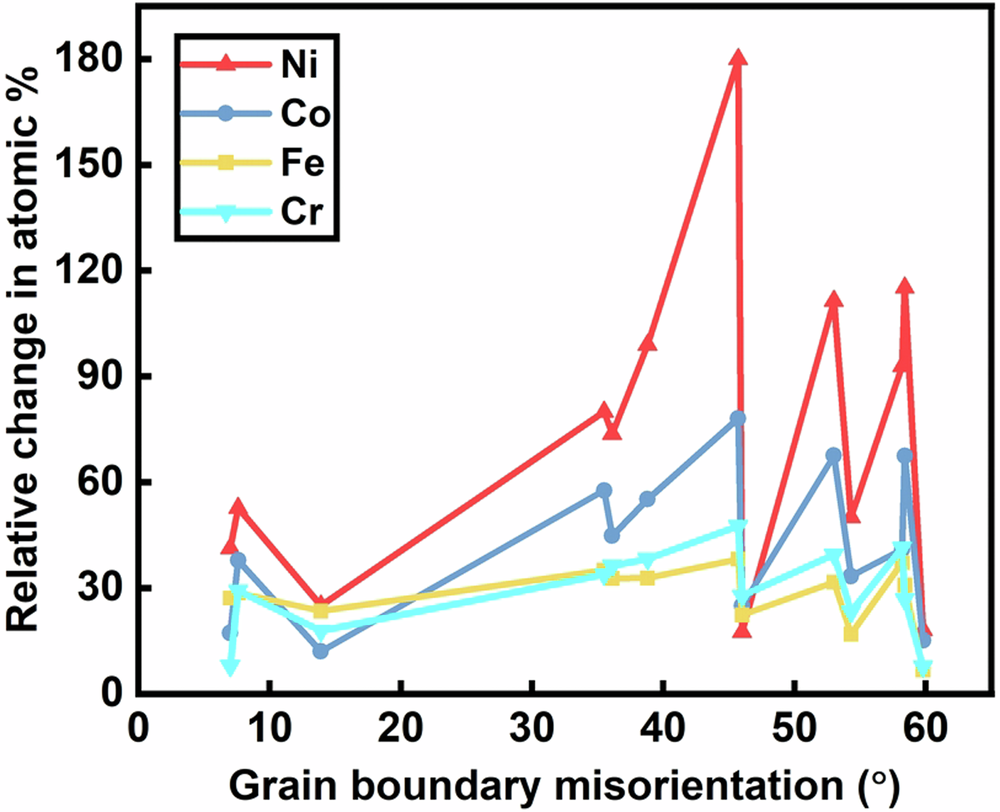

Fig. 8: Variation of radiation-induced segregation with grain boundary misorientation angle.
From: Nanostructured NiCoFeCr alloy with superior high-temperature irradiation resistance
The plot depicts the relative changes in the atomic % of Ni, Co, Fe, and Cr elements for various grain boundaries with different misorientation angles in the irradiated region.
