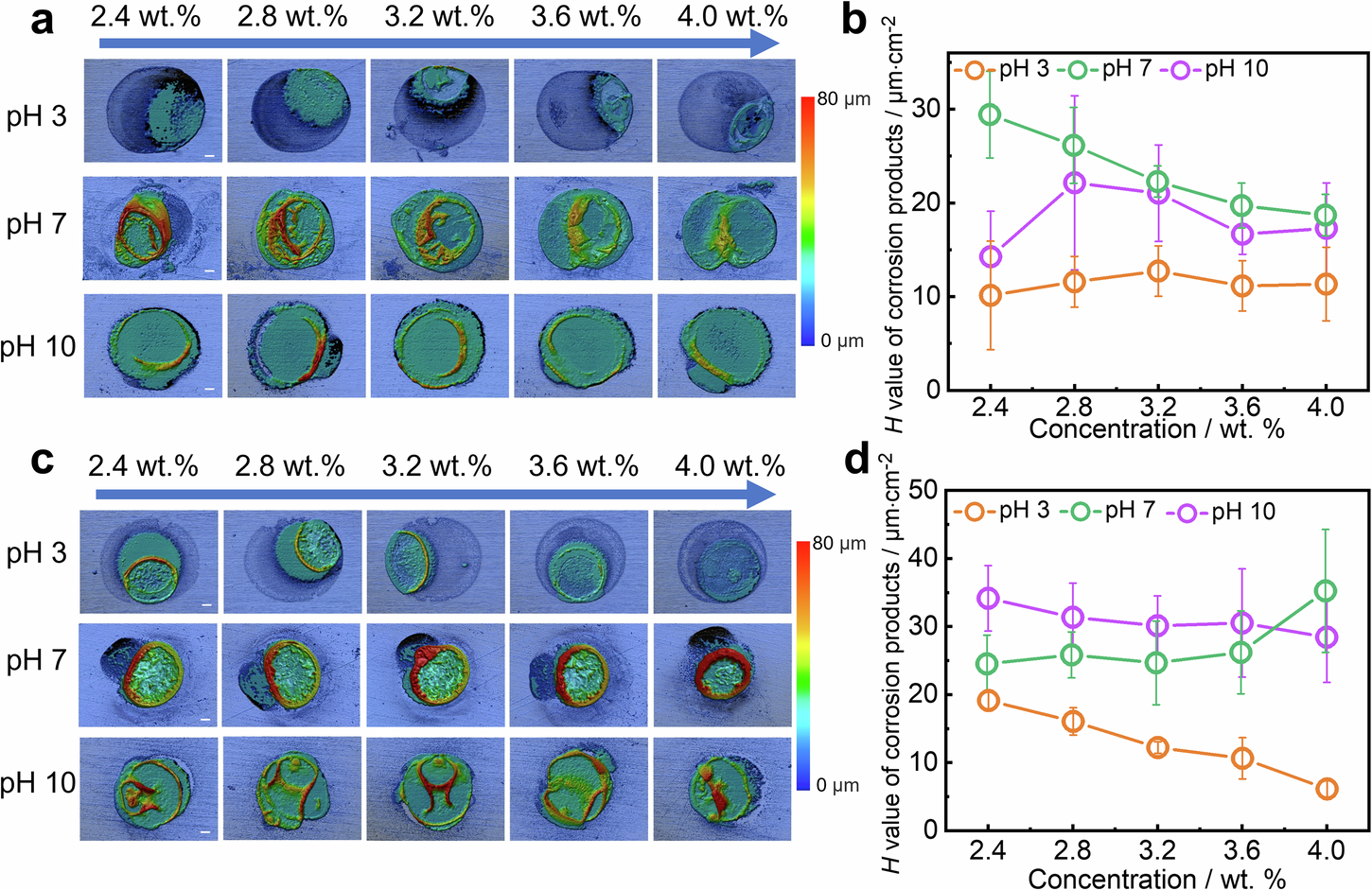

Fig. 2: CLSM results of the corrosion sites evolved in droplets at pH values of 3, 7, 10.

From: High-throughput investigation and finite element modelling of atmospheric corrosion on carbon steel under varying droplets

Fig. 2: CLSM results of the corrosion sites evolved in droplets at pH values of 3, 7, 10.

a 3D morphologies of the corrosion sites evolved in NaCl droplets with different concentrations and pH values, and b corresponding H value; c 3D morphologies of the corrosion sites evolved in Na2SO4 droplets with different concentrations and pH values, and d corresponding H value (Scale bar: 100 μm).
