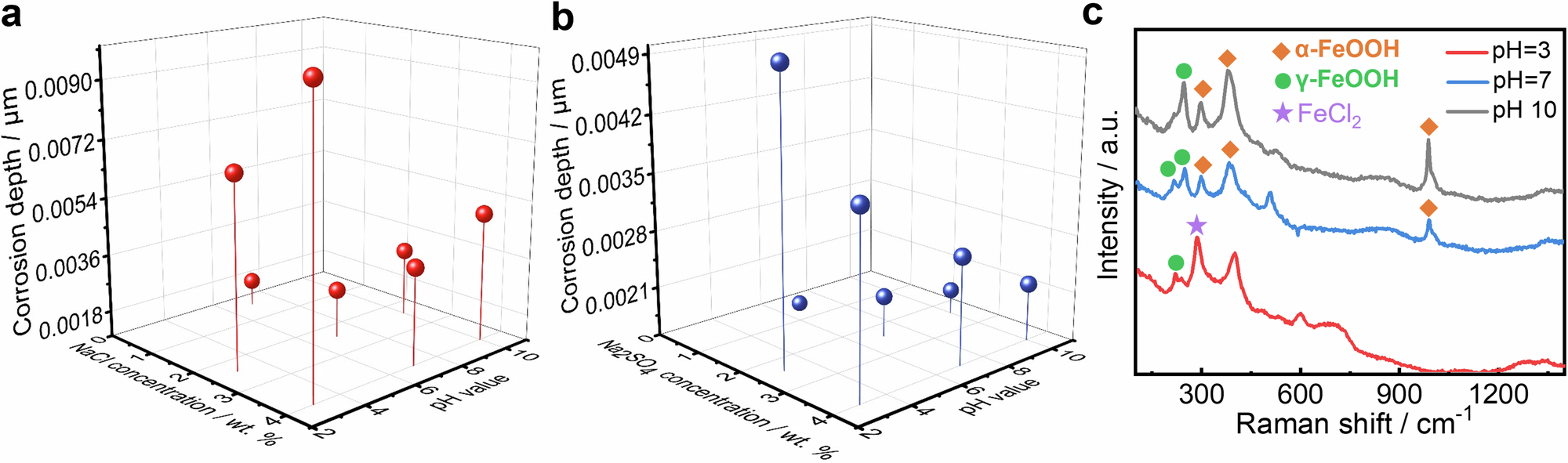

Fig. 7: Simulated corrosion depth of the carbon steel and corrosion products characterization in different pH droplets.

Corrosion depth of the carbon steel under a NaCl and b Na₂SO₄ droplets obtained by FEM simulations, c Raman characterization of the corrosion products in 4 wt.% NaCl droplets with different pH values.
