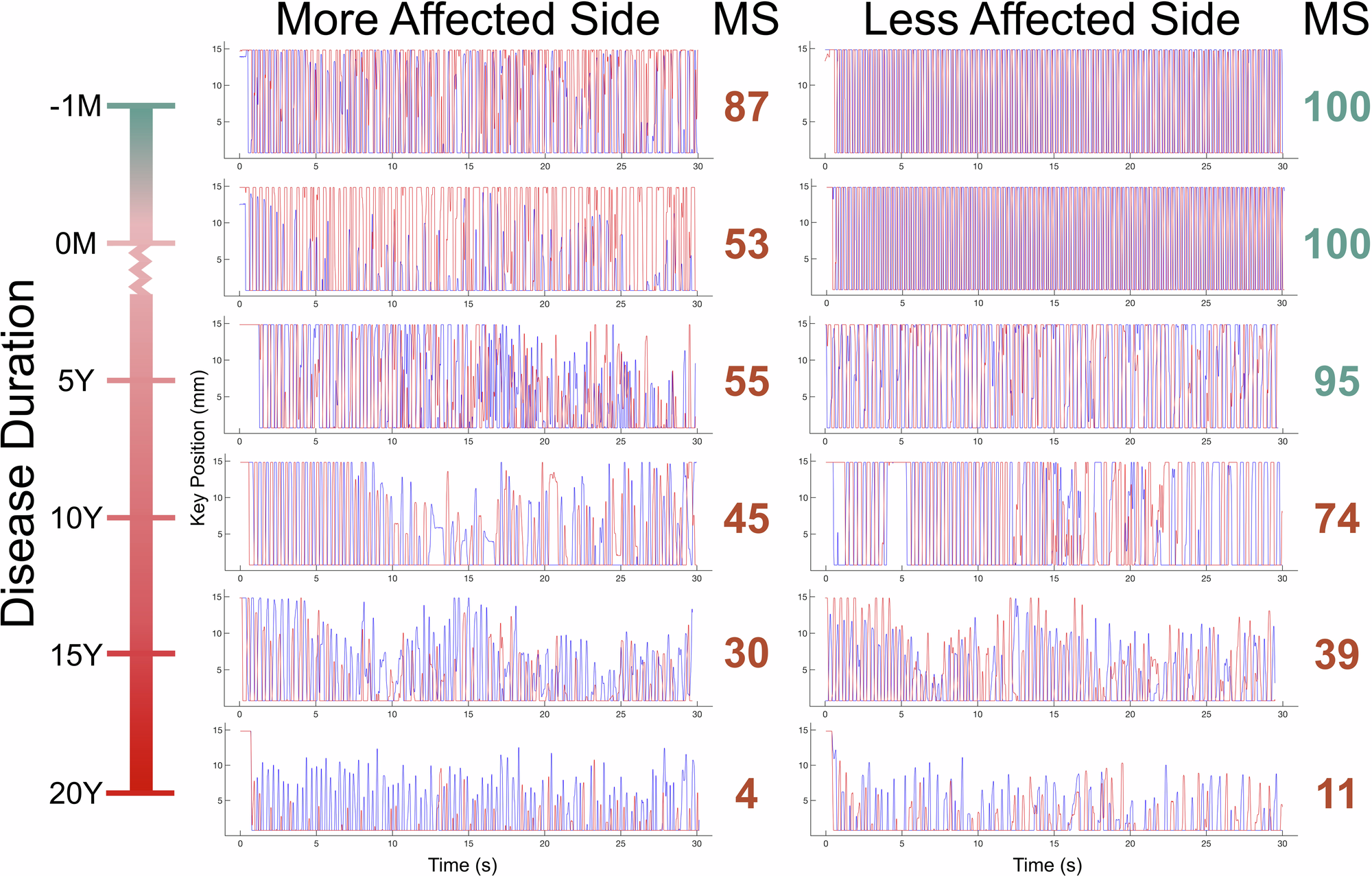

Fig. 3: QDG across the range of PD duration.
From: Remote real time digital monitoring fills a critical gap in the management of Parkinson’s disease
QDG traces and Mobility Scores (MS) from the more and less affected sides of representative participants with different durations of PD (−1 month, 0 months, 5, 10, 15, and 20 years). Each QDG trace displays the amplitude of lever strikes (millimeters) over time (seconds); the blue and red strikes represent the index and middle fingers on right hand traces (vice versa on left hand). A normal MS (>92) is in green and abnormal in red. The –1- and 0-month traces are off therapy, while 5- to 20-year traces are on therapy.
