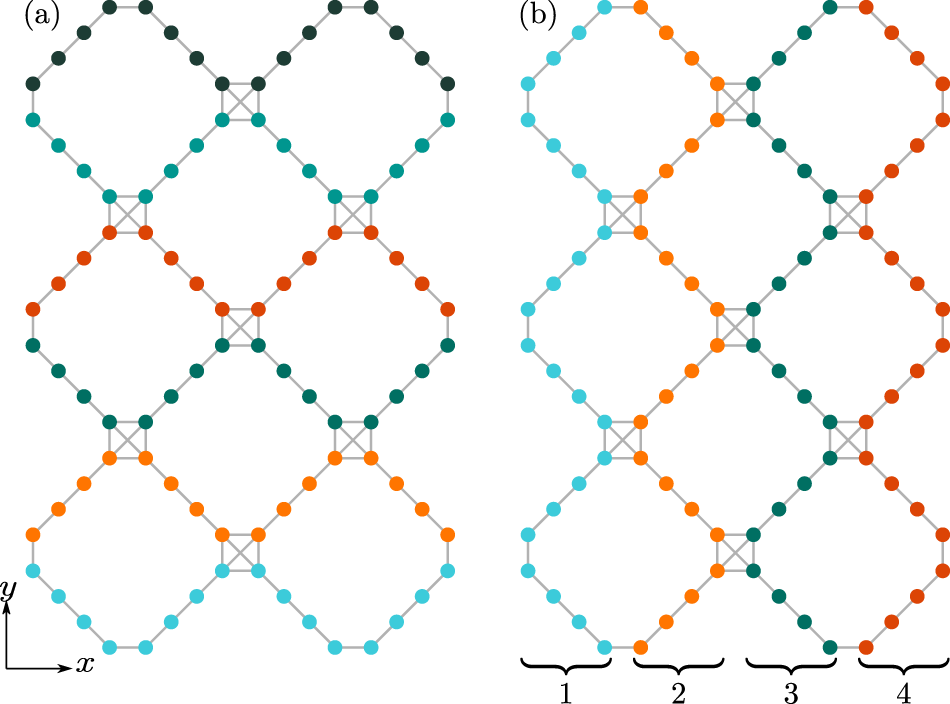

Fig. 7: Labeling of the proposed architecture.

The generalized a rows and b columns m = 4, d_x = 2 and d_y = 3 are shown. Qubits of the same color are in the same row or column. Lines indicate between which qubits a two-qubit gate can be applied.
