Fig. 4: FB3-12 modulates the gut microbiota structure of allergy mice. | npj Science of Food

Fig. 4: FB3-12 modulates the gut microbiota structure of allergy mice.

From: Bifidobacterium bifidum FB3-12 attenuates ovalbumin-induced allergic diseases by enhancing intestinal barrier function and regulating gut microbiota

Fig. 4

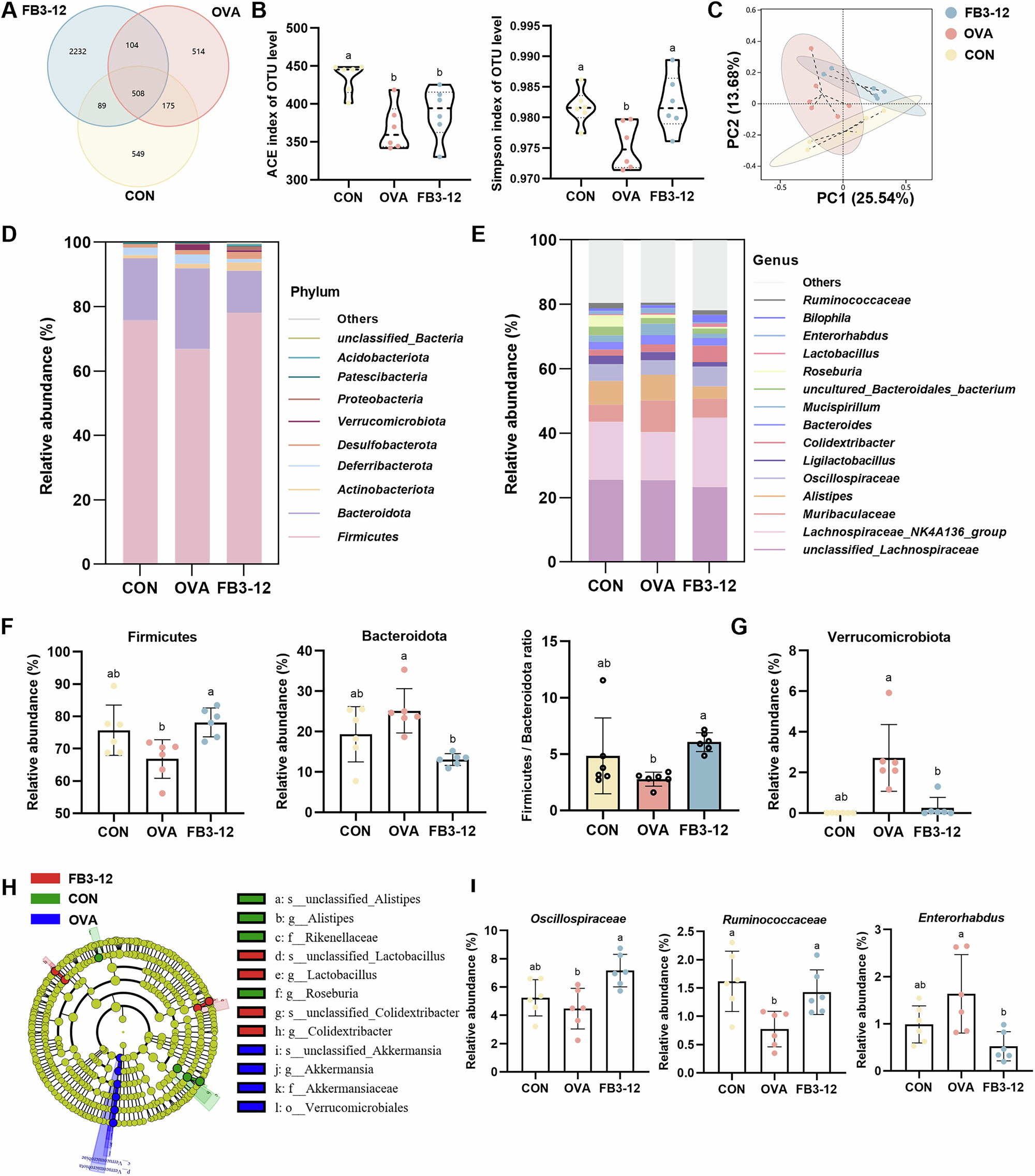

A Venn diagrams. B Alpha diversity was presented as the ACE and Simpson index. C PCoA on the OUT level. D Top 10 annotated phyla. E Top 15 annotated genera. F, G Phylum-level relative abundance of microbial taxa with significant differences. H LEfSe analysis. I Genus-level relative abundance of microbial taxa with significant differences. Data are shown as the mean ± SD (n = 6).
