Fig. 10: Metabolomic of livers-on-a-chip: Se640ng/mL + Cd40 μg/mL group vs Cd40 μg/mL group. | npj Science of Food

Fig. 10: Metabolomic of livers-on-a-chip: Se640ng/mL + Cd40 μg/mL group vs Cd40 μg/mL group.

From: Application of HepG2-derived organoid and organ-on-a-chip platforms in elucidating selenium-mediated protection against cadmium-induced liver dysfunction

Fig. 10

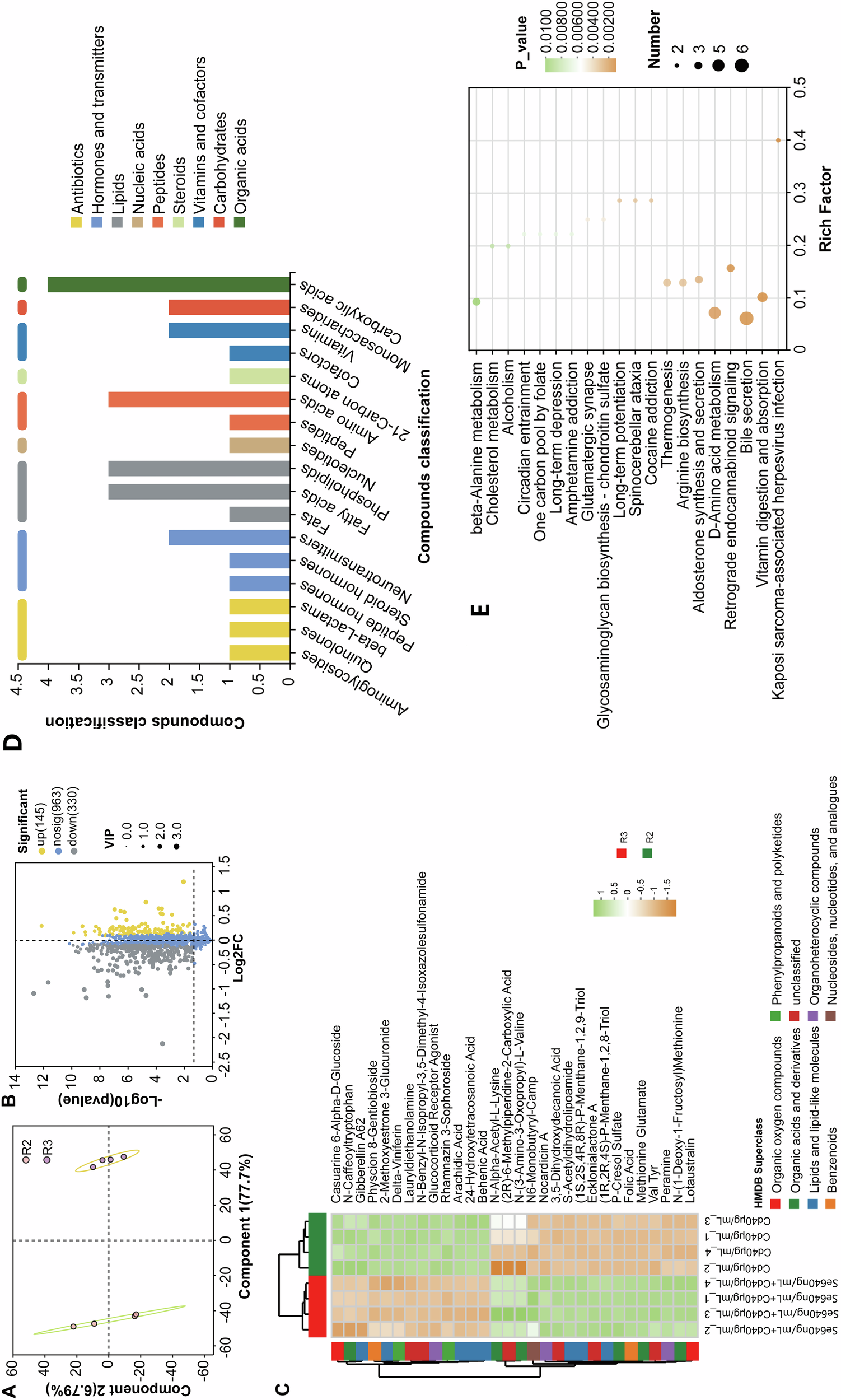

Metabolic effects of high-concentration selenium on cadmium-exposed HepG2 livers-on-a-chip. A PLS-DA analysis; B volcano plot of differentially expressed metabolites between the Cd40 μg/mL group and Se640 ng/mL + Cd40 μg/mL group; C expression profile of significantly differentially expressed metabolites between the Cd40 μg/mL group and Se640 ng/mL + Cd40 μg/mL group. D Classification of significantly differentially expressed metabolites between the Cd 40 μg/mL group and 640 ng/mL + Cd 40 μg/mL group; E KEGG metabolic pathway enrichment of the Cd 40 μg/mL group and 640 ng/mL + Cd 40 μg/mL group.
