Fig. 7: Histopathologic image of HepG2-derived liver organoids. | npj Science of Food

Fig. 7: Histopathologic image of HepG2-derived liver organoids.

From: Application of HepG2-derived organoid and organ-on-a-chip platforms in elucidating selenium-mediated protection against cadmium-induced liver dysfunction

Fig. 7

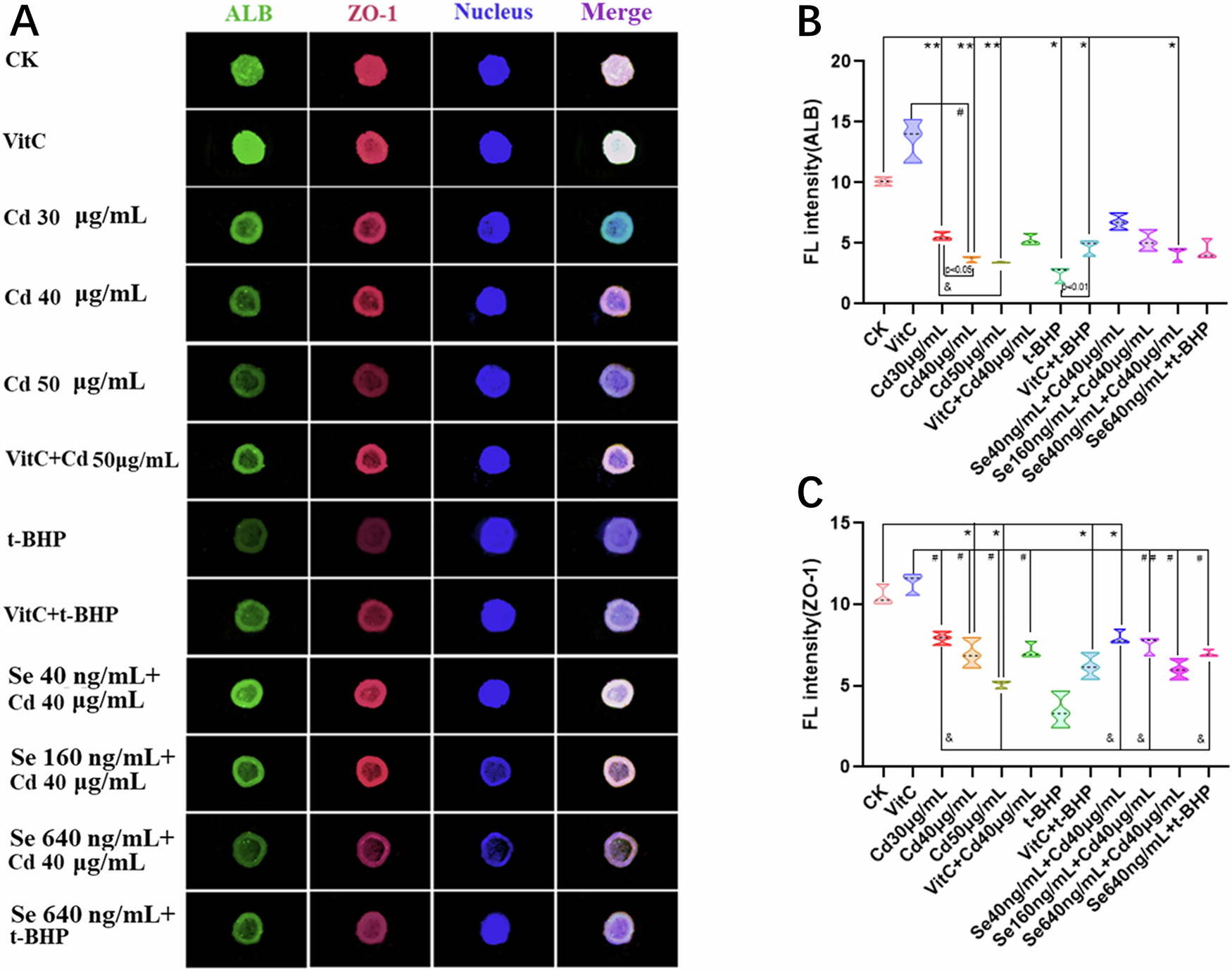

A The immunofluorescence staining images of liver organoids, where red indicates ZO-1, green represents ALB, and blue denotes cell nucleus; B the fluorescence quantification level of ALB; C the fluorescence quantification level of ZO-1 (n = 3). Compared with control group, *p < 0.05, **p < 0.01; compared with Vit C group, #p < 0.05, ##p < 0.01; compared with Cd 50 μg/mL group, &p < 0.05.
