Fig. 2: Plasmid architecture profiles across 1395 S. aureus strains.

From: Plasmidomic landscape of Staphylococcus aureus and the emergence of a CC5 subclade harboring the conjugative plasmid pSK41: implications for food safety and antimicrobial resistance

Fig. 2: Plasmid architecture profiles across 1395 S. aureus strains.

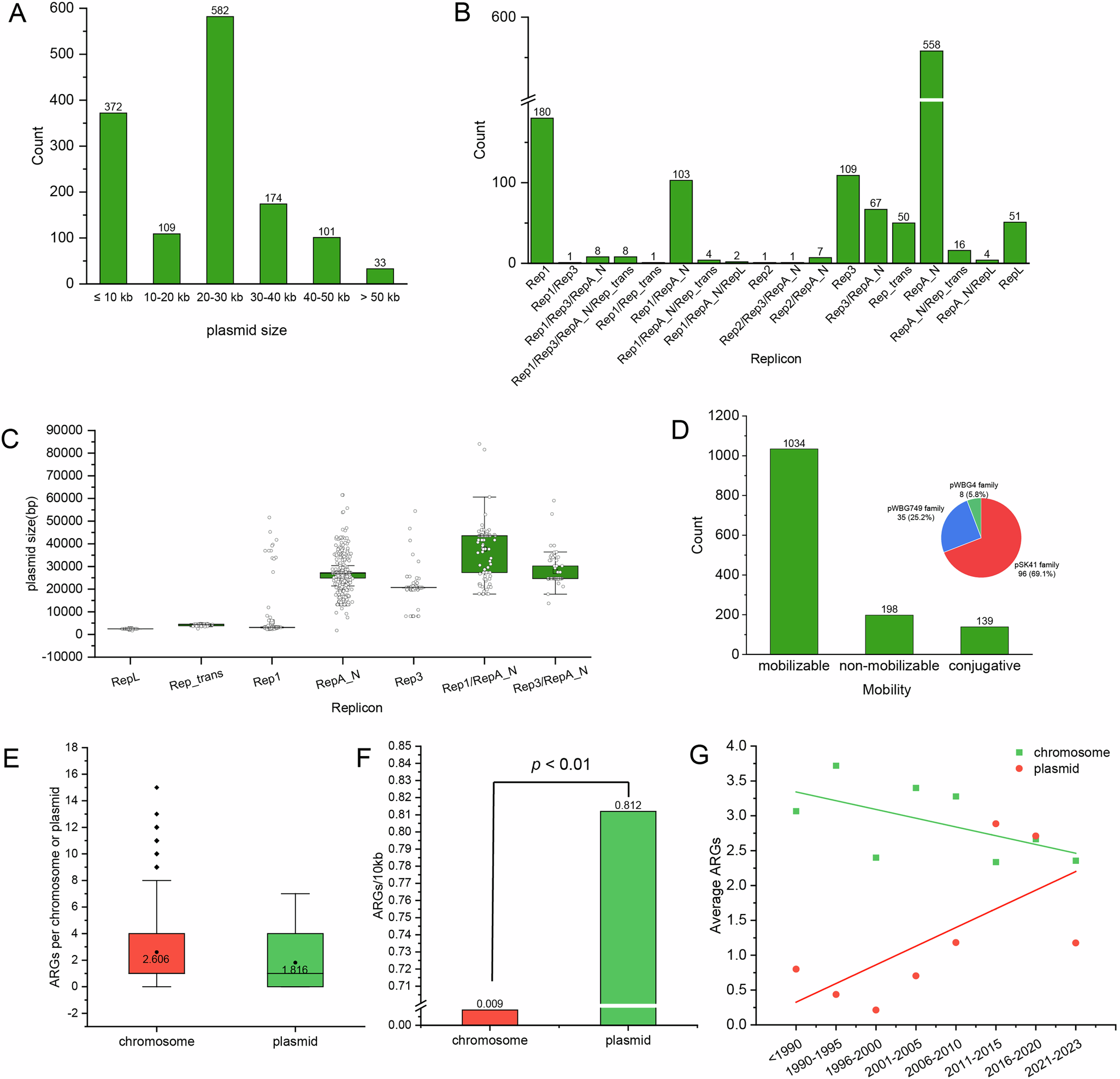

A Size distribution of plasmids; B Frequencies of different plasmid replicon types; C Replicon type and size correlation; D Distribution of plasmid mobility types, the inset pie chart shows the distribution of three conjugative plasmid families; E Comparison of the number of ARGs per chromosome vs. plasmid; F ARG density per 10 kb genomic length carried by chromosome and plasmids; G Temporal trend of average ARGs per chromosome and plasmid over time.
