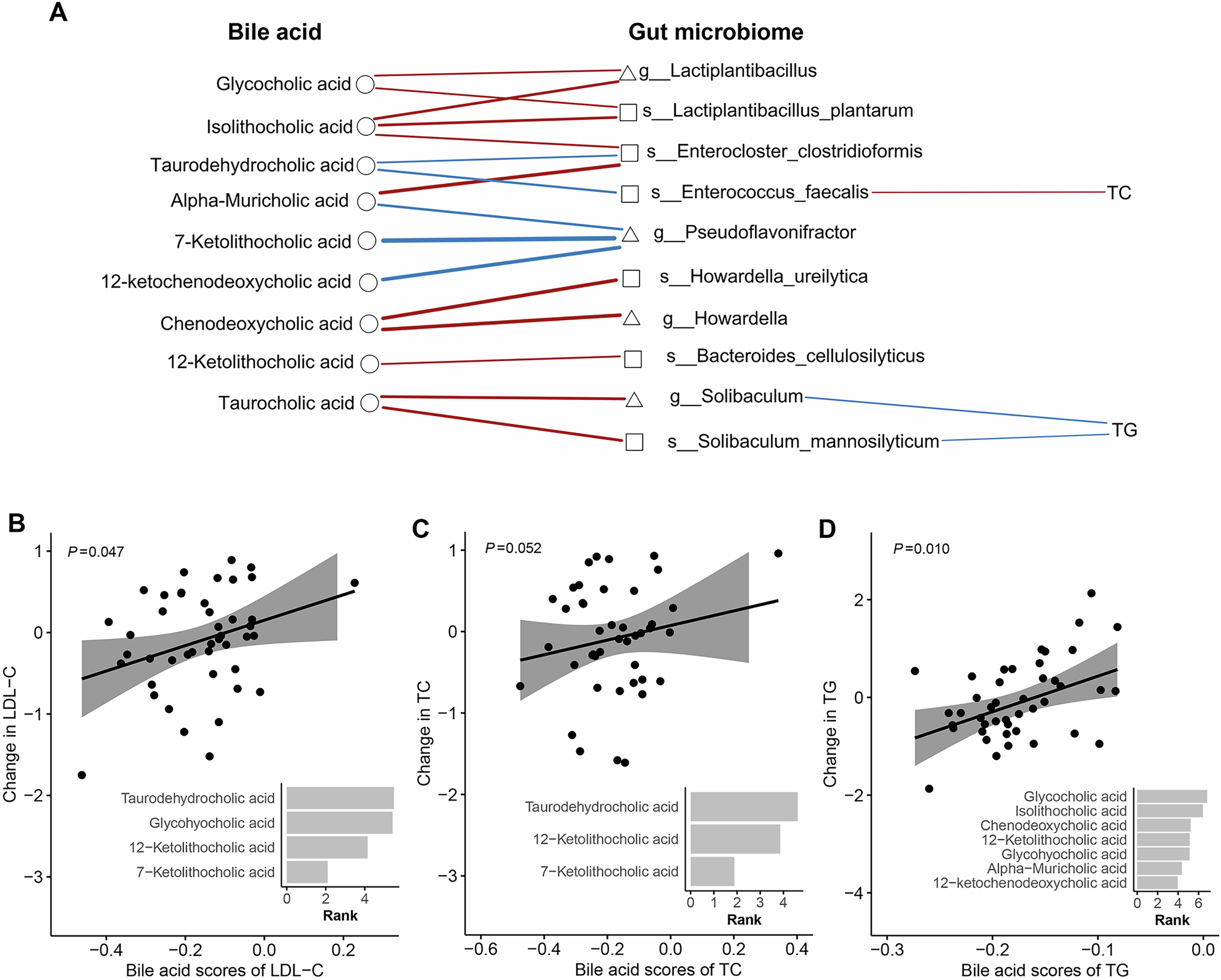

Fig. 2: Correlations among bile acids, gut microbiota, and blood lipid profiles in the LP group.

From: Effects of Lactiplantibacillus plantarum on moderate dyslipidemia before medication involving gut microbiota and host genetics

Fig. 2: Correlations among bile acids, gut microbiota, and blood lipid profiles in the LP group.

A Significant partial spearman’s correlations among changes in differential genera(Δ)or species(▯), bile acids, and changes in lipid profiles, adjusted for age and sex. The line colors indicate the direction of the association, with red for positive correlations and blue for negative correlations. The width of the line represents the strength of the association. B–D Fitted line plot of the linear regression between the measured lipid value (i.e., dependent variable) and bile acids scores of lipid profiles (i.e., independent variable). TC total cholesterol, TG triglyceride.
