Introduction

Since its emergence in 2019, Severe Acute Respiratory Syndrome Coronavirus 2 (SARS-CoV-2) has undergone continual genetic evolution, leading to the emergence of multiple variants1,2. Certain variants of SARS-CoV-2 are designated as Variants of Interest (VOI), Variants of Concern (VOC), Variants of High Consequence (VOHC), or Variants Being Monitored (VBM) based on specific attributes and characteristics that might necessitate public health interventions3,4. VOCs have displayed increased transmissibility, and virulence, reduced susceptibility to neutralization by antibodies from natural infection or vaccination, evasion of detection, or compromised efficacy against therapeutics5,6. As of January 2025, five VOCs have been recognized: Alpha, Beta, Gamma, Delta, and Omicron, with notable differences in transmissibility and capacity to escape vaccine immunity3. While multiple factors contribute to the evolution of SARS-CoV-27,8, some of the key contributors include the infidelity of the RNA polymerase, recombination, host immune pressure, and the virus circulation in animal reservoirs1,9.

Vaccination remains the most effective strategy to prevent severe infection, hospitalization and death from Coronavirus disease-2019 (COVID-19), caused by SARS-CoV-210,11. However, the emergence of novel variants that compromise vaccine immunity presents a significant challenge, requiring continuous evaluation of vaccine efficacy, and regular updates to maintain effectiveness12. The first-generation COVID-19 vaccines were designed using the spike (S) protein from the ancestral SARS-CoV-2 B.1 lineage13. Vaccine formulations based solely on the ancestral variant offered reduced protection against VOCs, particularly Beta, Gamma, Delta, and Omicron14,15,16. mRNA vaccines have rapidly undergone updates to confer protection against circulating variants of SARS-CoV-2, showcasing their effectiveness in addressing pandemics17. While updated booster shots have been developed to include additional S protein mRNAs to match circulating variants, they are often less effective since new variants have already emerged by the time, they are ready for deployment. Additionally, the limited coverage of booster shots post-primary vaccination contributes to vaccine ineffectiveness, leaving a significant portion of the global population vulnerable to reinfection18. Hence, there is a critical need to design antigens that provide broad-spectrum protection across SARS-CoV-2 variants. The existing mRNA vaccine formulations also face challenges of inadequate global supply, primarily stemming from the need for a high mRNA load to encode the spike protein of SARS-CoV-219,20,21. Therefore, it is crucial to develop next-generation mRNA vaccines, that offer broad protection against various SARS-CoV-2 variants while requiring lower doses and reduced dosage requirements.

Amplifying mRNA vaccines, distinguished by their dose-sparing attributes, offer an attractive solution to overcome limited supplies of conventional mRNA vaccines22,23. These vaccines carry their replicase (virus-encoded RNA-dependent RNA polymerase), facilitating amplification of the gene of interest following delivery into cells24,25. Two primary categories of amplifying mRNA vaccines are self-amplifying (SA mRNA) and trans-amplifying (TA mRNA)24,25. The key distinction lies in the administration of replicase, with TA mRNA vaccines delivering it as a separate mRNA (trans) from the one coding for the gene of interest, while SA mRNA vaccines deliver the replicase on the same mRNA (cis or self) as the gene of interest. Few studies have demonstrated the dose-sparing characteristics of SA mRNA vaccines for SARS-CoV-2 in animal models and human clinical trials26,27,28. Nevertheless, SA mRNA vaccines have limitations, including the substantial length of the construct which affects manufacturability, and the inability to be multiplexed25. Moreover, in SA mRNA vaccines, co-encoding the replicase and antigen in a single transcript precludes the use of nucleoside modifications, as they can inhibit replicase function and are not retained in subsequently amplified mRNA29. In contrast, the TA mRNA approach offers greater modification flexibility by decoupling the replicase and antigen-coding mRNAs. This approach allows for independent codon optimization of the mRNAs and selective nucleoside modification of the replicase mRNA to enhance translation and reduce innate immune activation30. The modularity of the TA mRNA system also enables efficient multiplexing and has demonstrated improved translation efficiency, addressing key challenges in mRNA vaccine development against SARS-CoV-223,31.

The S protein is the primary antigen in all major SARS-CoV-2 vaccines32. Existing SARS-CoV-2 vaccine formulations have employed the S protein sequence derived from clinical isolates, with minimal modifications aimed at enhancing protein expression and stability33. To improve vaccine efficacy, the adoption of a consensus spike protein sequence, synthesized using amino acid sequences conserved across multiple variants of SARS-CoV-2, represents a promising strategy for achieving comprehensive immunity. Vaccines based on consensus sequence antigen design have demonstrated success in addressing various viral infections, including Influenza, HIV, and Dengue34,35,36. Additionally, vaccine formulations based on consensus antigen design have shown broad cross-protection against other coronaviruses like Avian coronavirus and MERS-CoV, making this design a promising strategy for next-generation SARS-CoV-2 vaccines37,38.

To address the challenges of current vaccine strategies for SARS-CoV-2, we designed and evaluated a TA mRNA vaccine based on a consensus spike protein sequence, with the goal of developing a vaccine capable of generating robust, neutralizing immune responses across a broad range of SARS-CoV-2 variants while reducing the required antigenic dose. The immunogenicity of the TA mRNA vaccine formulations was rigorously evaluated in hACE2-expressing transgenic mice, offering promising and potentially dose-sparing alternatives to conventional mRNA vaccines. Additionally, this study investigated the replication dynamics of mRNA within the TA mRNA system using an epithelial cell model to gain deeper insights into its mechanism of action. This approach holds the potential to pave the way for next-generation vaccines that offer more robust, efficient, and broadly cross-protective immunity against emerging SARS-CoV-2 variants.

Results

Design of consensus SARS-CoV-2 spike antigen

A consensus sequence for the SARS-CoV-2 spike antigen was designed by aligning nine SARS-CoV-2 variants using Multiple Sequence Comparison by Log-Expectation (MUSCLE). The analysis revealed a high degree of sequence similarity among earlier variants (ancestral B.1 lineage to Delta), with percentage identities of 98.82% to 98.35%. The newer Omicron variants (BA.1 through BA.5) displayed greater amino acid variation, resulting in a lower percentage similarity of 96.63% to 97.17%. Figure 1A provides a detailed comparison of the spike protein sequences, including both the consensus sequence and the nine variants, highlighting the similarities and differences in amino acid sequences.

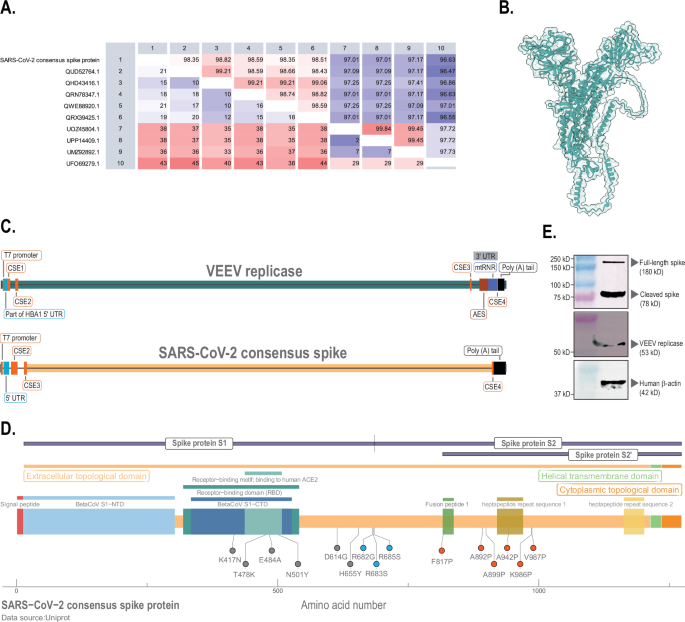

Fig. 1: Design aspects and protein expression of mRNA constructs in the trans-amplifying mRNA (TA mRNA) vaccine coding for SARS-CoV-2 consensus spike.
figure 1

A The table shows pairwise comparisons between SARS-CoV-2 spike protein sequences, comprising a consensus sequence and nine variants. The upper-right triangle (blue) displays percentage identity values, while the lower-left triangle (white) demonstrates the number of amino acid differences between sequences. The consensus spike used in this study exhibited close similarity (98.82% to 98.35%) to the earlier SARS-CoV-2 variants (ancestral to Delta) and lower similarity (96.63% to 97.17%) to the later variants (Omicron BA.1/BA.2 to Omicron BA.5, as tested in the study). B Structural superimposition of the SARS-CoV-2 consensus spike protein (white) with the SARS-CoV-2 spike protein 6XKL (teal) was performed. The sequence alignment score was 5565.7, and the Root Mean Square Deviation (RMSD) between 745 pruned atom pairs was 1.154 Å, indicating high structural similarity. C The TA mRNA vaccine comprises two mRNA constructs: one encoding the replicase derived from the Venezuelan Equine Encephalitis Virus (VEEV), preceded by the 5’UTR from the HBA1 gene and followed by the 3’UTR from AES and mtRNR1; and another encoding the SARS-CoV-2 consensus spike protein, with sequences flanking it coding for conserved sequence elements (CSEs) of the VEEV replicate. D A schematic representation of the SARS-CoV-2 consensus spike protein highlights the sequence modifications relative to the ancestral B.1 lineage spike protein (GenBank: QHD43416.1). Modifications shown in grey represent consensus changes derived from variant alignments. Additional modifications were introduced to stabilize the spike protein in its pre-fusion conformation: three alterations at the S1/S2 cleavage site (shown in green) and six proline substitutions (shown in red). E A549 cells were transfected with mRNAs encoding the TA mRNA vaccine. Four hours post-transfection, total protein was subjected to western blot analysis using specific antibodies to detect protein expression. The consensus spike protein was observed in both full-length (180 kDa) and cleaved (78 kDa) forms, while the replicase appeared as a 53 kDa protein. Beta-actin (42 kDa) served as a reference control for the cells (Lane 1: Marker, Lane 2: Cell lysate).

Full size image

Structural predictions for the SARS-CoV-2 consensus spike protein were generated using the AlphaFold 3 server program39. This predicted structure was then compared to the spike protein represented by Protein data bank (PDB) ID 6XKL. The sequence alignment achieved a score of 5565.7, and the Root Mean Square Deviation (RMSD) between the consensus spike protein and the 6XKL structure was 1.154 Å, based on 745 pruned atom pairs. The low RMSD value predicts a high structural similarity between the consensus spike protein and the 6XKL structure, supporting the functional relevance of the consensus spike as a vaccine candidate. Figure 1B illustrates the structural superimposition of the SARS-CoV-2 consensus spike protein with the 6XKL spike protein.

Comparative analysis of the consensus spike protein sequence revealed six amino acid differences relative to the B.1 lineage spike protein. Most of these differences were located in the receptor-binding domain (RBD) and included mutations such as K417N, T478K, E484A, and N501Y. Additional mutations at the S1/S2 cleavage site (D614G) and the furin cleavage site (H655Y) were also noted. To enhance the stability of the spike protein in its pre-fusion state, additional substitutions were introduced at the S1/S2 cleavage site (R682G, R683S, R685S), fusion peptide 1 (F817P), heptapeptide repeat sequence 1 region (A892 P, A899P, A942P) and the conventionally used 2P mutations (K986P and V987P)40. Figure 1D depicts all the amino acid changes and substitutions introduced in the consensus spike protein.

Design of trans-amplifying mRNA vaccine expressing consensus SARS-CoV-2 spike antigen

The TA mRNA vaccine was engineered utilizing two distinct mRNA constructs: one encoding the replicase from Venezuelan equine encephalitis virus (VEEV) and the other encoding the gene of interest. The VEEV replicase elements were strategically flanked at both termini of the mRNA coding for the gene of interest to enhance targeted amplification and replication by the VEEV replicase. In alignment with the methodology proposed by Beissert et al. for the validation of the TA mRNA design, we selected nano-luciferase as a quantifiable gene of interest23. Following the transfection of 293 T cells with mRNAs coding for nano-luciferase and VEEV replicase, we noted a significant increase (p = 0.0033, t-test) in the luciferase output in cells co-transfected with both the replicase and nano-luciferase compared to those receiving nano-luciferase alone. The log2 fold increase in luciferase expression of 1.62 ± 0.08 observed is likely biologically significant and validates the design of the TA mRNA constructs (Supplementary Figure 1).

Upon successfully validating the design, we formulated the SARS-CoV-2 TA mRNA vaccine by incorporating mRNAs coding for VEEV replicase and the consensus spike protein. Figure 1C shows the design of the mRNA constructs utilized in the vaccine. In vitro transcription, capping, and purification of the mRNA constructs were conducted, after which the mRNAs were transfected into A549 cells. Cell lysates were collected four hours post-transfection and subjected to analysis via western blot. The consensus spike protein was identified in both its full-length (180 kDa) and cleaved (78 kDa) forms. The VEEV replicase protein was detected as a band at 53 kDa. β-actin (42 kDa) served as the reference control for protein expression analysis. Figure 1E presents the western blot results of the mRNAs used in the vaccine. Subsequently, following the studies by Besisert et al. and Schmidt et al., where the TA mRNA vaccine was evaluated in vitro at two time points, we performed western blots at 4 h and 12 h following the co-transfection of the TA mRNA constructs (VEEV replicase and Consensus SARS-CoV-2 spike)23,31. Although we encountered limitations in the quantity of transfectable SARS-CoV-2 input mRNA in in vitro experiments, we successfully showed an increase in SARS-CoV-2 protein content at the 12-hour mark, confirming the design of the TA mRNA vaccine constructs (Supplementary Figure 2).

mRNA vaccination induces SARS-CoV-2 neutralizing antibody responses in mice

Three distinct vaccine formulations were developed. One vaccine formulation consisted of 20 μg/dose of standard mRNA encoding the SARS-CoV-2 consensus spike protein, while the other two vaccine groups employed trans-amplifying designs. One of the trans-amplifying vaccines contained 0.5 μg/dose of SARS-CoV-2 consensus spike RNA and 20 μg/dose of VEEV replicase mRNA (TA mRNA-high dose or TAHD). The spike mRNA composition in the TA mRNA-high dose is 40 times less than the conventional mRNA vaccine. Another trans-amplifying vaccine formulation (TA mRNA-low dose or TALD) was made with 400 times lesser spike mRNA composition, resulting in 0.05 μg/dose of SARS-CoV-2 consensus spike RNA and 20 μg/dose of VEEV replicase mRNA. The vaccines were tested for immunogenicity in mice. Mice were organized into four groups, each consisting of six animals. Phosphate-buffered saline (PBS) was used for mock vaccination in the control group of mice. All mice were vaccinated twice, with an interval of two weeks between the doses. Antibody analyses were conducted on blood samples collected two weeks after the second dose.

All mRNA-vaccinated mice (Consensus spike mRNA group and TA mRNA groups) developed strong neutralizing antibody responses after two immunizations, with the mock-vaccinated (PBS) mice showing no detectable responses (Figs. 2, 3). The log2 median live virus neutralization (VN) titers were 7.32 (95% CI: 6.70–8.28) for the 20 μg consensus spike mRNA group, 6.82 (95% CI: 6.25–7.40) for the high-dose TA mRNA group, and 4.32 (95% CI: 4.11 to 5.20) for the low-dose TA mRNA group (Fig. 2C). Statistical analysis with the Kruskal-Wallis test revealed significant differences in serum neutralization titers among the groups (p = 0.0014). The neutralization titers of the high-dose TA mRNA group were comparable to those of the 20 μg consensus spike mRNA group with no significant difference (p = 0.14), while both the consensus spike mRNA and high-dose TA mRNA groups had significantly higher (p = 0.0037 and p = 0.0039, respectively) titers than the low-dose TA mRNA group.

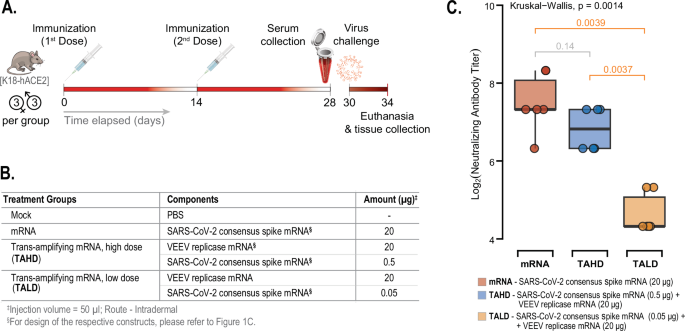

Fig. 2: Experimental design and virus neutralization titers in hACE2-expressing transgenic mice immunized with conventional or trans-amplifying mRNA vaccines.
figure 2

A Overview of the timeline for immunization, blood collection, and challenge procedures in the experimental groups (n = 6 per group, 3 males and 3 females). B Description of the treatment groups, including details of the administered vaccines (components, mRNA dosage, volume, and route). C Results of the virus neutralization assay using the SARS-CoV-2 Delta variant (B.1.617.2) indicated differences between the treatment groups (p = 0.0014, Kruskal-Wallis Test followed by Wilcoxon Rank Test for pair-wise comparison). Serum neutralization titers from mice receiving 0.5 μg of consensus spike mRNA (mRNA) with 20 μg of replicase mRNA (Trans-amplifying mRNA: high dose, TAHD) were comparable to those from mice receiving 20 μg of consensus spike mRNA (mRNA) (p = 0.14, Kruskal-Wallis Test). Both the TAHD and mRNA groups showed significantly higher titers compared to the Trans-amplifying mRNA: low dose group (TALD) (p = 0.0037 and p = 0.0039, respectively, Kruskal-Wallis Test). The plot shows individual neutralization titers with median values and 95% confidence intervals. These results demonstrated that TAHD, with an mRNA antigen load 40 times lower, could generate neutralizing antibody titers equivalent to those produced by conventional mRNA without trans-replicase. (Note: Mock-vaccinated mice did not produce any detectable neutralizing antibody responses; data not shown).

Full size image

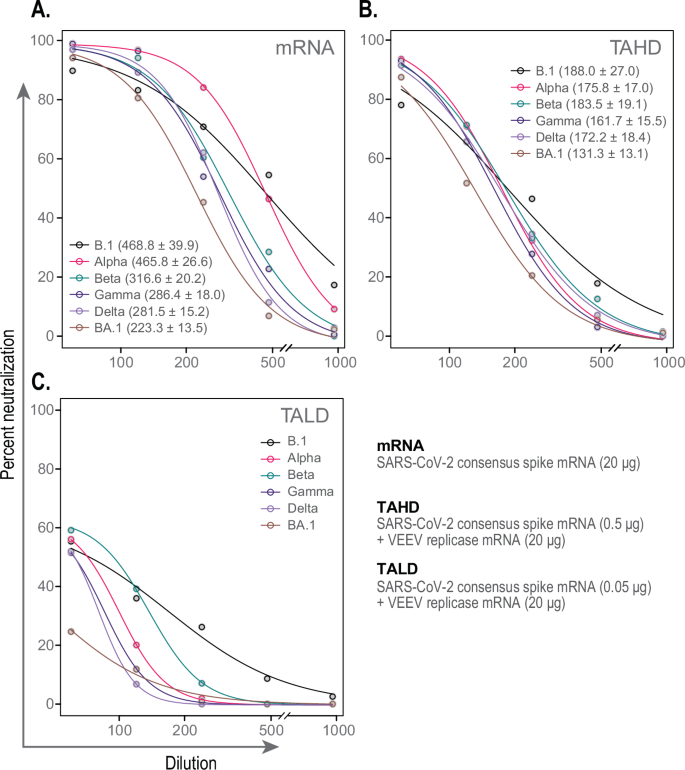

Fig. 3: Pseudovirus neutralizing titers of serum samples collected from vaccinated mice.
figure 3

Transgenic hACE2-expressing mice, (n = 6 per group, 3 males and 3 females), were immunized with different mRNA formulations administered intradermally at two-week intervals. The mRNA group received 20 μg of consensus spike mRNA (mRNA), the Trans-amplifying mRNA: high dose (TAHD) received 0.5 μg of consensus spike mRNA combined with 20 μg of replicase mRNA, and the Trans-amplifying mRNA: low dose (TALD) group received 0.05 μg of consensus spike mRNA with 20 μg of replicase mRNA. Mock-vaccinated mice received an equivalent volume (50 μL of phosphate-buffered saline, PBS). Serum samples were collected on day 28 and subjected to a neutralization assay using various SARS-CoV-2 pseudoviruses. The effective dilution 50% (ED50) values were derived from the dose-response curves using a four-parameter Hill equation to assess pseudovirus neutralization efficacy. A Serum from mice immunized with 20 μg of consensus spike mRNA exhibited antibody titers against all variants, with ED50 values (serum dilution factor) ranging from 223.3 ± 13.5 (Omicron BA.1) to 468.8 ± 39.9 (B.1 ancestral variant). B Mice immunized with a ‘40-fold lower dose of consensus spike mRNA’ (0.5 μg) in combination with VEEV replicase (TAHD) also demonstrated antibody titers against all SARS-CoV-2 pseudovirus variants, with ED50 values ranging from 131.3 ± 13.1 (Omicron BA.1) to 188.0 ± 27.0 (B.1 ancestral variant). C Immunization with a low dose of consensus spike mRNA (0.05 μg) combined with VEEV replicase (TALD) resulted in minimal neutralization efficacy. ED50 values were not calculated for this group, as the highest neutralization responses against all pseudovirus variants were not substantial enough to compute ED50 values with a high degree of confidence.

Full size image

Serum samples with measurable levels of VN titers were assessed for the breadth of their antibody responses through neutralization tests with SARS-CoV-2 pseudoviruses expressing spike proteins from multiple variants. The effective dilution 50% (ED50) values indicated high neutralization efficacy for the consensus spike mRNA group: 468.8 ± 39.9 (B.1), 465.8 ± 26.6 (Alpha), 316.6 ± 20.2 (Beta), 286.4 ± 18.0 (Gamma), 281.5 ± 15.2 (Delta), and 223.3 ± 13.5 (Omicron BA.1). The high-dose TA mRNA group (0.5 μg spike mRNA) showed more uniform ED50 values across variants: 188.0 ± 27.0 (B.1), 175.8 ± 17.0 (Alpha), 183.5 ± 19.1 (Beta), 161.7 ± 15.5 (Gamma), 172.2 ± 18.4 (Delta), and 131.3 ± 13.1 (Omicron BA.1). While neutralization was observed in the low-dose TA mRNA group (0.05 μg spike mRNA), the values were low, and the dose-response curves could not be reliably fitted. Figure 3 displays the dose-response curves and ED50 values for vaccinated mice against SARS-CoV-2 pseudoviruses.

The trans-amplifying mRNA vaccine achieves comparable efficacy to conventional mRNA vaccines using a substantially lower spike antigen dose

The efficacy of the vaccine formulations in reducing viral load was evaluated by quantifying viral RNA levels and infectious virus titers in the lungs of vaccinated and control mice post-SARS-CoV-2 challenge. We estimated the SARS-CoV-2 viral load in mice by measuring the N1 gene copy numbers and 50% tissue culture infective dose (TCID50) from lung tissue. The Log10 median N1 gene copy numbers were 5.50 (95% CI: 5.07–6.23) in the mock-vaccinated group, 3.10 (95% CI: 1.85–4.30) in mice vaccinated with 20 μg of consensus spike mRNA (2 mice did not show detectable N1 copy number), 4.53 (95% CI: 4.39–4.76) in mice vaccinated with TA mRNA-high dose, and 5.11 (95% CI: 4.95–5.25) in mice receiving the TA mRNA-low dose (Fig. 4A). The Kruskal-Wallis test indicated a significant difference in N1 gene copy numbers among the groups (p = 0.0004). Post-hoc Wilcoxon rank-sum tests revealed that N1 copy numbers were significantly lower in mice vaccinated with consensus spike mRNA (p = 0.0095) and TA mRNA-high dose (p = 0.0022) compared to the mock-vaccinated group. The N1 copy numbers in the TA mRNA-low dose group did not differ significantly from those in the mock-vaccinated group (p = 0.065). The N1 copy numbers in the consensus spike mRNA group were significantly lower than those in both the TA mRNA-high dose (p = 0.0095) and the TA mRNA-low dose (p = 0.0095) groups. Additionally, the TA mRNA-high dose group had significantly lower N1 copy numbers compared to the TA mRNA-low dose group (p = 0.0022).

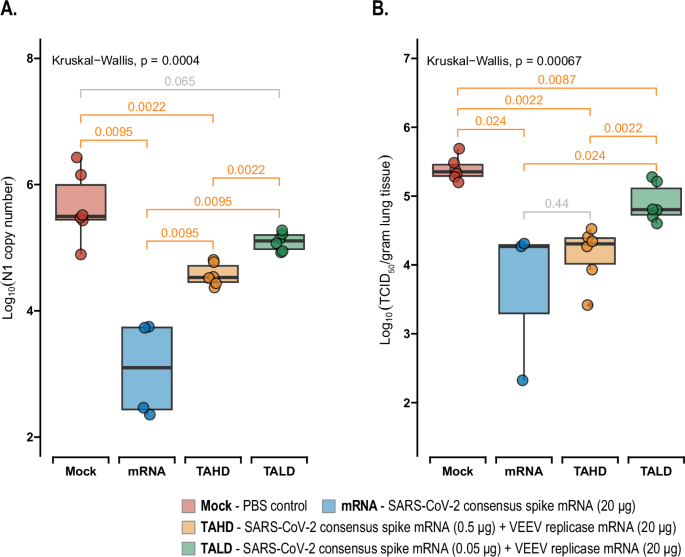

Fig. 4: Assessment of viral load in mice following SARS-CoV-2 BA.1 challenge post-vaccination.
figure 4

Transgenic hACE2-expressing mice (n = 6 per group; 3 males and 3 females) were vaccinated twice, two weeks apart, intra-dermally with either PBS (mock), SARS-CoV-2 consensus mRNA (mRNA), or two different doses of a trans-amplifying mRNA vaccine: high dose (TAHD) or low dose (TALD). Two weeks post-vaccination, mice were challenged intra-nasally with 104 TCID50 of SARS-CoV-2 Omicron BA.1. Four days after the challenge, lung tissues were collected, homogenized, and analyzed for the presence of SARS-CoV-2 N1 viral gene by qPCR and for infectious virus titers by TCID50 assay. A qPCR results showed a significant difference in N1 copy numbers among the groups (p = 0.0004, Kruskal-Wallis test followed by Wilcoxon Rank Test for pair-wise comparison). The mock group exhibited the highest N1 load, with significantly lower viral loads observed in the mRNA group (p = 0.0095) and TAHD group (p = 0.0022). No significant difference in viral load was found between the mock and TALD groups (p = 0.065). The mRNA group had the lowest N1 levels compared to both the TAHD group (p = 0.0095) and the TALD group (p = 0.0095). Additionally, the TAHD group had lower N1 levels compared to the TALD group (p = 0.022), indicating a dose-dependent response. However, the presence of the N1 gene does not necessarily indicate live virus presence, underscoring the importance of the TCID50 assay as a true measure of infectious viral load. B Infectious virus titers from homogenized lung samples showed a significant difference among the groups (p = 0.00067, Kruskal-Wallis test followed by Wilcoxon Rank Test for pair-wise comparison). The mock group had the highest levels of infectious virus, significantly differing from all other groups: mRNA (p = 0.034), TAHD (p = 0.022), and TALD (p = 0.0087). The mRNA group had infectious virus levels comparable to the TAHD group (p = 0.44), demonstrating that the TAHD vaccine was able to reduce the challenge virus to levels similar to those achieved with the mRNA vaccine, despite having 40 times less antigen mRNA load. The mRNA group had lower infectious virus levels compared to the TALD group (p = 0.024), and the TAHD group also had lower levels than the TALD group (p = 0.0022). The box plots display individual values with median values (thick black line in the middle) and 95% confidence intervals.

Full size image

Log10 median TCID50 titers per gram of lung tissue were calculated as 5.35 (95% CI: 5.21–5.57) in the mock-vaccinated group, 4.27 (95% CI: 0.81–6.45) in mice vaccinated with 20 μg of consensus spike mRNA (3 mice showed undetectable virus titers), 4.31 (95% CI: 3.72–4.58) in mice vaccinated with TA mRNA-high dose, and 4.80 (95% CI: 4.61–5.19) in mice receiving TA mRNA- low dose (Fig. 4B). Kruskal-Wallis test followed by Wilcoxon Rank Test for pair-wise comparison demonstrated significant reductions in TCID50 titers in mice vaccinated with consensus spike mRNA (p = 0.024), as well as those receiving either TA mRNA-high dose (p = 0.0022) or TA mRNA-low dose (p = 0.0087) compared to the mock-vaccinated group. There was no significant difference in TCID50 titers between mice vaccinated with consensus spike mRNA and those receiving TA mRNA-high dose (p = 0.44). However, the consensus spike mRNA group had significantly lower titers than the TA mRNA-low dose group (p = 0.024); And the TA mRNA high-dose group exhibited significantly lower titers compared to the TA mRNA-low dose group (p = 0.0022).

Overall, administration of either the consensus spike mRNA or TA mRNA-high dose vaccine resulted in a greater than 1 Log10 (>10-fold) reduction in lung viral titers, as measured by both qPCR (N1 gene copy number) and TCID50 assays, at day 4 post-challenge. Although discrepancies were observed between qPCR and TCID50 measurements, the TCID50 assay, which quantifies infectious virions and more accurately reflects viral burden, demonstrated comparable reductions across both vaccine groups41. Notably, this level of reduction was achieved with the high-dose TA mRNA vaccine despite containing 40 times less antigen mRNA dose than the standard mRNA formulation (Fig. 4A, B).

VEEV replicase suppresses anti-viral immune gene responses post-transfection in epithelial cells

Transcriptomic analysis of A549 cells transfected with VEEV replicase mRNA and SARS-CoV-2 mRNA (treatment group, n = 3) versus cells transfected with unrelated mRNA and SARS-CoV-2 mRNA (control group, n = 3) revealed significant alterations (p-value cut-off, p < 0.05) in gene expression. At both 4- and 12 h post-transfection, a notable downregulation (log2 fold change cut-off, ± 2.00) of interferon-stimulated genes (ISGs) and other immune-related genes, including IFNL2, IFNL3, IFNB1, CCL5, RAET1L, KRT17, and SEMA3D, was observed (Fig. 5A, B). Specifically, 28 genes were downregulated at 4 h and 57 genes at 12 h, with 20 genes consistently downregulated at both time points (Fig. 5C). Among these, key ISGs such as CCL5, IFNB1, IFNL1, IFNL2, IFNL3, and IFNL4 showed sustained suppression throughout the treatment (Fig. 5D). Gene Ontology (GO) term enrichment analysis indicated that immune response-related pathways were consistently suppressed at both 4- and 12- h, with significant suppression observed in anti-viral pathways, including type I interferon signaling, serine phosphorylation of STAT proteins, and cytokine-mediated signaling at 12 h (Fig. 5E, F).

Fig. 5: Transcriptomic analysis of A549 cells transfected with VEEV replicase mRNA and SARS-CoV-2 mRNA (treatment group, n = 3) compared to cells transfected with an unrelated mRNA and SARS-CoV-2 mRNA (control group, n = 3).
figure 5

A, B Volcano plots showing differentially expressed genes at 4 h (A) and 12 h (B) post-transfection. Cut-off values of log2 fold change and p-value were set to ± 2.00 and 0.05. Significant downregulation of interferon-stimulated genes (ISGs) and other immune-related genes, such as IFNL2, IFNL3, IFNB1, CCL5, RAET1L, KRT17, and SEMA3D, were observed. C Venn diagram comparing the overlap of suppressed genes at 4 h and 12 h post-transfection, in the treatment group. A total of 20 genes were consistently downregulated at both time points, with 57 genes uniquely suppressed at 12 h and 28 genes at 4 h. D Combined dot and line plots demonstrating the expression of selected key ISGs (CCL5, IFNB1, IFNL1, IFNL2, IFNL3, IFNL4) over time, showing sustained suppression at 12 h post-transfection in the cells transfected with the treatment group (indicated by red lines) compared to the control group (blue lines). E, F Gene Ontology (GO) term enrichment analysis of suppressed genes at 4 h (E) and 12 h (F). Pathways related to immune response remained consistently suppressed at both time points. At 12 h, significant suppression was observed in crucial pathways involved in anti-viral responses, including type I interferon signaling, serine phosphorylation of STAT proteins, and cytokine-mediated signaling. The size of the circles represents the gene ratio within each GO term, and the color gradient corresponds to the adjusted P-value. These findings highlight the temporal dynamics of immune response modulation following transfection of epithelial cells with the VEEV replicase mRNA and SARS-CoV-2 mRNA (treatment group), emphasizing the plausible role of VEEV replicase in the prolonged suppression of critical antiviral pathways at later time points.

Full size image

Discussion

The continuous emergence of novel SARS-CoV-2 variants poses significant challenges to the sustained efficacy of current vaccines. The available vaccines were updated in 2022 and 2023. However, by the time these vaccines were manufactured and deployed, a different variant had become predominant, reducing their efficacy in neutralizing the circulating SARS-CoV-2 strains42. We designed and evaluated a trans-amplifying (TA) mRNA vaccine to elicit neutralizing antibodies against multiple variants of the virus while concurrently minimizing the dosage requirement of the antigenic mRNA. Immunization of mice with the TA mRNA vaccine induced broadly cross-neutralizing antibody response against SARS-CoV-2 B.1 lineage and multiple variants, Alpha, Beta, Gamma, Delta, and Omicron BA.1. Mice vaccinated with the TA mRNA vaccine had a greater than 10-fold reduction in viral load following challenge with SARS-CoV-2. The TA mRNA vaccine with 0.5 µg of consensus spike mRNA elicited antibody responses comparable to those of a conventional mRNA vaccine formulated with 20 µg of consensus spike mRNA (40 times higher than the TA mRNA dose).

The breadth of neutralizing antibodies is a critical determinant of SARS-CoV-2 vaccine efficacy43,44. The spike protein antigen based on consensus had four amino acid substitutions (K417N, T478K, E484A, N501Y) within the receptor binding domain (RBD) portion and two outside the RBD (D614G and H655Y), as compared to the ancestral SARS-CoV-2 spike sequence. Of these, K417N and N501Y substitutions were earlier known to stabilize the spike protein by decreasing the flexibility and promoting open conformation of the RBD45,46,47,48. D614G and H655Y are convergent adaptations to the polybasic S1/S2 cleavage site and were shown to enhance the stability of the S1 subunit in the open RBD conformation49,50,51,52,53. The open conformation of RBD exposes the highly conserved epitopes in the spike protein, potentially increasing the immunogenicity of the spike protein54. Additionally, we introduced mutations previously employed to stabilize the spike protein in its prefusion conformation, including the GSAS substitution at residues 682–685 and six proline mutations at positions F817P, A892P, A899P, A942P, K986P, and V987P40,50. These six proline substitutions were earlier proven to enhance the stability of the spike protein40. In this study, mice vaccinated with consensus spike mRNA alone or as a TA mRNA vaccine resulted in the generation of neutralizing antibodies against multiple SARS-CoV-2 variants. Consistent with our findings, a separate study that evaluated the efficacy of a spike-protein vaccine developed through homology of SARS-CoV-2 virus variants demonstrated protection against multiple virus variants55. Similarly, a trivalent mucosal vaccine encoding phylogenetically inferred ancestral RBD sequences was shown to confer pan-Sarbecovirus protection in mice56. Consensus proteins for vaccine design were tested successfully with Avian Coronavirus, MERS-CoV, Influenza, and Dengue36,37,38,57,58,59. Hence, a consensus spike protein strategy offers a promising approach for developing a universal SARS-CoV-2 vaccine, potentially eliminating the need for frequent updates and ensuring broader, long-term protection against emerging variants.

mRNA vaccines require a considerably high dose of antigenic mRNA to elicit the necessary immunogenic responses (Moderna’s Spikevax® contained 100 µg/dose, while Pfizer/BioNTech’s Comirnaty® contained 30 µg/dose)60. Significant gaps exist in both mRNA demand and supply, especially in developing and underdeveloped countries. Amplifying mRNA vaccines represent an advancement over conventional mRNA vaccines, particularly as TA mRNA vaccines provide opportunities for a reduced requirement of antigenic mRNA and enhanced modularity. TA mRNA vaccines using replicase from Semliki forest virus (SFV) and Chikungunya virus were investigated for Influenza, Chikungunya, and Ross River viruses23,31,61. These studies demonstrated the capacity of TA mRNA vaccines to decrease the antigenic mRNA dose in the tested formulations23,31,61. Our vaccine was developed based on the comprehensive characterization of VEEV replicase activity62,63. The VEEV replicase was flanked by the 5’ untranslated region (UTR) of the human alpha-globin gene and the 3’ UTRs of AES and mtRNR1, enhancing translation efficiency and RNA stability23,64. Further, this design also ensures that the VEEV replicase is not amplifiable by the replicase itself, thereby enhancing the safety of the constructs. The identification of antigenic mRNAs by the VEEV replicase was accomplished by flanking conserved sequence elements of the VEEV62,63. We demonstrated through in vitro experiments that cells transfected with TA mRNA constructs exhibited an increase in antigenic protein expression over time. In mice, the TA mRNA vaccine allowed a 40-fold conservation of antigenic mRNA dose compared to a conventional mRNA vaccine.

Transcriptomic analysis of A549 cells transfected with TA mRNA vaccine constructs revealed sustained suppression of key antiviral genes, providing novel insights into the potential immunomodulatory effects of the TA mRNA vaccine platform. Specifically, the downregulation of immune-related genes, particularly interferon-stimulated genes such as CCL5, IFNB1, IFNL1, IFNL2, IFNL3, and IFNL4, suggests prolonged modulation of the host immune response by the VEEV replicase. VEEV nonstructural protein 2 (nsp2), a key component of the viral replicase, is known to inhibit host protein translation and suppress the antiviral response by downregulating interferon signaling pathways65. The observed suppression of type I interferon signaling, serine phosphorylation of STAT proteins, and cytokine-mediated signaling at 12 h suggests potential interference with the JAK-STAT pathway. This is consistent with previous findings that VEEV replicons can impair STAT1 phosphorylation and nuclear translocation66. Additionally, reduced expression of IL-6 in the VEEV replicase mRNA group compared to the control (Supplementary Figure 3) may have contributed to the observed suppression of STAT protein phosphorylation. The observed suppression of antiviral pathways, particularly type I interferon signaling, may enhance the efficacy of the TA mRNA vaccine by creating a more favorable environment for mRNA translation and antigen production. This modulation potentially allows for increased expression of the SARS-CoV-2 spike protein, contributing to a stronger immune response.

This study has several limitations that offer important insights for guiding future research. Nucleoside modifications are essential components of the contemporary mRNA vaccines, which mitigate post-vaccination inflammatory responses67. Modified nucleosides can be incorporated into the replicase component of TA mRNA constructs, potentially contributing to a reduction in vaccine-associated reactogenicity30. Another key factor influencing the reactogenicity of mRNA vaccines is the delivery system or formulation. Currently, most mRNA vaccines utilize lipid nanoparticles (LNPs) for delivery67,68. Our study does not employ a delivery vehicle such as LNPs, as the primary objective was to assess the baseline immunogenic potential and amplification efficiency of the TA-mRNA platform without delivery systems. While this limits direct translational comparability, it offers foundational insight into the platform’s intrinsic function and aligns with emerging evidence supporting vehicle-free mRNA delivery69.

Alternative delivery approaches for conventional and SA mRNA vaccines have also demonstrated the potential to mitigate innate immune activation67. In contrast, the majority of TA mRNA vaccine candidates reported to date have been tested as naked mRNA without any delivery formulation23,31,61,70,71. This is primarily due to the added complexity of co-delivering two distinct mRNA species, replicase and antigen-encoding mRNAs, into the same target cell. Although LNPs are widely adopted for mRNA delivery, their application in TA mRNA systems presents unique challenges. Specifically, it remains to be determined whether the two mRNA components should be formulated separately and combined prior to administration or co-formulated within a single nanoparticle system72. Only a limited number of studies have systematically explored these strategies in vitro72. Additionally, certain studies have demonstrated that incorporating innate immune inhibitors can help modulate the reactogenicity of mRNA formulations73. Therefore, rationally designed experiments are essential to formulate effective TA mRNA vaccines.

In the present study, the dose combinations of replicase and spike mRNAs were selected based on empirical observations from prior studies of TA mRNA vaccines23,61. Notably, the TA mRNA platform achieved comparable immune responses using 40- to 400-fold lower antigen-encoding mRNA compared to conventional mRNA vaccine, indicating a broad and promising dose window. Future optimization of the TA mRNA platform should focus on incorporating stable delivery systems and exploring strategic combinations of replicase and antigenic mRNAs to develop vaccines with a significant dose-sparing advantage.

The capacity of the consensus SARS-CoV-2 spike protein to neutralize variants that have emerged subsequent to Omicron BA.1 remains to be experimentally validated. The immunogenicity of the VEEV replicase requires additional inquiry, as it is plausible that antibodies elicited against the replicase may influence the effectiveness of forthcoming booster. It is also quite likely that replicase-specific T-cells may be induced by the TA mRNA vaccine, and these T-cells could potentially suppress TA mRNA vaccine antigen expression, thereby impacting immunogenicity, particularly during a recall response in individuals previously vaccinated with the TA mRNA vaccine. However, given that replicase is intracellular, it seems unlikely that anti-replicase antibodies would affect TA-transfected antigen-expressing cells or the overall immunogenicity of the TA mRNA vaccine. Furthermore, VEEV replicase is noted to suppress antiviral pathways, such as type I interferon signaling, which necessitates further investigation into the safety profile of the vaccine. Future research efforts should also explore the potential benefits of multiplexing TA mRNA vaccines, whereby mRNAs from multiple SARS-CoV-2 variants are combined to enhance immune responses.

In conclusion, our investigation of the TA mRNA vaccine underscores its potential as an effective and adaptable strategy to address the challenges posed by SARS-CoV-2 and other highly variable RNA viruses with pandemic potential. The TA mRNA vaccine employing a consensus spike demonstrated robust immunogenicity, eliciting cross-neutralizing antibody responses against a broad spectrum of SARS-CoV-2 variants, including major variants of concern. A key advantage of this platform is its potential for dose-sparing capability, achieving comparable immune responses with 40 times less antigen mRNA than the conventional spike mRNA vaccine. Further optimization of this TA mRNA platform with a consensus spike protein, could be valuable in the ongoing fight against SARS-CoV-2 and its evolving variants. Additionally, the insights gained from this approach provide a strong foundation for developing universal coronavirus vaccines and broader strategies for combating future pandemic-prone RNA viruses with high genetic variability.

Methods

Plasmids for consensus spike and replicase

The VEEV replicase sequence was sourced from plasmid pTK194, kindly provided by Ron Weiss (Addgene plasmid #59563; http://n2t.net/addgene:59563; RRID)74. This sequence was codon-optimized for expression in human cells using the GenSmart™ Codon Optimization Tool (Genscript, USA). The optimized sequence was flanked by the 5’ UTR of the human alpha-globin gene and the 3’ UTRs of AES and mtRNR123,60,64. Following the 3’ UTR, a polyadenylation (Poly A) tail was included, with SapI restriction sites positioned downstream to ensure a precise and clean Poly A tail75. Upstream of the 5’ UTR, an AscI restriction site and a T7 promoter sequence were introduced (Fig. 1D). The sequence is provided in Supplementary Note 1.

The spike protein sequence was generated by constructing a phylogenetic consensus of spike protein sequences from multiple SARS-CoV-2 variants (GenBank accession numbers: QHD43416.1 [Ancestral B.1], QWE88920.1 [Alpha], QRN78347.1 [Beta], QRX39425.1 [Gamma], QUD52764.1 [Delta], UFO69279.1 [Omicron BA.1/BA.2], UMZ92892.1 [Omicron BA.2.12.1], UPP14409.1 [Omicron BA.4], UOZ45804.1 [Omicron BA.5]) (Fig. 1A). The alignment was conducted using MUSCLE within SnapGene software (version 7.0.3). To stabilize the pre-fusion state of the spike protein, six proline substitutions were incorporated, following the method described by Hsieh et al.40. The consensus spike sequence was flanked by conserved VEEV replicase sequence elements. As with the replicase, an AscI restriction site and a T7 promoter sequence were placed upstream of the 5’ UTR, and a Poly A tail with a SapI restriction site followed the 3’ UTR (Fig. 1D). The spike protein sequence was optimized for expression in human cells using the GenSmart™ Codon Optimization Tool (Genscript, USA). The sequence is provided in Supplementary Note 2. Structural modeling confirmed the stability of the pre-fusion conformation of the synthesized consensus spike protein (Fig. 1B).

Both the replicase and spike protein sequences were synthesized in pBluescript II SK(+) plasmids with ampicillin resistance (Genscript, USA). The plasmids were subsequently transformed into DH5α E. coli for large-scale plasmid production.

Synthesis of mRNA from plasmid DNA

Plasmids were linearized by restriction digestion with AscI and SapI. The linearized plasmids were then transcribed in vitro utilizing the MEGAscript™ T7 Transcription Kit (Cat.# AM1334) from Invitrogen, Thermo Fisher, USA. The resulting RNA was capped using the Vaccinia Capping System (Cat.# M2080S) and mRNA Cap 2’-O-Methyltransferase (Cat.# M0366S) from NEB, USA. The capped RNA was subsequently purified with the Monarch® RNA Cleanup Kit (Cat.# T2040L) from NEB, USA. The quality and quantity of the resulting mRNA were analyzed and confirmed using the 4200 TapeStation System from Agilent, USA.

Transfection of mRNA in cell culture

To evaluate the protein expression of the designed mRNAs, A549 cells (Human Lung Carcinoma Cells, Cat.# CCL-185, ATCC, USA) were transfected with 2.5 μg of VEEV replicase mRNA and 0.05 μg of SARS-CoV-2 mRNA (accompanied by 2.5 μg of unrelated or scrambled mRNA) using Lipofectamine™ MessengerMAX™ Transfection Reagent (Cat.# LMRNA015, Thermo Fisher Scientific, USA). Cells were transfected with either mRNA alone or in combination, and subsequent analyses were conducted at 4 and 12 h post-transfection.

Western blot analysis of consensus spike and replicase expression in transfected cells

At given time-points post-mRNA transfection, total protein lysate was collected using RIPA Lysis and Extraction Buffer (Cat.# 89900) from Thermo Fisher Scientific, USA. The cell lysates were separated on 10% polyacrylamide pre-cast gels (Cat.# 4561035), Biorad, USA, and subsequently transferred onto a polyvinylidene difluoride (PVDF) membrane. The membrane was probed with SARS-CoV-2 Spike Protein S1/S2 Polyclonal Antibody (Cat.# PA5-112048), Thermo Fisher Scientific, USA, or Non-structural polyprotein Antibody against Venezuelan equine encephalitis virus (strain Trinidad donkey) (VEEV) Non-structural polyprotein (Cat.# CSB-PA329710XA41VAZ), Cusabio, USA. Following that, the membrane was treated with Goat Anti-Rabbit IgG Antibody, Fc, HRP conjugate (Cat.# AP156P), Sigma-Aldrich, Millipore Sigma, USA. Additionally, the lysates were probed with Anti-β-Actin−Peroxidase antibody, Mouse monoclonal (Cat.# A3854), Sigma-Aldrich, Millipore Sigma, USA. The blots were visualized for chemiluminescence using SuperSignal™ West Femto Maximum Sensitivity Substrate (Cat.# 34094), Thermo Fisher Scientific, USA.

Immunogenicity studies of trans-amplifying mRNA vaccine in mice

K18-hACE2 transgenic mice aged between five to seven weeks were procured from The Jackson Laboratory, USA (Strain #034860; B6.Cg-Tg(K18-ACE2)2Prlmn/J)76. The mice were organized into four groups, each consisting of six individuals (3 males and 3 females). The groups were designated as follows: Mock (received phosphate buffered saline), Consensus Spike mRNA (20 μg/dose), TA mRNA-high dose: Consensus Spike mRNA (0.5 μg/dose) + Replicase mRNA (20 μg/dose), and TA mRNA-low dose: Consensus Spike mRNA (0.05 μg/dose) + Replicase mRNA (20 μg/dose).

Immunizations were administered intra-dermally (50 μL/mouse) under isoflurane anesthesia, with two doses given two weeks apart. Blood was collected on day 28 for serum analysis. On day 30, all mice were intranasally challenged with 10^4 TCID50 (20 μL/mouse) of SARS-CoV-2 Omicron BA.1: Isolate hCoV-19/USA/MD-HP20874/2021 (Lineage B.1.1.529; Omicron Variant) from NR-56461, BEI Resources, USA. Four days post-challenge, the mice were euthanized with CO2, and lung tissues were collected. A portion of the lung was frozen for infectious virus load titration, while another part was stored in RNA later. Both sections underwent homogenization, and subsequent analyses were performed. The experimental plan and the details are given in Fig. 2A, B.

Virus neutralization assay

The serum samples’ virus-neutralizing titers were assessed using a cell-based assay with SARS-Related Coronavirus 2 (SARS-CoV-2), Isolate hCoV-19/USA/PHC658/2021 (Lineage B.1.617.2; Delta Variant) from NR-55611, BEI Resources, USA77. Monolayers of Vero C1008 cells (Vero 76, clone E6, Vero E6 cells), CRL-1586, ATCC, USA were cultivated in 96-well microtiter plates. Heat-inactivated serum samples were diluted two-fold in triplicate and incubated with 100 TCID50 virus in a CO2 incubator at 37 °C for 1 h. The serum–virus mixture was then added to cell monolayers and further incubated for 3 days in a CO2 incubator at 37 °C. Plates were observed for cytopathic effects such as rounding and sloughing off cells. The reciprocal of the highest serum dilution where at least two of the three wells demonstrated protection (no cytopathic effect) was determined as the neutralizing titer of the sample.

Pseudovirus neutralization assay

The sera from the study were subjected to a SARS-CoV-2 pseudovirus neutralization assay using 293T-hACE2 cells, which are Human Embryonic Kidney Cells expressing Human Angiotensin-Converting Enzyme 2 (HEK-293T-hACE2 Cell Line, NR-52511, BEI Resources, USA), following the previously described procedure78. SARS-CoV-2 spike pseudoviruses were generated using lentiviral packaging plasmids (SARS-Related Coronavirus 2, Wuhan-Hu-1 Spike-Pseudotyped Lentiviral Kit V2 (Plasmid/Vectors), NR-53816, BEI Resources, USA). Plasmids encoding spike proteins of SARS-CoV-2 variants were procured from Addgene, USA (Alpha (Cat.# 170451), Beta (Cat.# 170449), Gamma (Cat.# 170450), Delta (Cat.# 172320), Omicron BA.1 (Cat.#180375), Omicron XBB.1 (Cat.#194494)79,80,81,82. Duplicate two-fold serial dilutions of serum samples were incubated with 100 µL of pseudoviruses (equivalent to 10^4 - 10^5 relative luminescence units (RLU)) at 37 °C for 1 h in a CO2 incubator. Subsequently, 13,000 293T-hACE2 cells per well were added and incubated at 37 °C for 2 days in a CO2 incubator. After 2 days, 100 µL/well of bright-glo luciferase reagent (Promega, Cat. No. E2620) was added to the wells, and luminescence was measured. The RLUs were recorded, and the serum dilution at which 50% of the maximal neutralization effect is achieved (effective dilution 50%, ED50) for each serum sample was calculated from dose-response curves using a four-parameter Hill equation using R package/version ‘drc’ (version 3.0-1)83.

Estimation of viral load in mice post SARS-CoV-2 challenge

The lung tissue, preserved in RNA later, was homogenized with DPBS and subsequent RNA extraction using the MagMAX™-96 Total RNA Isolation Kit (Cat.# AM1830) from Applied Biosystems™, Thermo Fisher Scientific, USA. Complementary DNA (cDNA) from the extracted RNA was prepared using qScript cDNA SuperMix (Cat.# 95048-100) from Quantabio, USA. Results were normalized with the Eukaryotic 18S rRNA Endogenous Control (FAM™/MGB probe, non-primer limited) (Cat.# 4333760 F) from Applied Biosystems, Thermo Fisher Scientific, USA84. The cDNA was then analyzed for SARS-CoV-2 N1 by qPCR. The primers and probe were sourced from IDT, USA (Cat.# 10006713)85. The master mix utilized for qPCR reactions was TaqMan™ Fast Universal PCR Master Mix (2X), no AmpErase™ UNG (Cat.# 4364103), Applied Biosystems, Thermo Fisher Scientific, USA.

Another portion of the lung from each mouse was homogenized, and the clarified supernatant was assessed for infectious virus titers. Virus yield was determined through an endpoint dilution assay on VeroE6 cells that calculates the 50% tissue culture infective dose (TCID50) using the Reed and Muench method86.

Transcriptome analysis

RNA was extracted from cell cultures of A549 after 4 h and 12 h of transfection with mRNAs encoding 2.5 μg of VEEV replicase mRNA and 0.05 μg of SARS-CoV-2 mRNA. Another set of cells was similarly transfected with 2.5 μg of an unrelated mRNA and 0.05 μg of SARS-CoV-2 mRNA, and RNA was extracted from these cells. The RNeasy Plus Mini Kit (Cat.# 74134) from Qiagen, Germany was used for RNA extraction, while the NEBNext® Poly(A) mRNA Magnetic Isolation Module (Cat.# E7490L) from NEB, USA was used to enrich mRNA from the extracted RNA. RNA libraries were then prepared using the xGenTM RNA Lib Prep 96rxn xGen RNA Library Prep Kit (Cat.# 10009814) from IDT, USA, and normalized using the xGenTM NormalaseTM Module (Cat.# 10009793) from IDT, USA. The Illumina NextSeq 2000 was used to sequence the prepared libraries. The quality of reads was checked via FASTQC, and then mapped to the human reference genome (GRCh38.p14) using HISAT2 with default parameters87,88,89. The mapped reads were counted using featureCounts, and the results were analyzed via DESeq2 using the default Benjamini-Hochberg correction of the p-values from the Wald test90,91. A 0.05 False Discovery Rate (FDR) cut off was considered to classify genes as differentially expressed. The clusterProfiler R package was used for gene ontology enrichment analysis using the biological process ontology92.

Statistical analysis

Statistical significance between groups was calculated using Kruskal-Wallis test followed by Wilcoxon Rank test for pair-wise comparison in the R package/version ‘ggpubr’ package (version 0.6.0)93. A P value of less than 0.05 was considered statistically significant.

Ethical statement

All experiments were conducted following the necessary approvals from the Institutional Biosafety Committee (BIO202300052, BIO202300086) and Institutional Animal Care and Use Committee (PROTO202001704) at The Pennsylvania State University, University Park, PA, USA.
