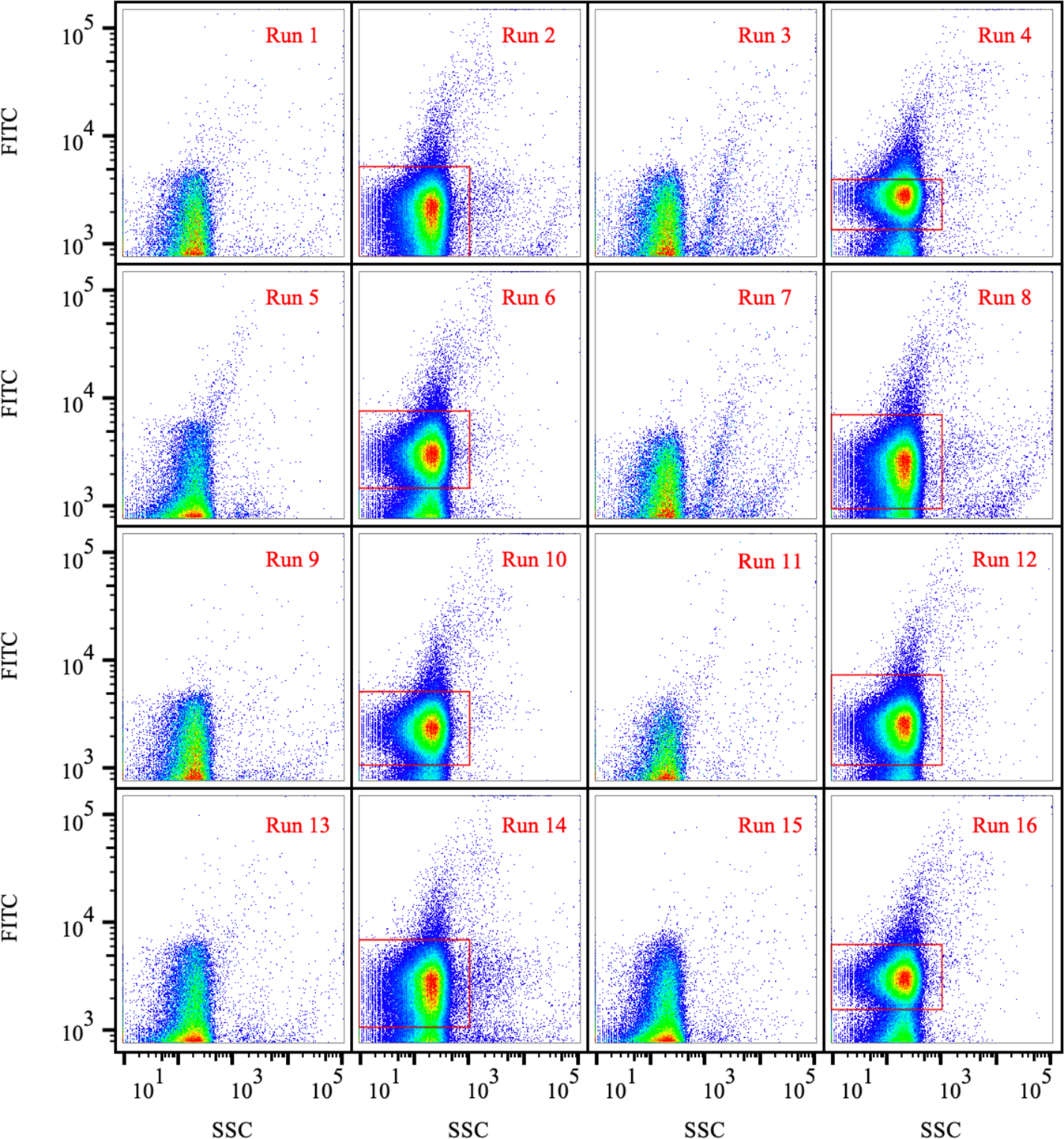

Fig. 1: Pseudocolor SSC vs. FITC density plots of results from Round I of the T4 optimization.

Red box indicates gates used to obtain target event counts. As described in the “Materials and methods” section, gates were set based on the FITC peak. Axes are scaled by unitless, instrument-calculated measures of relative fluorescent intensity.
