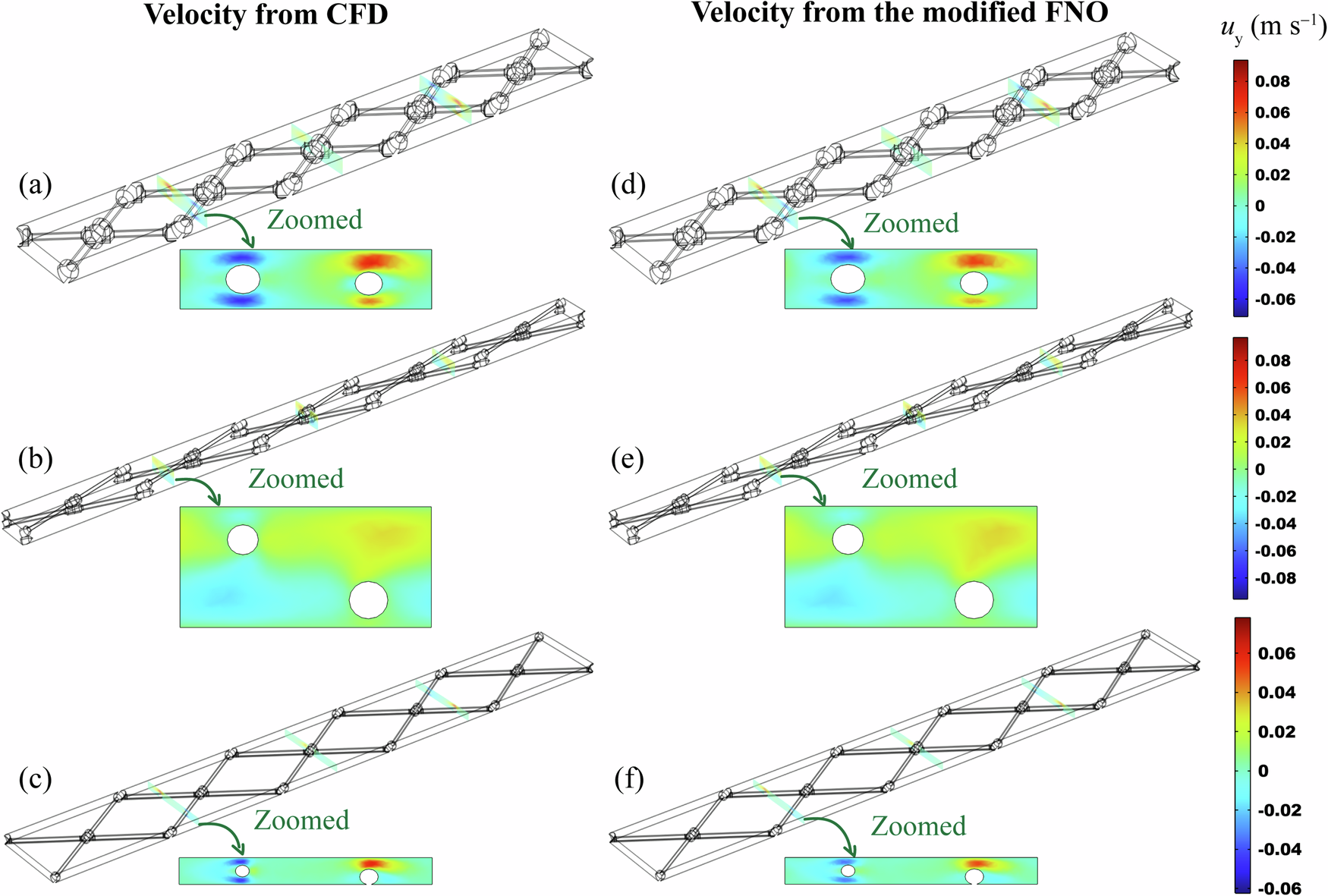

Fig. 4: Velocity in the y direction in 3 geometries of typical feed spacers predicted by the modified FNO-based method and calculated by CFD.
From: Millionfold accelerated AI solver for 3D multi-physical simulations of ultrapermeable membranes
a–c are the results calculated by CFD, while d–f are the results predicted by the modified FNO-based method of the corresponding geometries.
