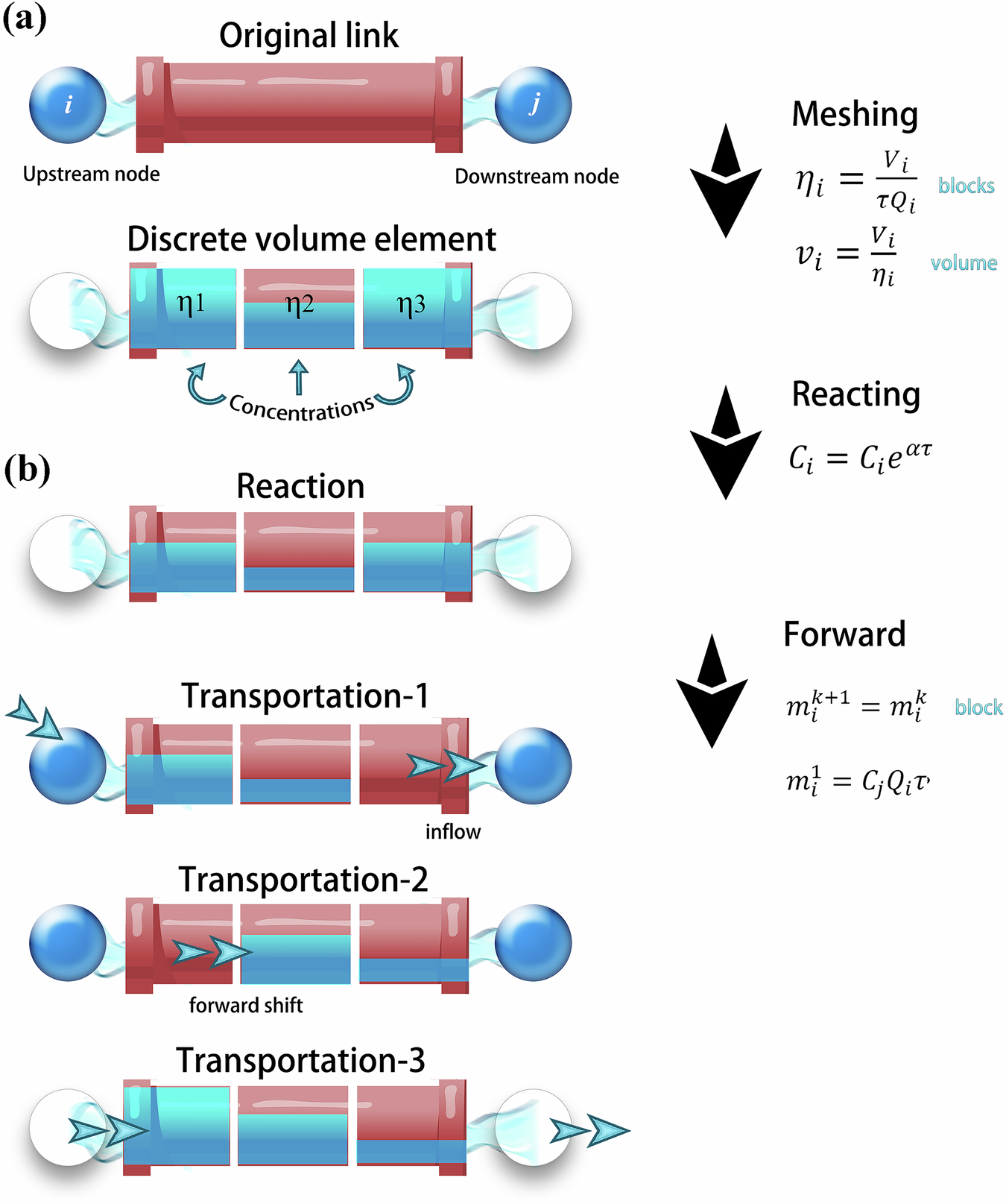

Fig. 1: Schematic of the LTA process for water quality modeling in WDSs.

Illustrates the sequential steps: a segmentation of water flow into discrete volume elements within pipes; b advective transport of these elements along pipes with reaction kinetics.
