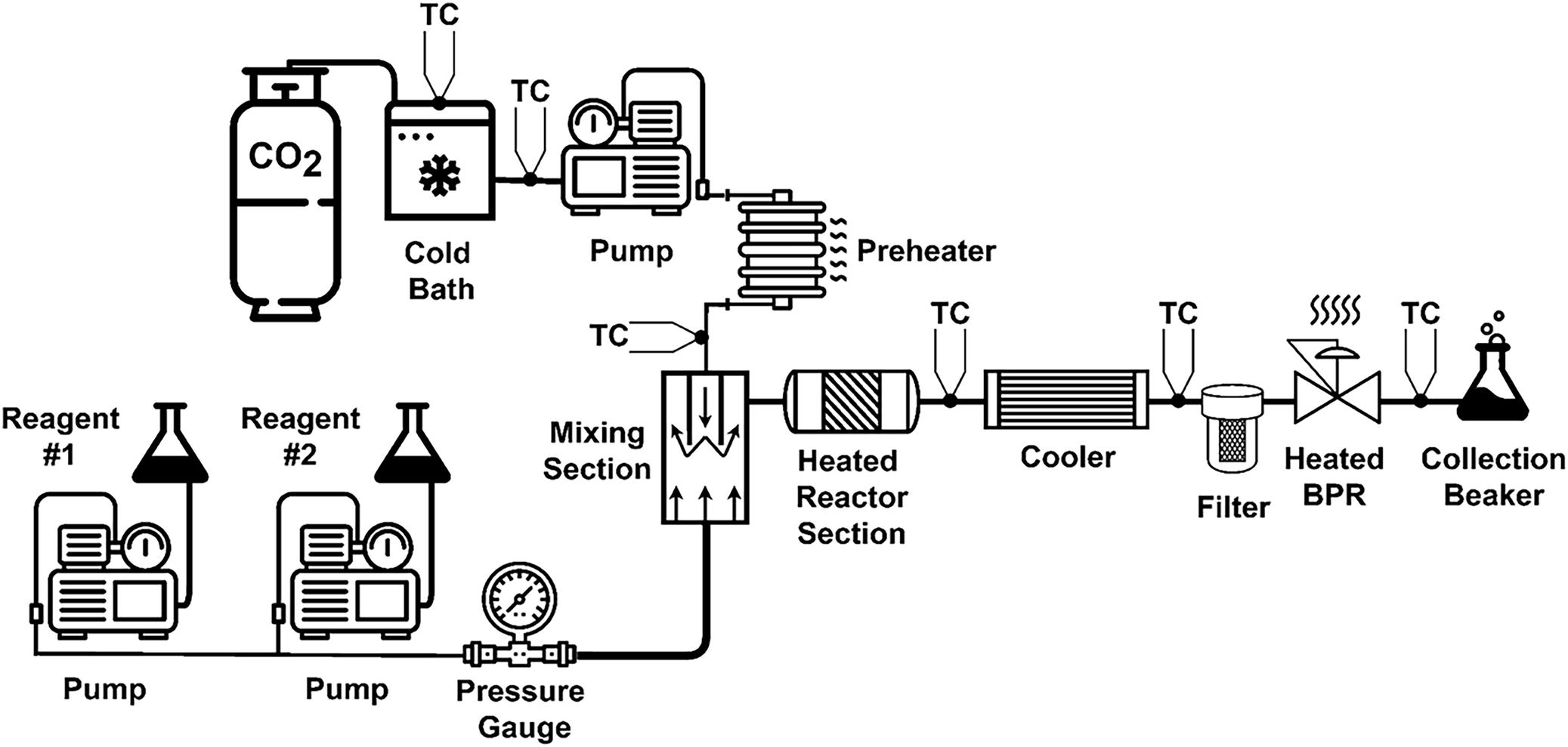

Fig. 4: Continuous-flow reactor setup for the synthesis of UiO-66 using scCO2. | npj Clean Water

Fig. 4: Continuous-flow reactor setup for the synthesis of UiO-66 using scCO2.

From: Advancing wastewater treatment with green and scalable metal–organic frameworks: from synthetic strategies to real-world deployment

Fig. 4

The diagram identifies key components including the thermocouple (TC), counter-current mixer, heating elements, and back-pressure regulator (BPR), which collectively enable rapid mixing, efficient heat transfer, and stable supercritical conditions necessary for scalable MOF production. Reproduced from ref. 83. Copyright 2020, American Chemical Society.
