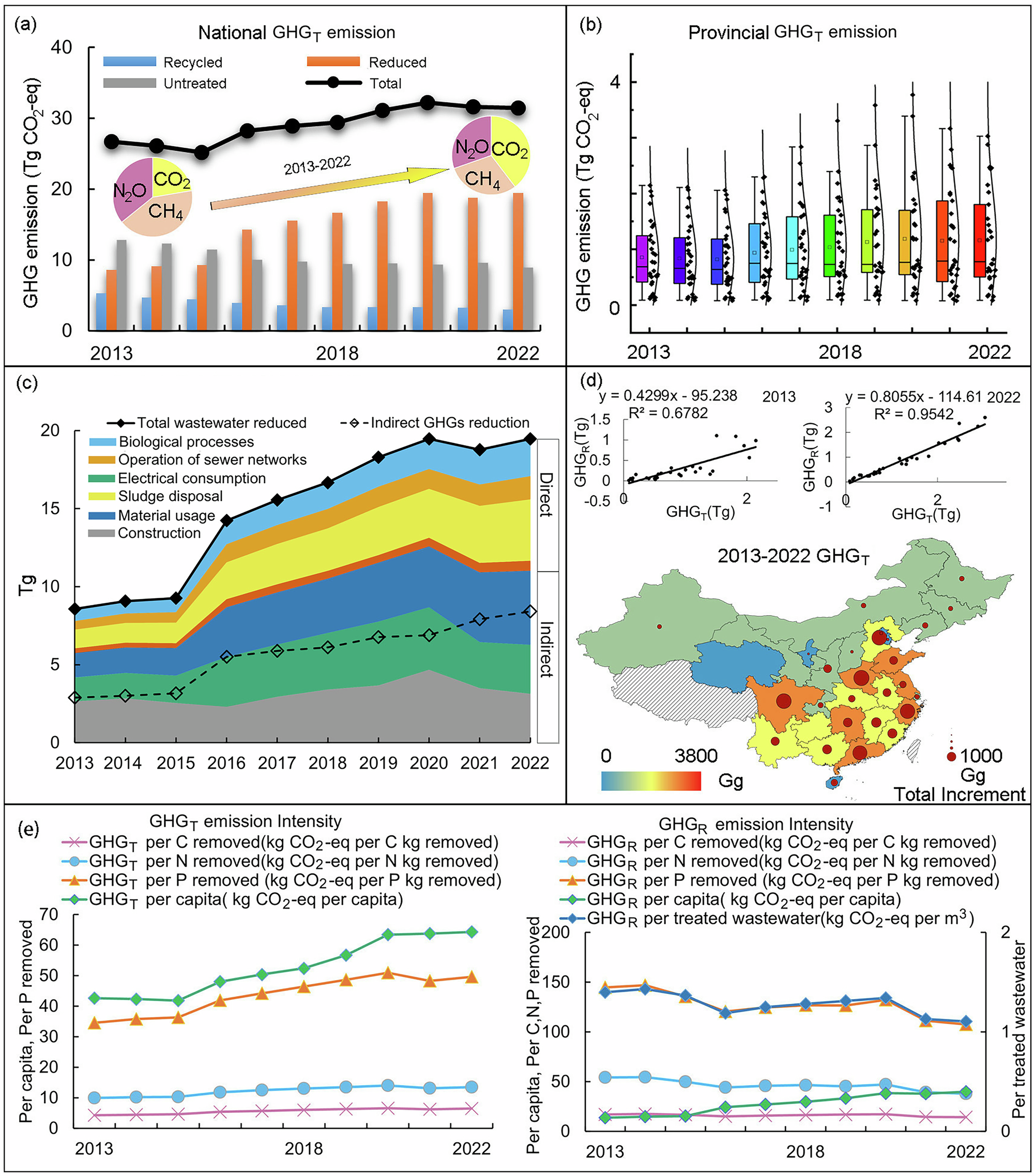

Fig. 3: GHG emissions from rural domestic pollution.

From: China’s enhanced wastewater treatment capacity may accelerate greenhouse gas emissions from rural domestic pollution

Fig. 3

a National trends of total GHG emissions over time; b Provincial trends of total GHG emissions over time; c GHG emissions from the various processes in wastewater treatment systems in China; d GHGT differences (10-year average values) across Chinese provinces and cities; e National trends of GHGT and GHGR emission intensity over time.
