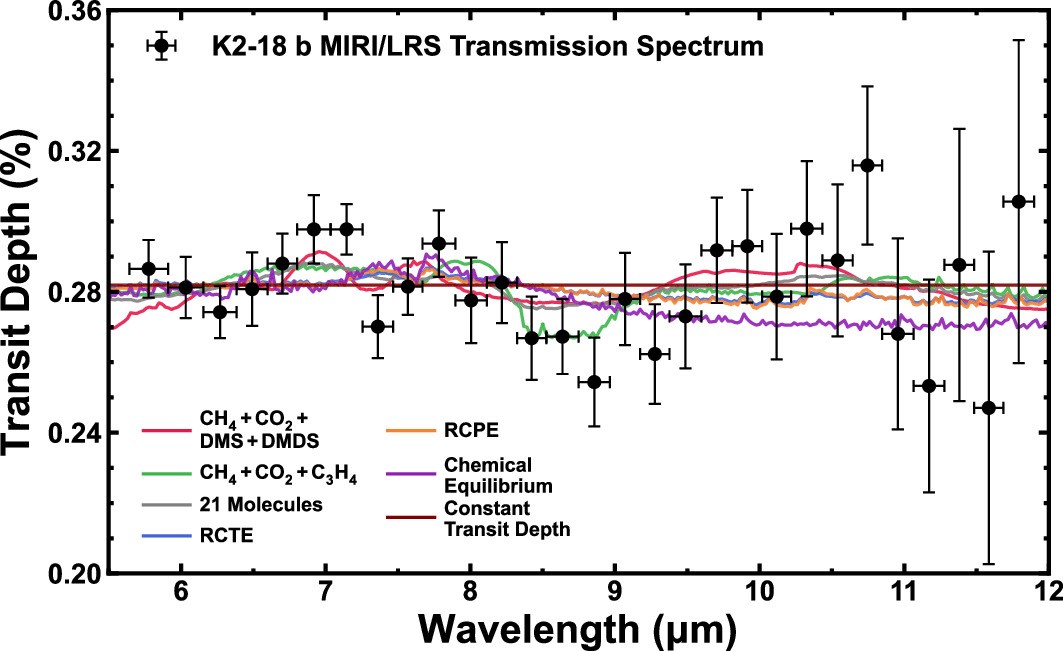

Extended Data Fig. 4: Median model fits for the JExoRES reduction of the K2-18 b transmission spectrum.
From: Challenges in the detection of gases in exoplanet atmospheres
Median model evaluations for selected atmospheric models applied to the JExoRES dataset. Vertical error bars show 1σ standard deviations on the measured transit depth; horizontal bars indicate wavelength bin widths. Each point represents a single spectral bin. The Anderson-Darling and Kolmogorov-Smirnov tests find the residuals statistically consistent with a Normal distribution, indicating that the data cannot distinguish between these models. Equivalent fits are obtained for the JexoPipe reduction (not shown).
