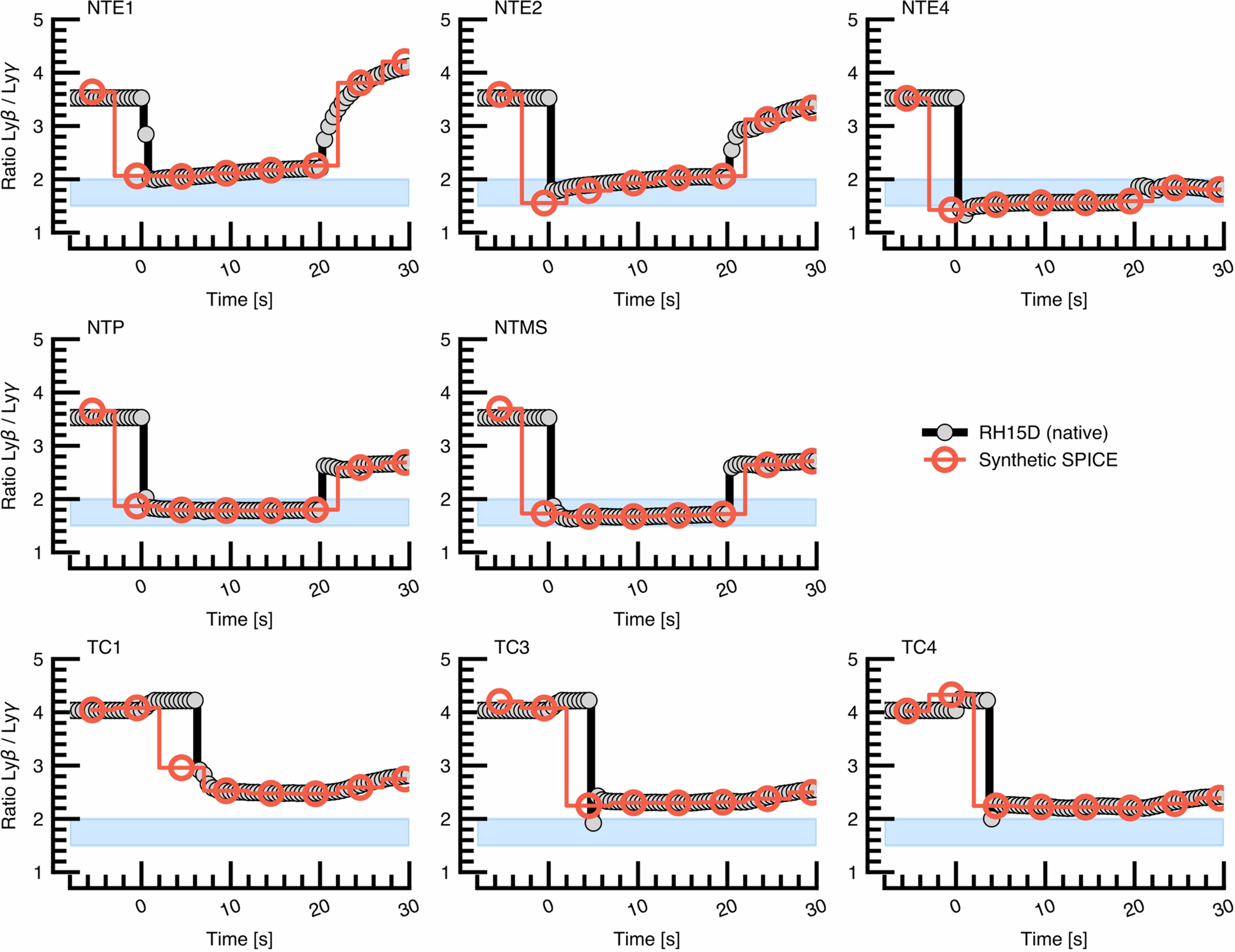

Extended Data Fig. 8: Synthetic Rβγ from the flare simulations that were not shown in the Main Text.
From: Spatial variation of energy transport mechanisms within solar flare ribbons
The top row is the NTE experiments, the middle row is the experiments involving protons, and the bottom row is the TC experiments. Black lines (grey circles) are the results direct from RADYN+RH15D, and the red lines (red open circles) are the values once processed through SPICE’s instrumental response. The blue bands are the values of Rβγ during the strong, impulsive feature in the observed flare.
