Induction and expansion of human PRRX1⁺ limb-bud-like mesenchymal cells from pluripotent stem cells

Abstract

Current protocols for the differentiation of human pluripotent stem cells (hPSCs) into chondrocytes do not allow for the expansion of intermediate progenitors so as to prospectively assess their chondrogenic potential. Here we report a protocol that leverages PRRX1–tdTomato reporter hPSCs for the selective induction of expandable and ontogenetically defined PRRX1⁺ limb-bud-like mesenchymal cells under defined xeno-free conditions, and the prospective assessment of the cells’ chondrogenic potential via the cell-surface markers CD90, CD140B and CD82. The cells, which proliferated stably and exhibited the potential to undergo chondrogenic differentiation, formed hyaline cartilaginous-like tissue commensurate to their PRRX1-expression levels. Moreover, we show that limb-bud-like mesenchymal cells derived from patient-derived induced hPSCs can be used to identify therapeutic candidates for type II collagenopathy and we developed a method to generate uniformly sized hyaline cartilaginous-like particles by plating the cells on culture dishes coated with spots of a zwitterionic polymer. PRRX1⁺ limb-bud-like mesenchymal cells could facilitate the mass production of chondrocytes and cartilaginous tissues for applications in drug screening and tissue engineering.

Main

Human pluripotent stem cells (hPSCs), including human embryonic stem cells (hESCs) and human induced pluripotent stem cells (hiPSCs), are widely employed in developmental biology and regenerative medicine because of their indefinite proliferative capacity and pluripotency. Limb articular hyaline cartilage is composed of type II collagen-producing chondrocytes and defects in, or degeneration of, these chondrocytes due to trauma or necrosis results in the loss of joint function, such as osteoarthritis. Difficulties in the regeneration of cartilaginous tissues have focused research efforts on employing hPSCs to establish chondrogenic induction protocols. Skeletal tissues, including the cartilage and bone, originate from ontogenetically defined mesodermal tissues of vertebrates as follows: paraxial mesoderm (PM) for the axial skeleton (for example, vertebrae), neural crest for the cranial skeleton (for example, cranial bones) and lateral plate mesoderm (LPM) for the appendicular skeleton (for example, limbs)^1,2. Several methods for the induction of PM- or neural crest-derived chondrocytes have been developed^3,4,5,6,7; however, none of these methods include quality tests to determine whether intermediate progenitor cells exhibit bona fide phenotypic features of chondrogenic progenitors in vivo. These technical difficulties represent critical disadvantages that hinder the efficient and stable production of cells and experimental reproducibility. Moreover, the lack of methods to expand and cryopreserve intermediate progenitors of chondrocytes impedes the mass production of chondrocytes/cartilaginous tissues of sufficient quality and causes insufficient processability for tissue engineering of cartilaginous tissue for application in regenerative medicine.

During limb development, the LPM generates the limb-bud mesenchyme (LBM), in which chondrogenesis is initiated in a timely manner via a stringently regulated signal transduction network^8,9,10,11,12. PRRX1 serves as a marker for the LBM, and Prrx1-deficient mice as well as PRRX1 mutations in humans were shown to exhibit lethal phenotypes, characterized by craniofacial defects and limb shortening^13,14,15,16. In mouse LBM, PRRX1⁺ cells are the progenitors of SOX9⁺ cells, which serve as the precursor of osteo-chondroprogenitor cells¹⁷. Genetic lineage tracing studies using Prrx1–Cre transgenic mice clearly demonstrated that PRRX1⁺ cells are the source of limb chondrocytes, which are essential for endochondral ossification^18,19. Although mouse LBM cells isolated from the developing mouse limb bud possess high chondrogenic capacity^17,20, human LBM cells have not been assessed for chondrogenesis because of a lack of methods to induce their differentiation from hPSCs.

In this study we describe the development of a protocol to generate ontogenetically defined, expandable PRRX1⁺ LBM-like (ExpLBM) cells from hPSCs under defined xeno-free conditions. ExpLBM cells stably proliferate and exhibit a high potential to generate hyaline cartilaginous tissues in vitro. We further identify CD90^highCD140B^highCD82^low cell populations as ExpLBM cells with high chondrogenic differentiation potential. ExpLBM cells can be applied to disease modelling of patients with type II collagenopathy (COL2pathy). Finally, we describe an ExpLBM-based high-throughput screening system and a simple protocol that facilitates the production of numerous uniform-sized hyaline cartilaginous particles using a specific charged polymer.

Results

Induction of ontogenetically defined PRRX1⁺ cells from hPSCs under defined xeno-free conditions

To visualize PRRX1⁺ cells at each step of differentiation, we designed a targeting vector harbouring IRES–tdTomato–PGK–Neo cassettes for the bicistronic expression of PRRX1 and tdTomato (Fig. 1a). We electroporated 414C2 iPSCs with the pCR8-3′PRRX1 HA–IRES–tdTomato–PGK–Neo targeting vector and PX459-PRRX1 guide RNA (gRNA) genome-editing vector. The electroporated cells were selected with G418, followed by single-cell cloning to isolate PRRX1^3′tdTomato-reporter iPSCs (Fig. 1b). Single colonies were expanded and genomic DNA was extracted to identify the correct insertion of the knock-in reporter cassettes. A clone harbouring a homozygous knock-in of the reporter cassette was identified through PCR analysis using primers that recognise sequences flanking the homology arms (HA; Fig. 1c). This PRRX1^3′tdTomato-reporter clone expressed the pluripotency markers SSEA4, NANOG, OCT4 and SOX2 (Supplementary Fig. 1a,b), and was therefore selected for further experiments.

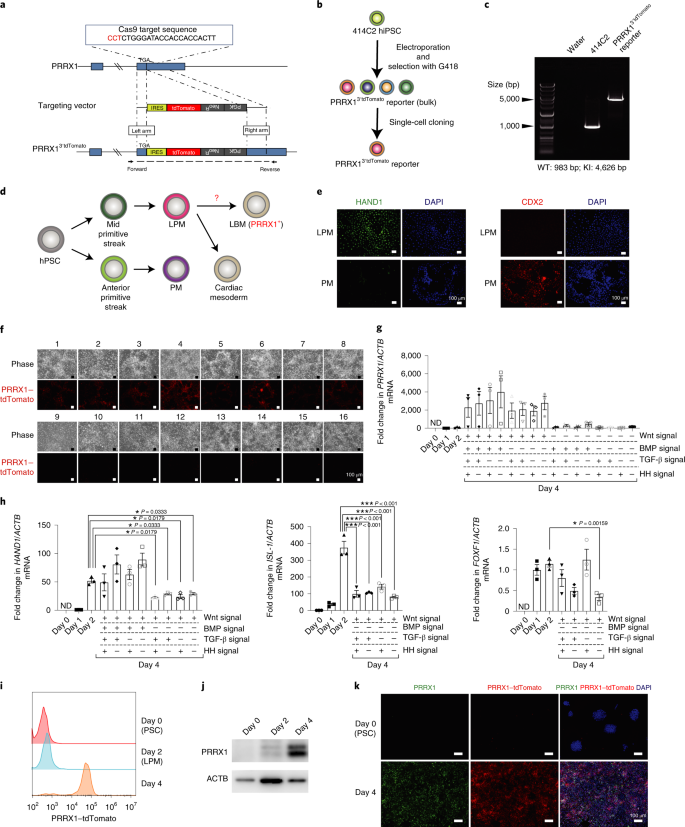

Fig. 1: Development of a method to induce PRRX1⁺ cells using the human PRRX1^3′tdTomato-reporter iPSC line.

a, Targeting cassette of the hPRRX1^3′tdTomato knock-in allele. PAM sequence (CCT) is described in red. b, Generation of the PRRX1^3′tdTomato-reporter hiPSC line. The targeting and gRNA–Cas9 expression vector were electroporated into the hiPSC line 414C2. After selection with G418, single colonies were selected, expanded and screened for the presence of the knock-in reporter cassette. c, Agarose gel of a genotyping PCR of the genomic DNA extracted from the parental 414C2 hiPSCs and PRRX1^3′tdTomato-reporter iPSCs. Targeting cassette sequences were detected using forward and reverse primers that recognise sequences outside the HAs. WT, wild-type allele; KI, knock-in allele. d, Overview of the stepwise induction and differentiation of human LBM mimicking embryonic development. e, Immunocytochemical analysis of HAND1 (LPM marker) and CDX2 (PM marker) expression by PRRX1^3′tdTomato-reporter-derived LPM (day 2; left) and PRRX1^3′tdTomato-reporter-derived PM (day 2; right). The nuclei were counterstained with DAPI. Representative images are shown. f, Expression of tdTomato in PRRX1^3′tdTomato-reporter-derived LPM cells (day 2) treated with 16 combinations of chemicals and cytokines for 2 d, as described in Supplementary Table 1. WNT signal on, CHIR (GSK3β inhibitor, 3 μM); WNT signal off, C59 (PORCN inhibitor, 1 μM); BMP signal on, BMP4 (30 ng ml⁻¹); BMP signal off, LDN-193189 (ALK2/3 inhibitor, 0.5 μM); TGF-β signal on, TGF-β1 (10 ng ml⁻¹); TGF-β signal off, A-83-01 (ALK4/5/7 inhibitor, 1 μM); HH signal on, SAG21K (SMO agonist, 5 nM) and HH signal off, vismodegib (SMO inhibitor, 0.15 μM). Cells that were stimulated with CHIR99021 (WNT signal on) expressed tdTomato. g, Comparison of PRRX1 expression after LPM cells were treated with each combination of chemicals and cytokines. Total RNA was extracted on days 0, 1, 2 and 4, and the expression levels of marker genes were compared using RT–qPCR. h, Comparison of the levels of the LPM-marker genes HAND1, FOXF1 and ISL1 following the treatment of LPM cells with the various combinations of chemicals and cytokines. Total RNA was extracted at days 0, 1, 2 and 4, and the levels of marker genes were compared using RT–qPCR. g,h, All expression values are normalized to those of ACTB mRNA (n = 3 biologically independent experiments). i, Flow cytometry analysis of tdTomato expression in PRRX1^3′tdTomato-reporter cells at pluripotency (day 0), LPM (day 2) and the day-4 (combination 8) state. j, PRRX1 expression in PRRX1^3′tdTomato-reporter cells at pluripotency (day 0), LPM (day 2) and day 4 (combination 8). The levels of PRRX1 at each time point were compared using immunoblotting (n = 3 biologically independent experiments). k, Immunostaining of PRRX1 in the PRRX1^3′tdTomato-reporter cells at pluripotency (day 0) and the PRRX1⁺ state. All cells co-expressed PRRX1 and tdTomato. g,h, ND, not detected; *P < 0.05; ***P < 0.001. Statistical significance was determined using a one-way ANOVA with correction for multiple testing using the Bonferroni method.

Mesoderm development begins with the differentiation of pluripotent epiblast cells in the primitive streak; these cells then segregate into PM and LPM^21,22. To establish an induction protocol using ontogenetically defined LBM cells, we first performed stepwise induction of hPSCs to generate middle primitive streak and LPM²³. We then determined the optimal conditions to induce the differentiation of LBM cells into PRRX1⁺ cells using the PRRX1^3′tdTomato-reporter (Fig. 1d). Immunocytochemical analysis showed that the two-step induction from the pluripotent state (day 0) produced HAND1⁺ (LPM marker) and CDX2⁻ (PM marker) cells on day 2 (Fig. 1e) through the transitional primitive-streak state (Supplementary Fig. 1c).

Next, PRRX1^3′tdTomato-reporter-derived LPM cells (day 2) were treated with 16 different combinations of chemicals and recombinant proteins for 2 d to modify four signalling pathways: WNT, BMP, TGF-β and hedgehog (HH; Supplementary Table 1). WNT activation (combinations 1–8) was required to induce tdTomato expression (Fig. 1f) and PRRX1 messenger RNA expression (Fig. 1g) in LPM cells. During limb-bud development, WNT signalling promotes the proliferation, and inhibits the apoptosis, of LBM cells^24,25. The TGF-β, BMP and HH signalling pathways mediate the differentiation or apoptosis of LBM cells^20,26,27, suggesting that activation of WNT signalling and inhibition of the other three pathways induce the differentiation of PRRX1⁺ cells from LPM cells. Furthermore, the expression levels of LPM-marker genes (HAND1 (ref. ²⁸), FOXF1 (ref. ²⁹) and ISL1 (ref.³⁰)) were significantly downregulated only when BMP, TGF-β and HH signalling were inhibited (Fig. 1h). We therefore selected combination 8 (WNT activation; BMP, TGF-β and HH inhibition) for further experiments. Flow cytometry revealed that most LPM-derived cells expressed tdTomato (96.6 ± 1.8%; Fig. 1i) and that the levels of PRRX1 protein were increased (Fig. 1j), corroborating the transition from LPM to the PRRX1⁺ state by combination 8. Colocalization of PRRX1 and tdTomato indicated that the reporter system correctly visualized PRRX1⁺ cells (Fig. 1k). Other hPSCs, including hiPSCs (414C2 and 1383D2) and hESCs (SEES4, SEES5, SEES6 and SEES7), demonstrated similar PRRX1 immunostaining on days 0 and 4 (Extended Data Fig. 1) and PRRX1, HAND1, FOXF1 and ISL1 expression levels—determined by reverse transcription quantitative PCR (RT–qPCR)—at each differentiation stage (Supplementary Fig. 2).

Expansion and characterization of PRRX1⁺ LBM-like cells under defined xeno-free conditions

The development of a protocol to expand progenitor cells is required for the mass production of differentiated cells with high processability into the desired sizes and shapes suitable for application in tissue engineering. To assess the stable proliferation of PRRX1⁺ cells, we tested three types of culture media (mediums 1–3), which are described in Fig. 2a. Only medium 3 (hereinafter referred to as ExpLBM medium) supported the proliferation of LBM-like cells after the first passage while maintaining PRRX1–tdTomato expression (Fig. 2a). These expandable LBM-like cells (called ExpLBM cells) did not exhibit altered morphology during serial passage (Fig. 2b) and stably expressed PRRX1 (Fig. 2c). Furthermore, ExpLBM cells retained both the expression levels and positive rate of PRRX1–tdTomato during serial passage (Fig. 2d). We found that 2 × 10⁵ LBM-like cells, harvested on day 4, yielded 1.2 × 10¹⁵ ExpLBM cells after ten passages (doubling time, 2.3 ± 0.2 d). The generation of PRRX1⁺ ExpLBM cells with similar doubling times was reproduced using other hPSCs (doubling times: SEES4, 3.0 ± 0.2 d; SEES5, 4.3 ± 0.8 d; SEES6, 2.7 ± 0.2 d and SEES7, 2.8 ± 0.2 d; Fig. 2e,f and Supplementary Fig. 3a). We also confirmed the normal karyotype of ExpLBM cells (Supplementary Fig. 3b). Interestingly, ExpLBM cells could be stored in liquid nitrogen without a decrease in the levels of PRRX1–tdTomato expression (Supplementary Fig. 4a).

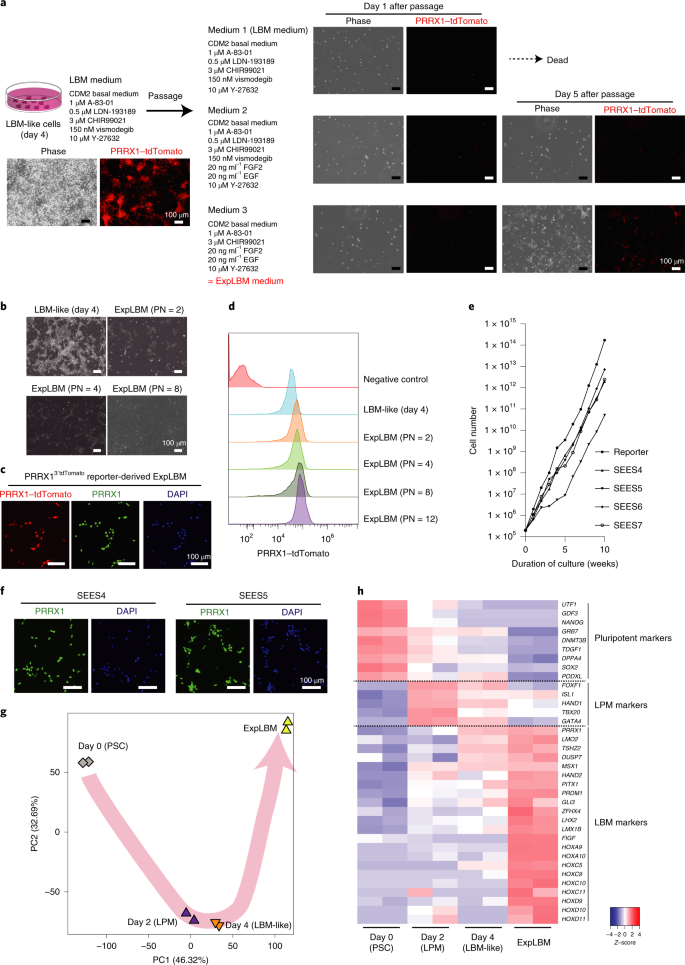

Fig. 2: Development of an expandable culture protocol for LBM-like cells that maintains PRRX1 expression.

a, Serial passage of LBM-like cells stably expressing PRRX1. After collecting PRRX1^3′tdTomato-reporter line-derived LBM-like cells from the culture dish, the cells were seeded and cultured in medium 1 (LBM medium, combination 8), medium 2 (LBM medium containing 20 ng ml⁻¹ epidermal growth factor (EGF) and 20 ng ml⁻¹ fibroblast growth factor (FGF)) or medium 3 (medium 2 excluding LDN-193189 and vismodegib; ExpLBM medium). Cell morphology and tdTomato fluorescence were observed 1 or 5 d after seeding. LBM-like cells were passaged while maintaining tdTomato expression using medium 3 (ExpLBM medium). b–d, Cell morphology (b), PRRX1 immunostaining (c) and tdTomato fluorescence intensity (d) of ExpLBM cells derived from the PRRX1^3′tdTomato-reporter line at each passage number when the cells were maintained in ExpLBM medium. The cells (2 × 10⁵) were passaged in 6 cm culture dishes every week. e,f, Growth curve (e) and PRRX1 immunostaining (f) of ExpLBM cells derived from the reporter and SEES4–7 (e), and SEES4 and -5 hPSC lines. g,h, RNA transcriptome analysis of pluripotent stem cells (day 0), LPM (day 2), LBM-like (day 4) and the ExpLBM (PN = 4 or 5) state (PRRX1^3′tdTomato-reporter-derived samples; n = 2 biologically independent experiments). Principal component (PC) analysis (g) and heatmap of gene expression levels of each marker (h).

To determine the cellular identity of ExpLBM cells, we performed RNA-sequencing (RNA-seq) analysis of sequential samples at each step of the generation of ExpLBM cells from PRRX1^3′tdTomato-reporter hiPSCs. Principal component analysis revealed distinct differential gene expression among pluripotent (day 0), LPM (day 2), LBM-like (day 4) and ExpLBM cells (Fig. 2g). The expression levels of the pluripotent (UTF1, GDF3, NANOG, GRB7, DNMT3B, TDGF1, DPPA4, SOX2 and PODXL), LPM (FOXF1, ISL1, HAND1, TBX20 and GATA4) and LBM (PRRX1, LMO2, TSHZ2, DUSP7, MSX1, HAND2, PITX1, PRDM1, GLI3, ZFHX4, LHX2, LMX1B, FIGF, HOXA9, HOXA10, HOXC5, HOXC9, HOXC10, HOXC11, HOXD9, HOXD10 and HOXD11) marker genes clearly revealed the sequential induction of genes that were representative of each differentiation stage under the established culture conditions. We found that the expansion procedures increased the expression levels of the LBM marker genes, indicating that culturing with ExpLBM medium confers an LBM-like phenotype on cells at differentiation day 4 (Fig. 2h). These results suggest that our differentiation and expansion method can be used to generate ontogenetically defined PRRX1⁺ LBM-like cells from hPSCs.

Chondrogenic capacity of ExpLBM cells

In mice, SOX9⁺ LBM cells in the developing limb bud are progenitors of chondrocytes¹⁷. Flow cytometry analysis revealed that ExpLBM cells derived from each hPSC line were exclusively SOX9⁺ (Fig. 3a). To determine the chondrogenic capacity of ExpLBM cells, we employed two-dimensional (adhesive culture) or three-dimensional (floating culture) chondrogenic induction protocols (2DCI and 3DCI, respectively) under defined xeno-free conditions. During limb-bud development towards endochondral ossification, the WNT and FGF signalling pathways are required for the condensation of LBM cells, which initiate timely chondrogenesis^10,24,25. Therefore, we included the following steps in the chondrogenic induction protocol applied to ExpLBM cells: condensation (step 1), chondrogenic differentiation (step 2) and maturation (step 3). When chondrogenic induction was performed using 2DCI (Fig. 3b), PRRX1^3′tdTomato-reporter-derived ExpLBM cells produced several nodules that were stained by Alcian blue. These nodules were obtained only when BMP4, TGF-β₁, GDF5 and FGF2 were included in the step 2 medium (Fig. 3c). Analysis by RT–qPCR revealed that the expression levels of the cartilaginous tissue marker genes SOX5, SOX6, SOX9, COL2A1 and ACAN were significantly upregulated (Fig. 3d).

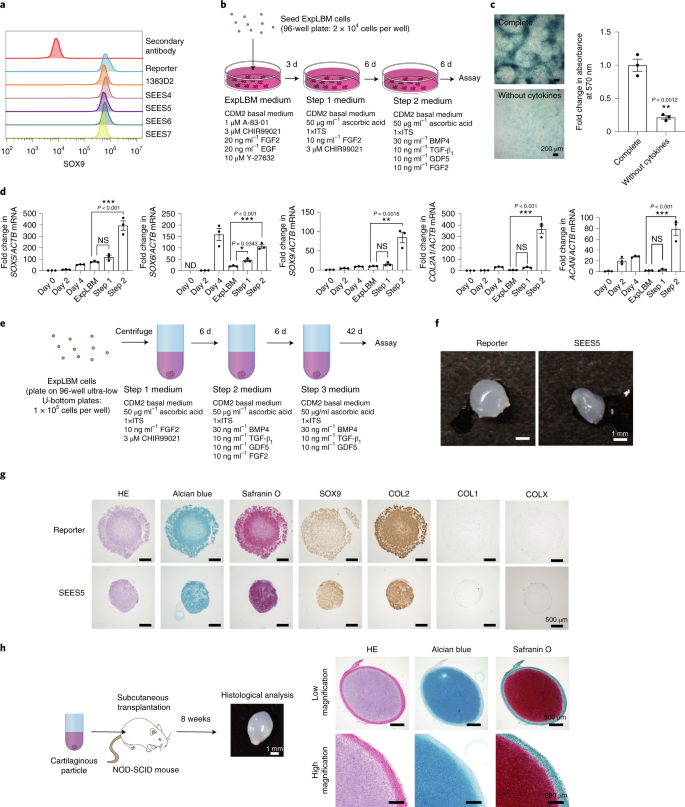

Fig. 3: Chondrogenic induction of ExpLBM cells using two- and three-dimensional culture conditions.

a, Flow cytometry analysis of SOX9 expression in ExpLBM cells derived from various hPSCs. b, Two-dimensional chondrogenic induction (2DCI) protocol for ExpLBM cells. c, Alcian blue staining after the 2DCI-based differentiation of ExpLBM cells. After culturing PRRX1^3′tdTomato-reporter line-derived ExpLBM cells with step 1 medium for 6 d, the cells were treated with step 2 medium for 6 d. The cells were then fixed and stained with Alcian blue (n = 3 biologically independent experiments). d, Analysis of chondrocyte marker genes during the 2DCI protocol. Total RNA was extracted at the indicated time points and the gene expression levels were determined by RT–qPCR analysis. All values were normalized to those of ACTB mRNA (n = 3 biologically independent experiments). ND, not detected. c,d, **P < 0.01; ***P < 0.001; NS, not significant. Statistical significance was determined using a two-sided unpaired Student’s t-test (c) or one-way ANOVA with correction for multiple testing using the Bonferroni method (d). e, Three-dimensional chondrogenic induction (3DCI) protocol for ExpLBM cells. f, Images of hPSCs-derived particles using the 3DCI protocol. g, Histological analysis of particles generated using the 3DCI protocol. Particles were generated from ExpLBM cells derived from each hPSC, fixed and then stained with haematoxylin–eosin (HE), Alcian blue or Safranin O, or subjected to immunohistological analysis using antibodies against SOX9, COL2, COL1 or COLX. f,g, Data for day 42 of step 3. h, Subcutaneous transplantation of cartilaginous particles in NOD-SCID mice. Cartilaginous particles (414C2-derived; step 3 treatment, 21 d) were subcutaneously transplanted into NOD-SCID mice and their engraftment was assessed by HE, Alcian blue or Safranin O staining at 8 weeks after transplantation. c,f–h, Representative images are shown.

In the 3DCI protocol (Fig. 3e), each hPSC-derived ExpLBM cell reproducibly generated white particles at day 42 of step 3, 42 d (Fig. 3f). Histological analysis showed that the cells were embedded in numerous regions of the extracellular matrix (ECM), which was stained intensely and homogeneously with Alcian blue and Safranin O (Fig. 3g, second and third columns). Immunohistological analysis revealed that all cells embedded in the ECM expressed SOX9; type II collagen (COL2) was detected in the ECM but type I collagen (COL1) and type X collagen (COLX) were not (Fig. 3g, four columns on the right). Analysis by RT–qPCR revealed that the expression levels of chondrocyte (SOX5, SOX6, SOX9, COL2A1 and ACAN) and hypertrophic (COL10A1, IHH and MMP13) marker genes were upregulated in the 3DCI protocol (Supplementary Fig. 5a). The 3DCI protocol considerably upregulated the expression of not only pan-chondrocyte marker genes (SOX5, SOX6, SOX9, COL2A1, COL9A1, COL9A2, COL9A3, COL11A1, COL11A2 and ACAN), but also articular cartilage (GDF5, PRG4, CILP, CILP2 and CLU) and hypertrophic (COL10A1, IHH and MMP13) marker genes, compared with the 2DCI protocol, as determined by RNA-seq analysis (Supplementary Fig. 5b,c and Supplementary Table 2). Furthermore, the capacity of ExpLBM cells to form cartilaginous tissue under these conditions was maintained after cryopreservation (Supplementary Fig. 4b). When ExpLBM cells were subjected to the 3DCI protocol without step 1, the ECM within the particles was lightly stained with Alcian blue and Safranin O (Supplementary Fig. 6a). In contrast to ExpLBM cells, LBM-like cells on day 4 of differentiation formed particles containing a heterogeneous cell population in which the ECM was not stained by Safranin O (Supplementary Fig. 6b).

To test the graft survival of ExpLBM-derived particles, we performed the following transplantation assays. ExpLBM-derived particles (step 3, 21 d) that were subcutaneously transplanted into NOD-SCID mice maintained hyaline cartilage-like structures without any teratoma development at 8 weeks after transplantation (Fig. 3h and Supplementary Figs. 7a–i and 8a). We also transplanted PRRX1^3′tdTomato-reporter-derived cartilaginous particles (step 3, 21 d) to a 1 mm hole defect in the articular cartilage of SCID rats and tested their engraftment. As shown in Extended Data Fig. 2 and Supplementary Fig. 8a, human antigen (human VIMENTIN)-positive hyaline cartilage-like tissues were observed at 4 weeks after transplantation without any teratoma development. Importantly, the colony-forming assay revealed that single cells isolated from cartilaginous particles (step 3, 21 d) could not form any colonies, indicating that the cells in the cartilaginous particles did not possess tumorigenic capacity (Supplementary Fig. 8b). When subcutaneous transplantation was performed in NOD-SCID mice with βTCP, human bone marrow mesenchymal stem cells, but not PRRX1^3′tdTomato-reporter-derived ExpLBM cells, formed bone-like tissues 4 weeks after transplantation (Extended Data Fig. 3a–c). Thus, our ExpLBM-derived cartilaginous particles can serve as a potential regenerative resource of hyaline cartilage tissues.

Identification of CD antigens to enable the assessment of the chondrogenic potential of ExpLBM cells

Methods to prospectively determine the differentiation capacity of intermediate progenitors have become necessary for stable and sufficient supply as well as for reproducibility in the field of biomedical engineering. We therefore attempted to develop a method to enable the prospective chondrogenic assessment of ExpLBM cells. We found that if ExpLBM cells were allowed to attain confluency, this led to an irreversible decrease in the levels of PRRX1–tdTomato and eventually generated PRRX1–tdTomato^low (or PRRX1^low) ExpLBM cells (Fig. 4a). Although the conditions necessary to induce PRRX1^low ExpLBM cells from PRRX1^high ExpLBM cells have not been defined in detail, we investigated the differences between PRRX1^high and PRRX1^low ExpLBM cells in their capacity to undergo chondrogenic differentiation. In the 2DCI protocol, PRRX1^low ExpLBM cells did not form Alcian blue-positive nodules and the staining intensities of PRRX1^low ExpLBM cells were significantly lower than those of PRRX1^high ExpLBM cells (Fig. 4b). In the 3DCI protocol, PRRX1^low ExpLBM cells did not detectably form hyaline cartilaginous-like tissues, in contrast to PRRX1^high ExpLBM cells (Fig. 4c). These findings suggest that the identification of several cell-surface markers with a positive or negative correlation with PRRX1 expression will be useful for predicting the chondrogenic potential of ExpLBM cells.

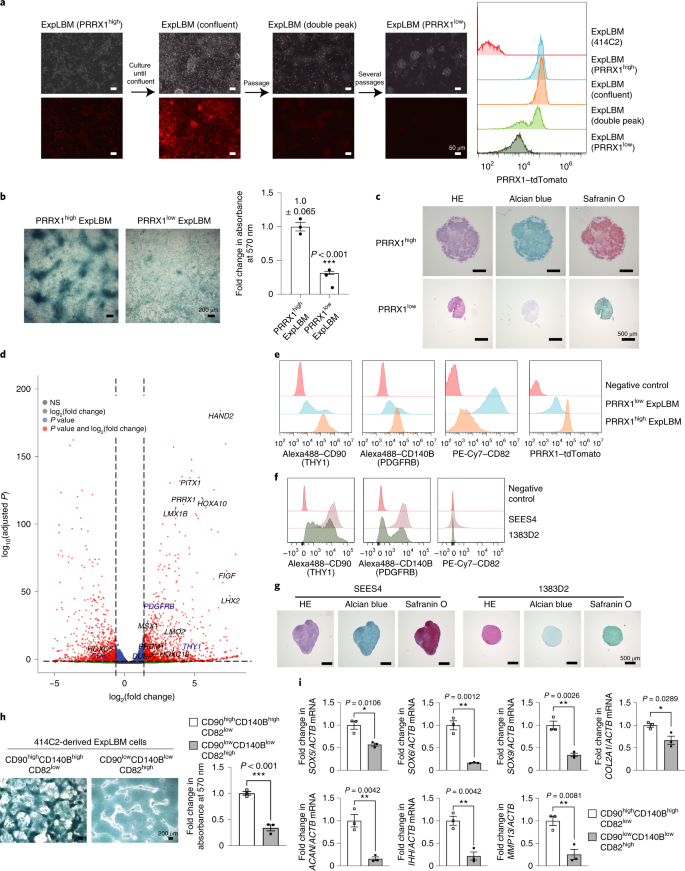

Fig. 4: Identification of CD antigens for the prospective assessment of the chondrogenic capacity of ExpLBM cells.

a, Effect of high-density culture on the stable maintenance of ExpLBM cells derived from the PRRX1^3′tdTomato-reporter line. ExpLBM cells were cultured until they attained high confluency and then analysed to detect tdTomato expression during serial passage. All cells eventually expressed low levels of tdTomato (PRRX1^low ExpLBM cells). b, Levels of Alcian blue staining after 2DCI with PRRX1^high and PRRX1^low ExpLBM cells (right; n = 3 biologically independent experiments). Representative images are shown (left). c, Histological analysis after 3DCI with PRRX1^high (top) and PRRX1^low (bottom) ExpLBM cells. d, Volcano plot identifying genes that are differentially expressed between PRRX1^high and PRRX1^low ExpLBM cells. The dashed vertical and horizontal lines indicate the threshold. The red dots represent genes that are differentially expressed (n = 2 biologically independent experiments). The gene names of each identified surface antigen are highlighted in blue. e, Representative flow cytometric analysis data for CD90 (THY1), CD140B (PDGFRB) and CD82 expressed by PRRX1^high and PRRX1^low ExpLBM cells. f, Representative flow cytometric data for CD90 (THY1), CD140B (PDGFRB) and CD82 expression of SEES4- and 1383D2-derived ExpLBM cells. g, Histological analysis after 3DCI with SEES4- (left) and 1383D2 (right)-derived ExpLBM cells. h,i, CD90^highCD140B^highCD82^low and CD90^lowCD140B^lowCD82^high populations that were purified from 414C2-derived ExpLBM cells using a cell sorter were treated with the 2DCI protocol, followed by Alcian blue staining (h) and RT–qPCR analysis (i; n = 3 biologically independent experiments). h, Representative images (left) and the levels of Alcian blue staining (right) are shown. b,h,i, *P < 0.05; **P < 0.01; ***P < 0.001. Statistical significance was determined using a two-sided unpaired Student’s t-test.

To identify candidate cell-surface markers to enable distinction between PRRX1^high and PRRX1^low ExpLBM cells, we conducted RNA-seq analysis of the global gene expression. A volcano plot analysis was performed to identify genes that were differentially expressed between the PRRX1^high and PRRX1^low ExpLBM cells (Fig. 4d and Supplementary Table 3). The expression levels of genes characteristically expressed in LBM (PRRX1, DUSP7, FIGF, HAND2, HOXA10, HOXC10, LHX2, LMO2, LMX1B, MSX1, PITX1 and PRDM1) were upregulated in the PRRX1^high ExpLBM cells (Fig. 4d). We identified 22 genes encoding cell-surface markers that were upregulated in the PRRX1^high ExpLBM cells and 18 that were upregulated in the PRRX1^low ExpLBM cells. Flow cytometry analysis revealed that CD90 (THY1) and CD140B (PDGFRB) were expressed in conjunction with PRRX1–tdTomato. In contrast, CD82 expression was inversely correlated with PRRX1–tdTomato expression (Fig. 4e). When ExpLBM cells derived from SEES4 or 1383D2 were stained with CD90, CD140B or CD82, the SEES4-derived ExpLBM cells had staining patterns similar to those of the PRRX1^high ExpLBM cells; however, the 1383D2-derived ExpLBM cells showed heterogeneous staining patterns for CD90 and CD140B (Fig. 4f). In the 3DCI protocol, the SEES4-derived ExpLBM cells formed hyaline cartilaginous-like tissues but the 1383D2-derived ExpLBM cells did not (Fig. 4g). In the 2DCI assay, the CD90^highCD140B^highCD82^low populations sorted from the 414C2-derived ExpLBM cells (Supplementary Fig. 9) demonstrated higher intensities of Alcian blue staining (Fig. 4h) and higher expression levels of chondrocyte marker genes (SOX5, SOX6, SOX9, COL2A1, ACAN, IHH and MMP13) than the CD90^lowCD140B^lowCD82^high populations (Fig. 4i). These results demonstrate that CD90^highCD140B^highCD82^low cell-surface expression indicates ExpLBM cells with high chondrogenic differentiation potential and therefore, the chondrocyte differentiation potential of ExpLBM cells can be prospectively assessed using these CD antigens.

In vitro disease modelling of COL2pathy using ExpLBM cells and development of the ExpLBM-based high-throughput screening system

In disease modelling, the development of a protocol to produce the desired patient-derived cell types with both reproducibility and mass productivity is critical towards achieving high-throughput drug screening in drug discovery. To evaluate the feasibility of ExpLBM cells for the analysis of genetic diseases, we generated ExpLBM cells from COL2pathy-derived hiPSCs³¹ and assessed their chondrocyte differentiation potential. Type II collagenopathy arising from mutations in COL2A1 comprises a wide spectrum of highly variable phenotypes^32,33. Achondrogenesis type II (ACGII) and hypochondrogenesis (HCG) are lethal and the corresponding patient-derived iPSCs undergo abnormal chondrogenic differentiation³¹. ExpLBM cells were established from ACGII-1 and HCG-1 hiPSCs (Fig. 5a). Immunocytochemical analysis of the ACGII-1- and HCG-1-derived ExpLBM cells revealed that they were exclusively PRRX1⁺ (Fig. 5b). ACGII-1- and HCG-1-derived ExpLBM cells showed similar doubling times to 414C2 ExpLBM cells (doubling times: 414C2, 2.9 ± 0.1 d; ACGII-1, 3.9 ± 0.6 d; and HCG-1, 3.6 ± 0.5 d; Fig. 5c).

Fig. 5: Recapitulation of a disease phenotype using ExpLBM cells derived from patients with COL2pathy skeletal dysplasia.

a, Experimental procedures to establish ExpLBM cells from iPSC lines derived from patients with COL2pathy (ACGII-1 and HCG-1 ExpLBMs). b,c, Immunocytochemical analysis of PRRX1 expression (b) and growth curves (c) of ACGII-1 (b,c), HCG-1 (b,c) and 414C2 (c) ExpLBMs. d, Levels of Alcian blue staining after 2DCI with 414C2, Reporter, SEES4, SEES5, SEES7, ACGII-1 and HCG-1 ExpLBMs. After culturing with step 2 medium for 6 d, the cells were fixed and stained with Alcian blue (left). Then the absorbances at 570 nm were compared (right; n = 3 biologically independent experiments). e, Analysis (RT–qPCR) of the expression of chondrocyte marker genes after 2DCI of each ExpLBM cell type. All values were normalized to those of ACTB mRNA (n = 3 biologically independent experiments). f, Chondrogenic index of each chemical. ACGII-1-derived ExpLBM cells were seeded into 96-well plates and differentiated using the 2DCI protocol. Each chemical was added to the step 2 medium at 5 µM (BML-2865, natural compounds; and BML-2843J, FDA-approved drugs) and the chondrogenic indexes were calculated to compare their chondrogenic activities 6 d after chemical treatment. g, Second screening of the identified chemicals. ACGII-1-derived ExpLBM cells were seeded into 96-well plates and differentiated using the indicated procedure. Each chemical was added to the step 2 medium at 0.1 µM. After culturing with step 2 medium for 6 d, the cells were fixed and stained with Alcian blue (left). Then the absorbances at 570 nm were compared (right; n = 3 independent experiments). b,d,g, Representative images are shown. d,e,g, **P < 0.01; ***P < 0.001; NS, not significant. Statistical significance was determined using a one-way (d,g) or two-way (e) ANOVA with correction for multiple testing using the Bonferroni method.

When chondrogenic differentiation was induced using the 2DCI protocol, ACGII-1- and HCG-1-derived ExpLBM cells formed fewer Alcian blue-stained nodules and the staining intensities were significantly lower than that of other ExpLBM control cells (414C2 and PRRX1^3′tdTomato-reporter hiPSCs, and SEES4, SEES5 and SEES7 hESCs; Fig. 5d and Extended Data Fig. 4a). Moreover, the expression of chondrocyte marker genes was not upregulated in either cell line using the 2DCI protocol (Fig. 5e).

As shown in Extended Data Fig. 4b,c, ACGII-1- and HCG-1-derived ExpLBM cells could form particle structures but they were sparsely stained with Alcian blue, Safranin O and COL2A1, even if the cells in the particles were exclusively SOX9⁺. In addition, the ACGII-1-derived particles expressed lower levels of SOX5, SOX6, SOX9 and ACAN than the ExpLBM control-derived particles (Extended Data Fig. 4d). Consistent with previous findings³¹, electron microscopy revealed a distended endoplasmic reticulum in chondrocytes (Extended Data Fig. 5) in the particles derived from ACGII-1 and HCG-1 ExpLBM cells.

To identify therapeutic candidates for COL2pathy, we established a simplified chemical screening system based on the 2DCI protocol (Supplementary Fig. 10). ACGII-1-derived ExpLBM cells had a lower chondrogenic capacity than healthy ExpLBM cells; therefore, we selected ACGII-1-derived ExpLBM cells to identify chemicals that increase their capacity for chondrocyte differentiation. Chemicals derived from the BML-2865 (502 natural compounds) and BML-2843J (765 FDA-approved drugs) library were used. After culturing ACGII-1-derived ExpLBM cells with step 1 medium, they were treated with step 2 medium containing each chemical at a concentration of 5 µM for 6 d. Next, we defined the chondrogenic index as the nodule area in each well/control well (empty well). We found that several chemicals had a chondrogenic index of more than twofold (Fig. 5f). Five of the chemicals identified in this screening (catanospermine, mevastatin, felodipine, nimodipine and bicalutamide) were confirmed to increase the intensity of Alcian blue staining (Fig. 5g). These results showed that the ExpLBM cells were suitable for use in a high-throughput screening system.

Development of a simple protocol for the mass production of uniform-sized hyaline cartilaginous-like tissues using ExpLBM cells

A protocol to mass-produce uniform-sized cartilaginous particles is valuable for the regeneration of a wide range of human articular cartilage defects or high-throughput drug screening for cartilage disease. Zwitterionic copolymers^34,35,36 induce cell self-aggregation following cell adhesion, condensation and delamination, thereby enabling the isolation of defined aggregates bound to polymer spots on the culture surface. We developed a protocol to produce numerous ExpLBM-derived cartilaginous particles of a uniform size using a polymer (Fig. 6a). PRRX1^3′tdTomato-reporter-ExpLBM cells proliferated and condensed only on polymer-coated spots and were co-expressed with PRRX1–tdTomato (Fig. 6b). Following culture using the 3DCI protocol in the presence of SphereMAX to prevent the particles from fusing, the condensed cells formed numerous uniform-sized particles (Fig. 6c,d). These particles were homogeneously stained with Alcian blue, Safranin O and antibodies against SOX9 and COL2 but not with antibodies against COL1 and COLX (Fig. 6e). We observed successful engraftment of these particles four weeks after transplantation in the articular cartilage defects of SCID rats (Fig. 6f). These results suggest that ExpLBM cells are a promising cell source for the mass production of hyaline cartilaginous-like tissues with a desired size/shape when combined with cell self-aggregation technology.

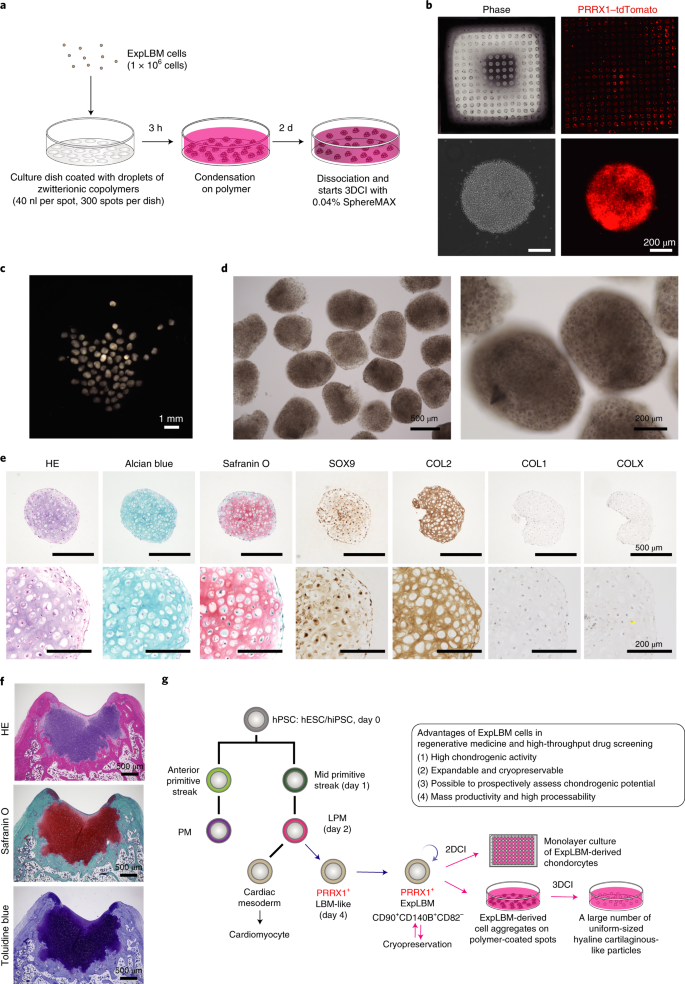

Fig. 6: Development of a simple protocol for mass-producing uniform-sized hyaline cartilaginous-like tissues using ExpLBM cells.

a,b, Experimental procedure for the mass production of uniform-sized cartilaginous particles. a, Ultralow-attachment dishes were coated with droplets of zwitterionic copolymers at intervals of 0.5 mm using a droplet spotter. Reporter-ExpLBM cells were added to polymer droplet-coated dishes and cultured in ExpLBM medium for 2 d, followed by fluorescence microscopy to observe the expression of tdTomato (b). Following cell self-aggregation with delamination, all cell aggregates were transferred to ultralow attachment culture plates and cultured with 3DCI medium in the presence of 0.04% SphereMAX. c,d, Images of mass-produced ExpLBM-derived cartilaginous particles. d, Magnified views of the mass-produced ExpLBM-derived cartilaginous particles. e, Histological analysis of mass-produced ExpLBM-derived cartilaginous particles. Particle sections were stained with HE, Alcian blue and Safranin O, or with antibodies against SOX9, COL2, COL1 and COLX. f, Engraftment of PRRX1^3′tdTomato-reporter-derived cartilaginous particles, generated using zwitterionic copolymers, into an articular cartilage defect in SCID rats. The knee joints were fixed at 4 weeks after transplantation and tissue sections were stained with HE, Safranin O and toluidine blue. b–f, Representative images are shown. g, Schematic view of the hierarchical induction of ExpLBM-derived chondrocytes.

Discussion

Our stepwise induction protocol (Fig. 6g) is based on the principle that a desired cell type is generated at lineage bifurcation by activating the signals that induce a given fate and/or repressing the activating signals that induce an alternate fate. Research on vertebrate developmental biology using model organisms has identified signals essential for limb-bud formation from LPM. For example, at LPM bifurcation into LBM or cardiac mesoderm, inhibition of WNT signalling is required for cardiac mesoderm specification in LPM in vivo³⁷. Furthermore, activation of BMP and FGF signalling is required to induce the differentiation of cardiac mesoderm from hPSCs-derived LPM²³. Our finding of the induction of PRRX1⁺ LBM-like cells (day 4) from LPM (day 2) corroborates the requirement for WNT activation and BMP blockade, which inhibits the cardiac mesoderm specification in LPM. In contrast, WNT and FGF signals interact to coordinate the outgrowth of LBM cells in the distal direction during limb development²⁴ and the TGF-β signalling pathway defines the fate of LBM cells in chondrogenesis, leading to endochondral ossification²⁷. Our expansion procedures, in which WNT and FGF signalling were activated and TGF-β signalling was inhibited, recapitulated the developmental processes required for limb-bud outgrowth that precedes chondrogenesis. In fact, the count values obtained from the RNA-seq analysis of 3DCI-treated ExpLBM (step 3, 42 d; Supplementary Fig. 5c) showed that ExpLBM-derived cartilaginous tissues were composed of a mixture of articular and hypertrophic chondrocytes, suggesting that ExpLBM cells can generate both articular cartilage and growth-plate cartilage tissues as well as in vivo LBM cells. Thus, our protocol not only recapitulated the in vivo signalling pathway that drives lineage bifurcation but also provides insights into signalling pathways and chromatin dynamics during human limb development, thereby shedding light on the pathogenesis of congenital skeletal diseases.

Although several studies have reported the induction of LBM-like cells from mouse PSCs^38,39 (Supplementary Table 4), we developed and validated a method to induce ontogenetically defined human LBM-like cells with the capacity to form homogeneous hyaline cartilaginous-like tissues from hPSCs. Just as important is the recapitulation of the developmental processes that induce the desired cell types, which is intimately associated with the epigenetic state of the transplanted cells. Induction of the desired terminally differentiated cells without recapitulating developmental processes may lead to unexpected results because epigenetic modifications occur during development or differentiation⁴⁰. Studies of abnormal epigenetic modifications in various diseases, including cancer^41,42,43,44, demonstrated the requirement of an appropriate epigenetic state at each differentiation step of hPSCs. Therefore, our ontogenetically defined ExpLBM cells may serve as a safe resource for generating engraftable chondrocytes/cartilaginous tissues that can be utilized in regenerative medicine.

The ontogenetically defined induction protocol for generating LBM-like cells established in this study is indispensable for the reconstitution of disease pathologies employing hiPSCs from patients with hereditary skeletal diseases. Thus, our system recapitulated the pathological phenotypes of COL2pathy that typically affect the limbs and axial skeletogenesis. Although cell-context dependency in pathogenic processes is the focus of studies of tumorigenesis^45,46, a recent study reported cell-context dependency when recapitulating the disease phenotypes using iPSCs derived from a patient with fibrodysplasia ossificans progressiva, which is characterized by endochondral heterotopic ossification in soft tissues⁷. Therefore, the utility of our induction system is applicable to assess the key features of human limb development and address the causative molecular mechanisms associated with skeletal disease that specifically affect limb skeletogenesis in a cell context-dependent manner.

Several protocols have been developed to induce the differentiation of chondrocytes or cartilaginous tissues from hPSCs via PM⁵, mesendoderm^3,4,6 or neural crest/ectomesenchyme-derived progenitors⁶ (summarized in Supplementary Table 4); however, they lack the ability to evaluate the differentiation capacity of the intermediate progenitors of chondrocytes. ExpLBM cells can be passaged and cryopreserved without a loss of chondrogenic capacity. In particular, the chondrogenic capacity of ExpLBM cells can be prospectively assessed by analysing the expression of the cell-surface markers CD90, CD140B and CD82. Compared with established hPSC-derived chondrocyte-induction protocols that include a protocol for generating expandable SOX9-expressing CD271⁺PDGFRα⁺CD73⁺ chondrogenic ectomesenchymal cells⁶, our protocols are unique because they yield expandable and cryopreserved homogeneous chondrocyte progenitors that enable the prospective assessment of the chondrogenic capacity required for forming homogenous hyaline cartilaginous-like tissues. Considering that our procedure induces hPSCs to form terminally differentiated chondrocytes using defined xeno-free culture media without animal serum, our method using ExpLBM cells can yield a stable and sufficient supply of chondrocyte/cartilaginous tissues in vitro with high reproducibility.

In biomedical tissue engineering using cartilage tissues for application in regenerative medicine and high-throughput drug screening, the development of protocols to achieve mass productivity and high processability is critically important^3,4,47. Most cell sources in this field are largely based on the utility of human mesenchymal stromal cells, which are expanded on culture dishes following their isolation from human tissues^48,49. However, difficulties are caused by quality assessment, which is largely dependent on the donor characteristics and the limitation of mass production of quality-assured human mesenchymal stromal cells with chondrogenic capacity^50,51,52. Thus, the ExpLBM cells used in our protocol confer the advantage of enabling expansion through serial passage while maintaining its quality regarding the chondrogenic differentiation capacity through the analysis of cell-surface markers. Furthermore, a single plating of ExpLBM cells on a culture dish coated with many droplets of cell self-aggregation-inducible specific charged polymers form numerous uniform-sized hyaline cartilaginous-like tissues. This supports the use of ExpLBM cells in biomedical tissue engineering. We also showed that COL2pathy patient-derived ExpLBM cells are useful for the identification of therapeutic candidates when combined with our 2DCI protocol (Fig. 5). Our screening protocol includes an easy evaluation method for drug screening, demonstrating that disease-specific ExpLBM cells can be specialized for establishing therapeutic strategies.

We have shown that ontogenetically defined human LBM-like cells with prospective assessment of chondrogenic capacity can be generated from hPSCs. Our protocol may facilitate the study of human skeletal development and hereditary skeletal diseases, and may also contribute to regenerative medicine and the discovery of drugs targeting cartilage-related diseases.
