A multimodal machine learning model for the stratification of breast cancer risk

Nature Biomedical Engineering volume 9, pages 356–370 (2025)Cite this article

Subjects

Abstract

Machine learning models for the diagnosis of breast cancer can facilitate the prediction of cancer risk and subsequent patient management among other clinical tasks. For the models to impact clinical practice, they ought to follow standard workflows, help interpret mammography and ultrasound data, evaluate clinical contextual information, handle incomplete data and be validated in prospective settings. Here we report the development and testing of a multimodal model leveraging mammography and ultrasound modules for the stratification of breast cancer risk based on clinical metadata, mammography and trimodal ultrasound (19,360 images of 5,216 breasts) from 5,025 patients with surgically confirmed pathology across medical centres and scanner manufacturers. Compared with the performance of experienced radiologists, the model performed similarly at classifying tumours as benign or malignant and was superior at pathology-level differential diagnosis. With a prospectively collected dataset of 191 breasts from 187 patients, the overall accuracies of the multimodal model and of preliminary pathologist-level assessments of biopsied breast specimens were similar (90.1% vs 92.7%, respectively). Multimodal models may assist diagnosis in oncology.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

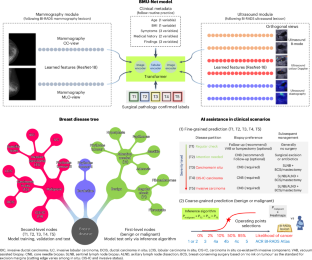

Fig. 1: The overall study design for breast cancer risk stratification and patient care.

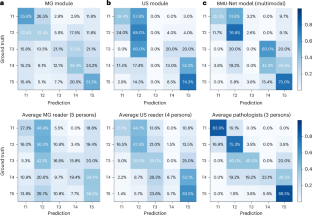

Fig. 2: The confusion-matrix comparison between our AI system and human experts at fine-grained breast disease partition.

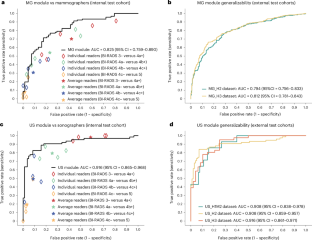

Fig. 3: Performance of individual modules and readers at highly general coarse-grained breast cancer assessment via inference algorithm.

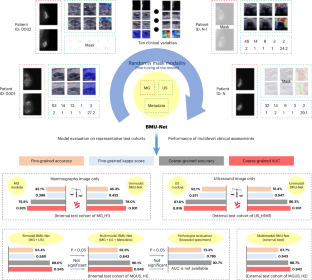

Fig. 4: The adaptability of the BMU-Net model for breast cancer risk stratification to real-world clinical settings.

Similar content being viewed by others

Data availability

The main data supporting the results in this study are available within the paper and its Supplementary Information. The mammography, ultrasound and multimodal datasets from the First Affiliated Hospital of Anhui Medical University (two branches), Xuancheng People’s Hospital, Nanjing Hospital affiliated to Nanjing Medical University, and Fuyang Cancer Hospital of China are protected because of patient privacy, yet some data can be made available for academic purposes from the corresponding author on reasonable request and with permission from the hospitals. Source data for Figs. 2 and 3 are provided with this paper.

Code availability

The codes used in this study are available in GitHub at https://github.com/Qian-IMMULab/BMU-Net (ref. 55). The pretrained weights for the mammography module are publicly available – Mirai model28. Custom codes and the annotation tool for the deployment of the AI system are available for research purposes from the corresponding author on reasonable request.
