Extended Data Fig. 9: Single-template sequencing results.

From: A fuzzy sequencer for rapid DNA fragment counting and genotyping

Extended Data Fig. 9: Single-template sequencing results.

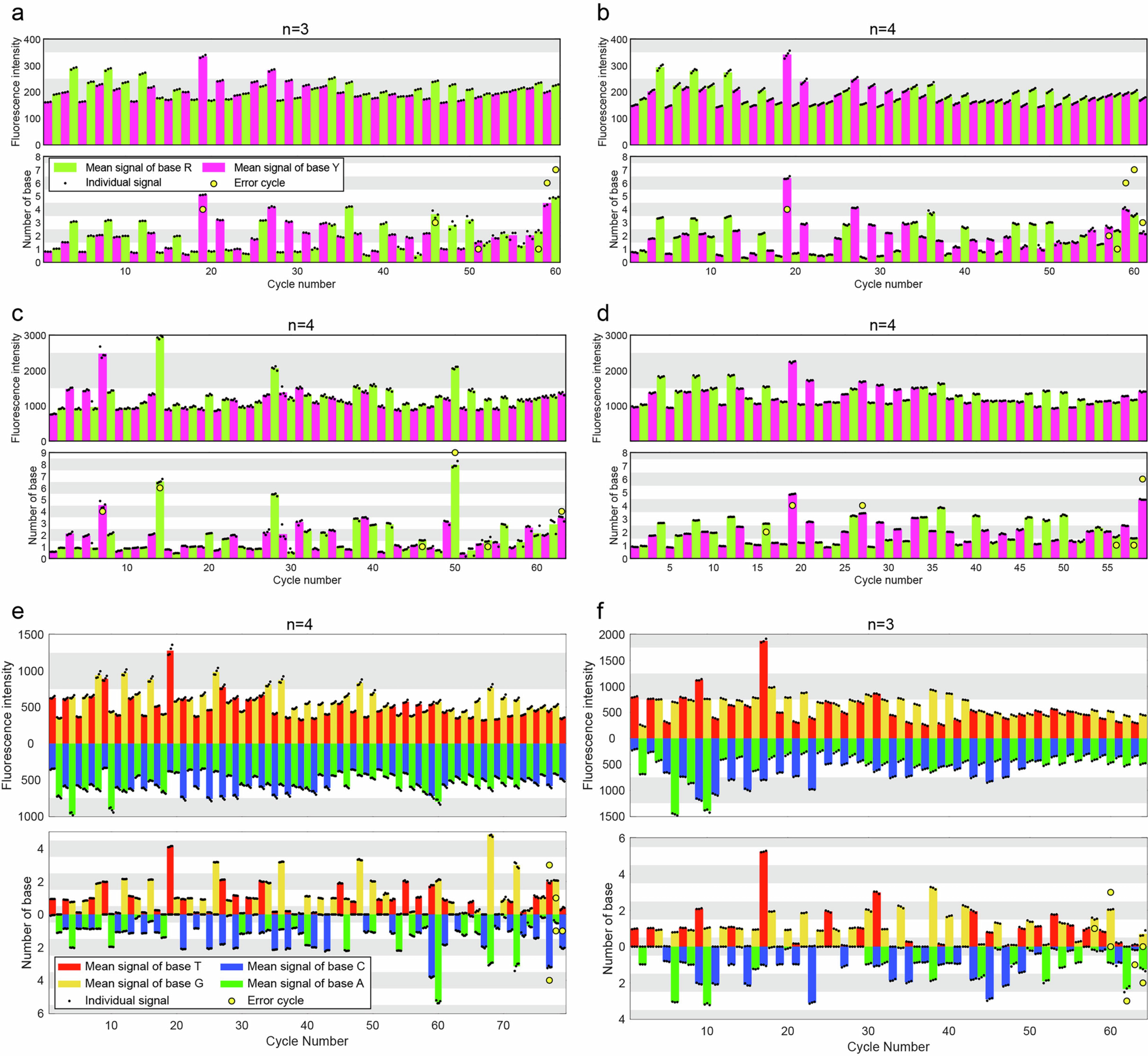

(a–d) BitSeq using PO. (e, f) SuperBitSeq using PO and TG. Top of each panel: fluorescent intensities. Bottom of each panel: dephasing-corrected signals. Black dots represent signal of each replicates. Bars represent the mean signal of replicates. Yellow dots indicate the theoretical values where the corresponding mean signal is erroneous. a-d share the same legend and e-f share the same legend.
