Label-free navigation system for grading prostate tumour malignancy in situ via tissue pH and prostate-specific antigen activity

Nature Biomedical Engineering (2025)Cite this article

Subjects

Abstract

Radical prostatectomy is a standard curative approach for high-risk prostate cancer, yet accurately defining tumour margins during surgery remains a major challenge. Intraoperative assessment of prostate tumour malignancy—particularly those with high aggressiveness catalogued in Gleason grade group (GG) ≥ 3—is crucial to prevent positive surgical margins and minimize postoperative complications. Here we develop a surface-enhanced Raman scattering (SERS)-based navigation system for intraoperative localization of high-grade malignant regions by simultaneously accessing tissue acidity and prostate-specific antigen (PSA) enzymatic activity. This system integrates a sampling pen for automated biomarker extraction from tissue surfaces, a nano-imprinted SERS array producing a ratiometric Raman signal in response to acidity and PSA activity, and a two-dimensional deep-learning model for rapid Raman spectral interpretation. We show that the system can intraoperatively identify GG ≥ 3 malignancies in fresh prostate tissues from 144 Chinese patients with an area under the receiver operating characteristic curve of 0.89. This SERS-based navigation system holds strong potential to enhance surgical precision, minimize tumour residue and ultimately improve patient outcomes.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

Fig. 1: An on-site SERS navigation system for grading the malignancy of PCa.

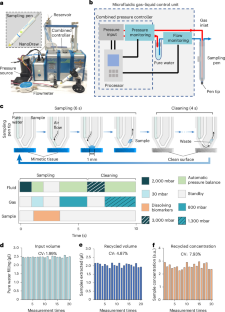

Fig. 2: Sampling module enabling automatic sample extraction from tissue surfaces.

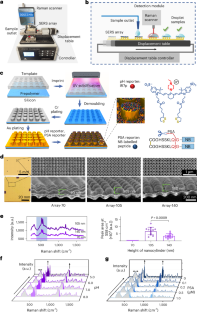

Fig. 3: Detection module measuring sample acidity and PSA activity simultaneously.

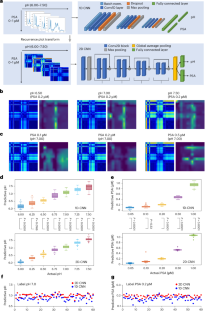

Fig. 4: A 2D-transformation-based deep-learning model for Raman spectral analysis.

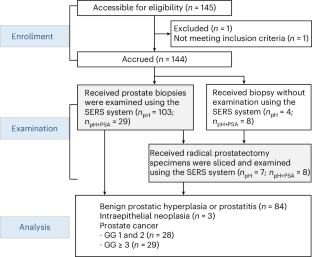

Fig. 5: A consolidated standard for the examination of patients with PCa using the SERS navigation system.

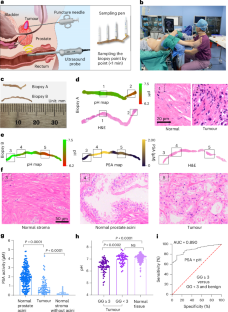

Fig. 6: On-site navigation system for classifying the GG of prostate biopsies.

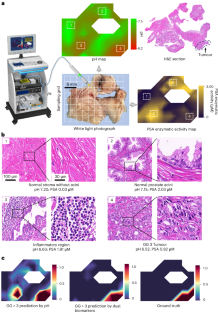

Fig. 7: The navigation system locates malignant regions in patient prostate sections.
