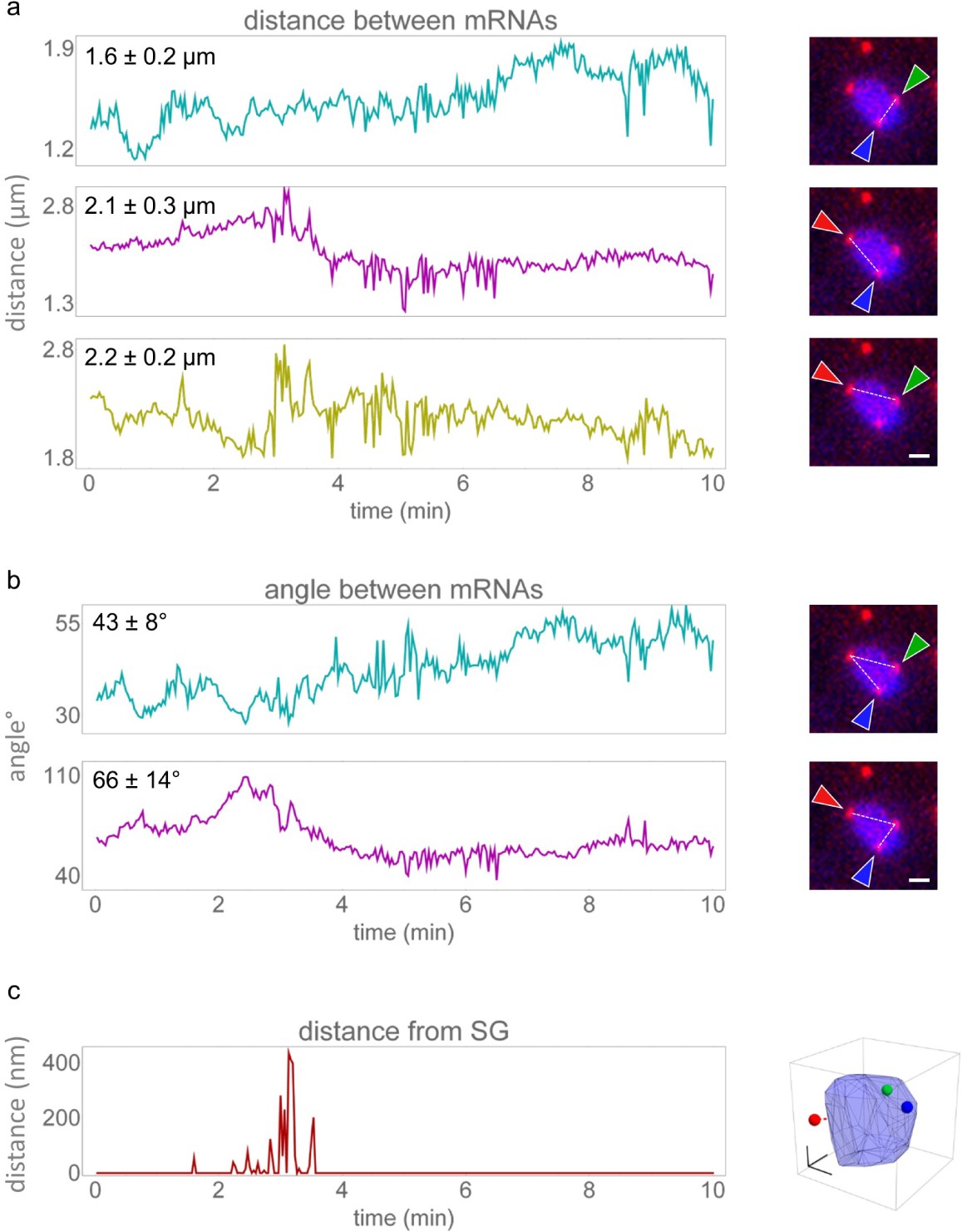

Supplementary Figure 3: The distance and angle between mRNAs within a single stress granule can remain consistent over time.
From: Multicolour single-molecule tracking of mRNA interactions with RNP granules
Quantification of the relative locations of KDM5B mRNAs shown in Fig. 4b and c, and Supplementary Movies 11 and 12. The distances (a) and the angles (b) between two KDM5B mRNAs interacting with the same SG are shown. The pair of mRNAs used for distance and angle calculations are shown with arrows (right). The average distances and angles are shown in the left top insets (± SD) from n = 300 time points, from 2 cells collected from 2 independent experiments. (c) Distance of one mRNA (red dot) from the surface of the stress granule (blue). This mRNA exits and re-enters the SG
