Extended Data Fig. 5: Comparison of cell isolation methods and reference datasets.

From: Combined single-cell and spatial transcriptomics reveal the molecular, cellular and spatial bone marrow niche organization

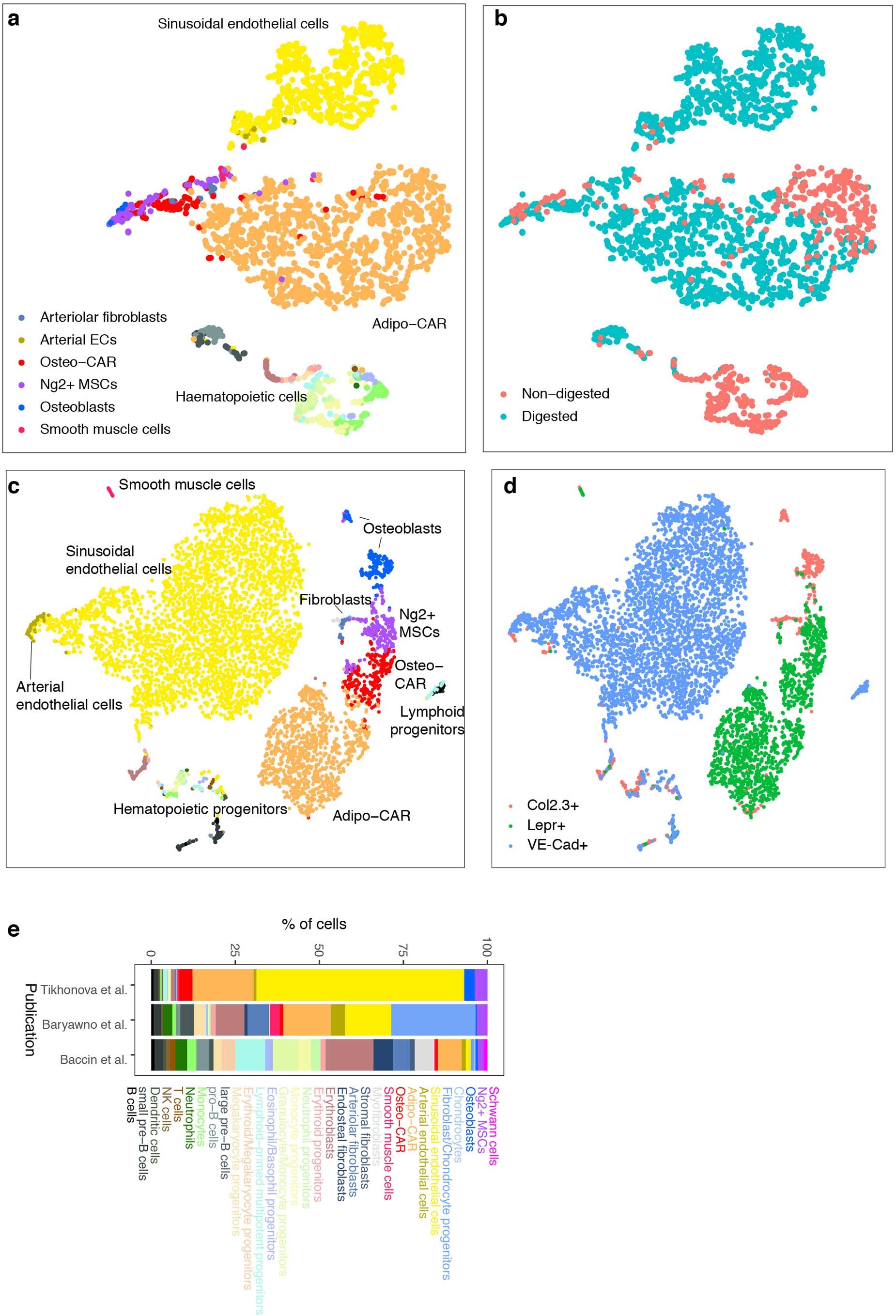

Extended Data Fig. 5

a,b, Additional scRNAseq data was generated as described, except that BM was derived by flushing bones and subjected or not subjected to enzymatic digestion. Data was projected to two dimensions using t-SNE and cell type labels were assigned using the anchoring approach implemented in seurat353. N=2411 cells are shown. c,d, Single-cell RNA-seq data from a recent study of different genetically labelled populations from flushed BM26 was projected to two dimensions using t-SNE and cell type labels were assigned using the anchoring approach implemented in seurat353. N=6617 cells are shown. e, Comparison of cell type frequencies between various published datasets. For Tikhonova et al.26, n=6617 cells, Baryawno et al.25, n=25933 cells, Baccin et al., n=7497 cells.

Source data
