Extended Data Fig. 5: Dynamin and clathrin fluorescence during endocytosis of the example shown in Fig. 3.
From: Dynamin-dependent vesicle twist at the final stage of clathrin-mediated endocytosis

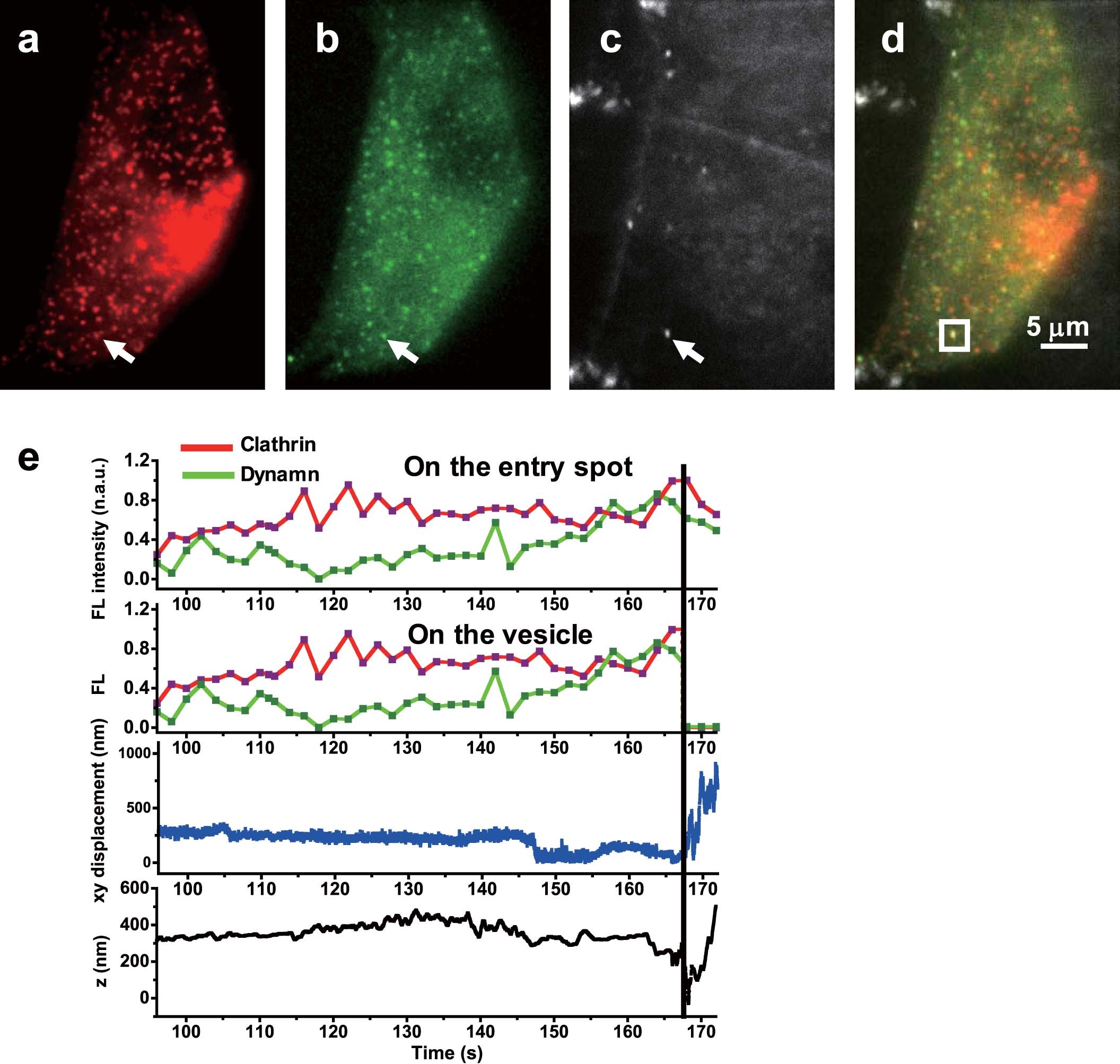

a, Clathrin channel. b, Dynamin channel. c, Focused scattering channel for AuNRs. d, Overlapped images. e, Time evolution of clathrin and dynamin fluorescence on the entry spot, clathrin and dynamin fluorescence on the vesicle, the xy-, and the z-displacement of the particle from the entry spot during an endocytosis event. The dashed line indicates the time of fission point. The experiments have been performed 5 times and with similar results obtained.
