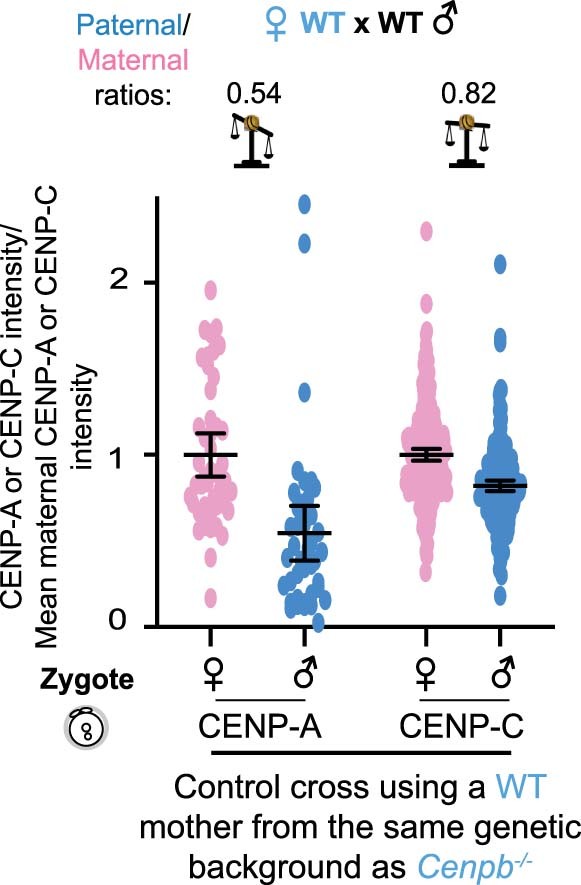

Extended Data Fig. 9: Genetic pathway for centromere equalization.
From: Epigenetic, genetic and maternal effects enable stable centromere inheritance
a, Quantifications of maternal (pink) and paternal (blue) CENP-A and CENP-C intensities in zygotes from a WT x WT control for the Cenpb−/− strain38, with average paternal/maternal CENP-A or CENP-C ratios above; N = 46, 42, 237, 231 centromeres (left to right). Error bars: median ± 95% CI. Although these animals are in a CF-1/C57BL/6J/DBA/2J background, CENP-A and CENP-C ratios in WT zygotes using mothers from this background are consistent with those of C57BL/6J alone (Fig. 6b,f). Source numerical data are available in source data.
