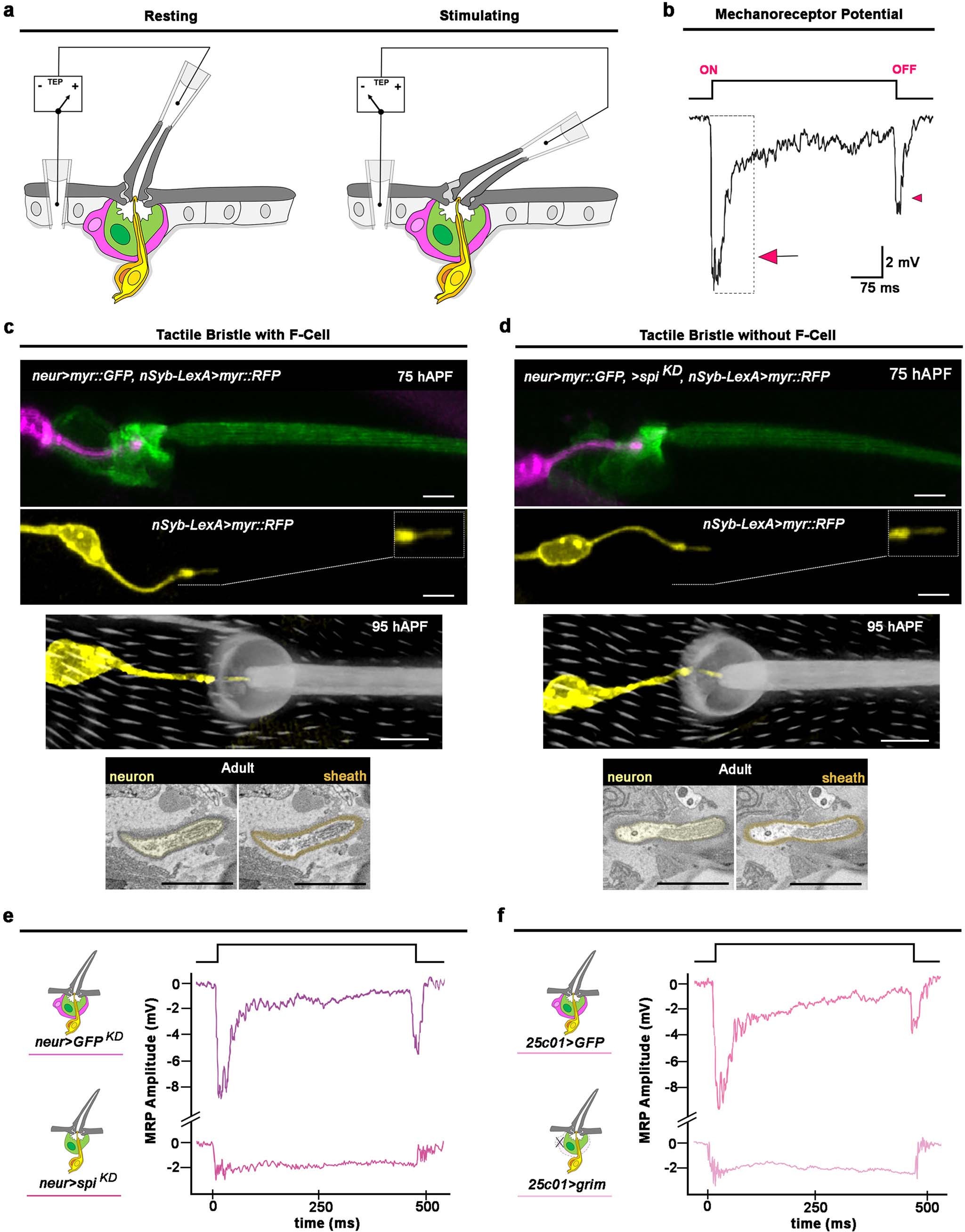

Extended Data Fig. 10: Assessing touch-evoked mechanotransduction in the tactile bristle.

(a) Diagram showing the set-up for extracellular recording from tactile bristles. The three non-neuronal cells of the tactile organ (F-Cell, magenta; socket cell, green; sheath cell, orange), the mechanosensory neuron (yellow) and its connection to the base of the hair shaft are shown. Clipping the hollow hair shaft, placing a recording electrode over the tip and a reference electrode in the supporting epithelium allows the measurement of the transepithelial potential (TEP) at rest and provides electrical access to the underlying neuron. Displacement of the hair shaft toward the body evokes a robust downward drop in the TEP, measured as a mechanoreceptor potential (MRP) of the neuron (see Methods). (b) MRP and superimposed action potential trains recorded upon 30 μm ramp-and-hold displacement of the hair shaft toward the body surface. The neuron generates a robust response at the onset of the stimulus (arrow). The MRP slowly declines towards resting values during the stimulus. A robust but smaller response is also recorded when the neuron returned to its resting position (arrowhead). (c-d) Morphology and innervation in controls (c) or in tactile bristles lacking the F-Cell (d). Top row: morphology and innervation of the bristle. Second row: morphology of the mechanosensory neuron, with dendritic tip zoomed-in view displayed in top right corner. Third row: dendritic tip insertion at the base of the bristle. Bottom row: SBF-SEM section of the dendritic tip. Note that both the structure and innervation of the tactile bristle, as well as the morphology of the adult neuron and sheath cell are normal when F-Cell specification is prevented. (e) Representative voltage traces from control bristles (top) and bristles lacking the F-Cell (bottom). See Fig. 6 for quantifications. (f) Representative traces from control bristles (top) and bristles with ablated F-Cell (bottom). See Fig. 6 for quantifications. Results are representative of three independent experiments. Scale bars: 5 μm. Full genotypes are listed in Supplementary Table 1.
