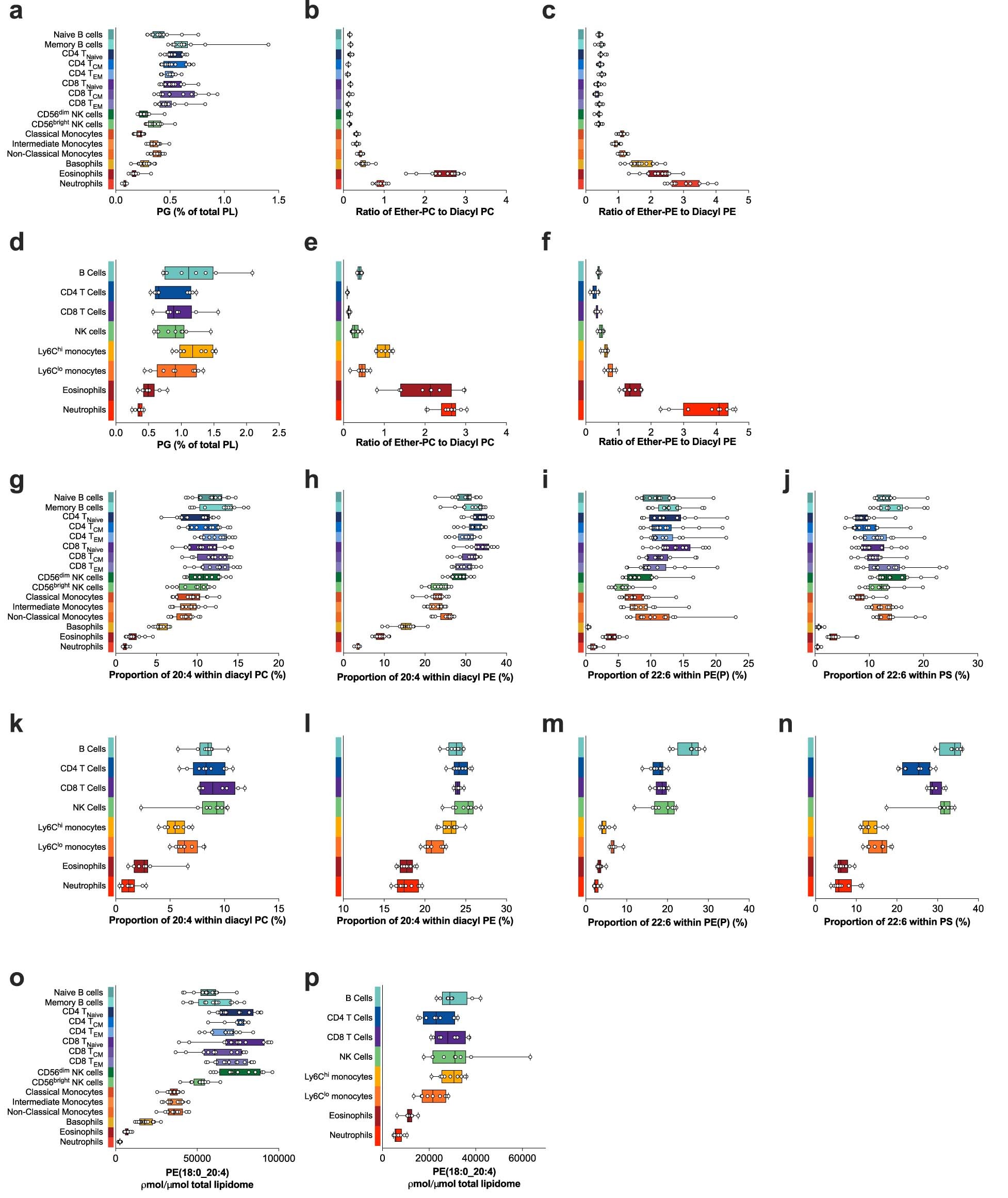

Extended Data Fig. 1: Changes in specific lipid features in human and mouse immune cells.
From: A lipid atlas of human and mouse immune cells provides insights into ferroptosis susceptibility
a-p, Levels of specific lipid features in human (a-c,g-j,o) and mouse (d-f,k-n,p) immune cells. Data are shown as a box and whiskers, with the lower and upper limits of the box corresponding to the 25th and 75th percentile, the line within the box being the median, and the whiskers extending to the minimum and maximum values. P values for pairwise comparisons are shown in Table S1 and Table S2. In a-c,g-j,o, the n value denoting the number of individual human donor for each cell type are as follows: 14 for naive B cells, CD4 TCM, CD8 TNaive, classical monocytes, intermediate monocytes, and basophils; 13 for Memory B cells, CD4 TNaive, CD4 TEM, CD8 TEM, non-classical monocytes, and eosinophils; 12 for CD8 TCM, CD56dim NK cells and CD56bright NK cells; 11 for neutrophils. In d-f,k-n,p, the n value denoting the number of mice for each cell type are as follows: 8 for B cells and CD8 T cells; 9 for CD4 T cells, eosinophils, Ly6Clo monocytes and NK cells; 10 for Ly6Chi monocytes and neutrophil.
