Extended Data Fig. 7: Correlation maps for Lipid CLEM of various lipid classes and species.
From: Visualizing suborganellar lipid distribution using correlative light and electron microscopy

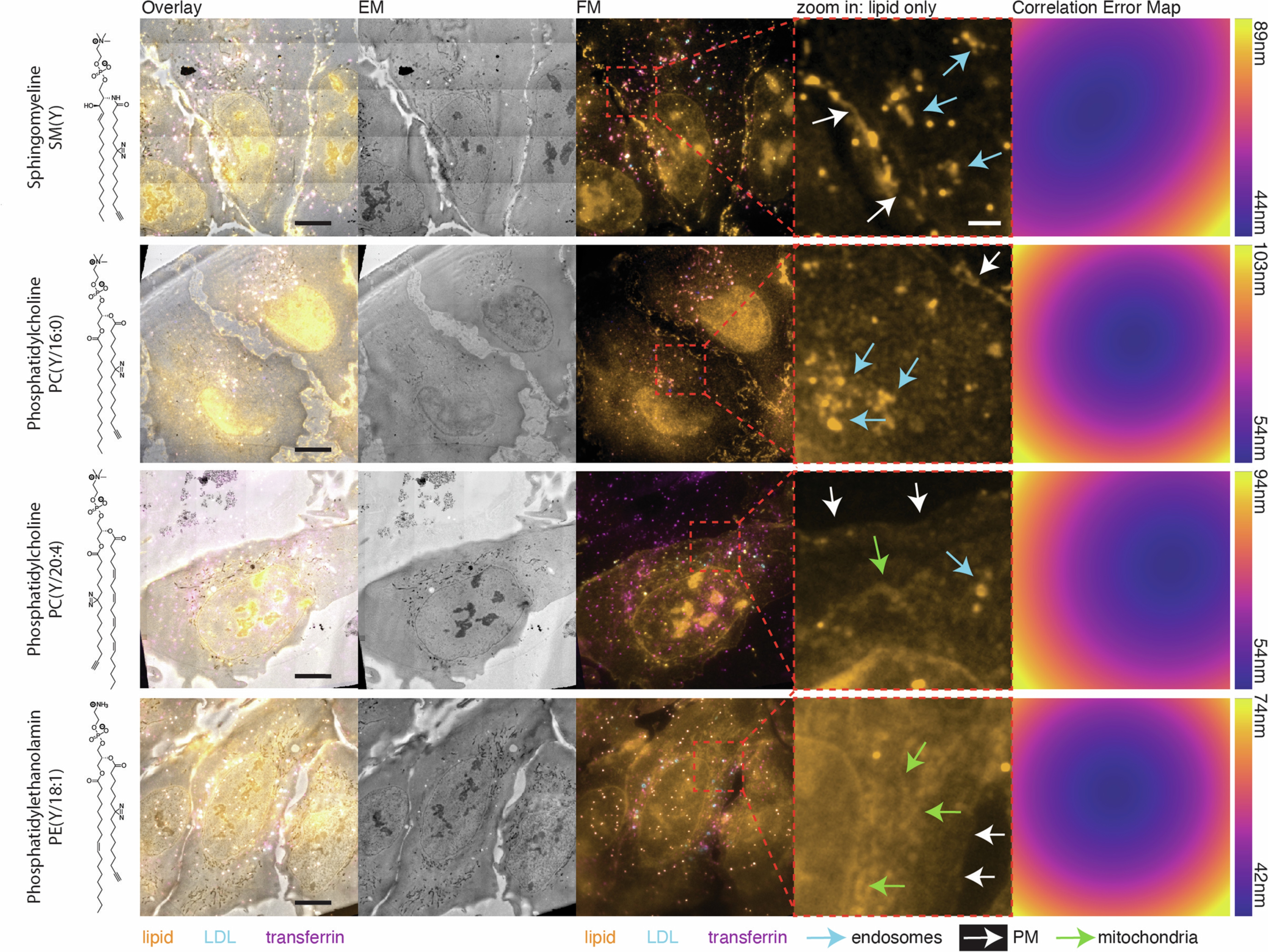

All chemical structures are indicated on the left. Representative EM, FM and correlated images are shown for all lipids (the same images are shown in Main Fig. 4). A region of interest of each cell highlights the differential lipid distribution for the different lipids tested. Correlation error maps of the whole images are indicated on the right. Scale bar: 10 µm, zoom in: 1 µm. Independent experiments per lipid type: 2.
