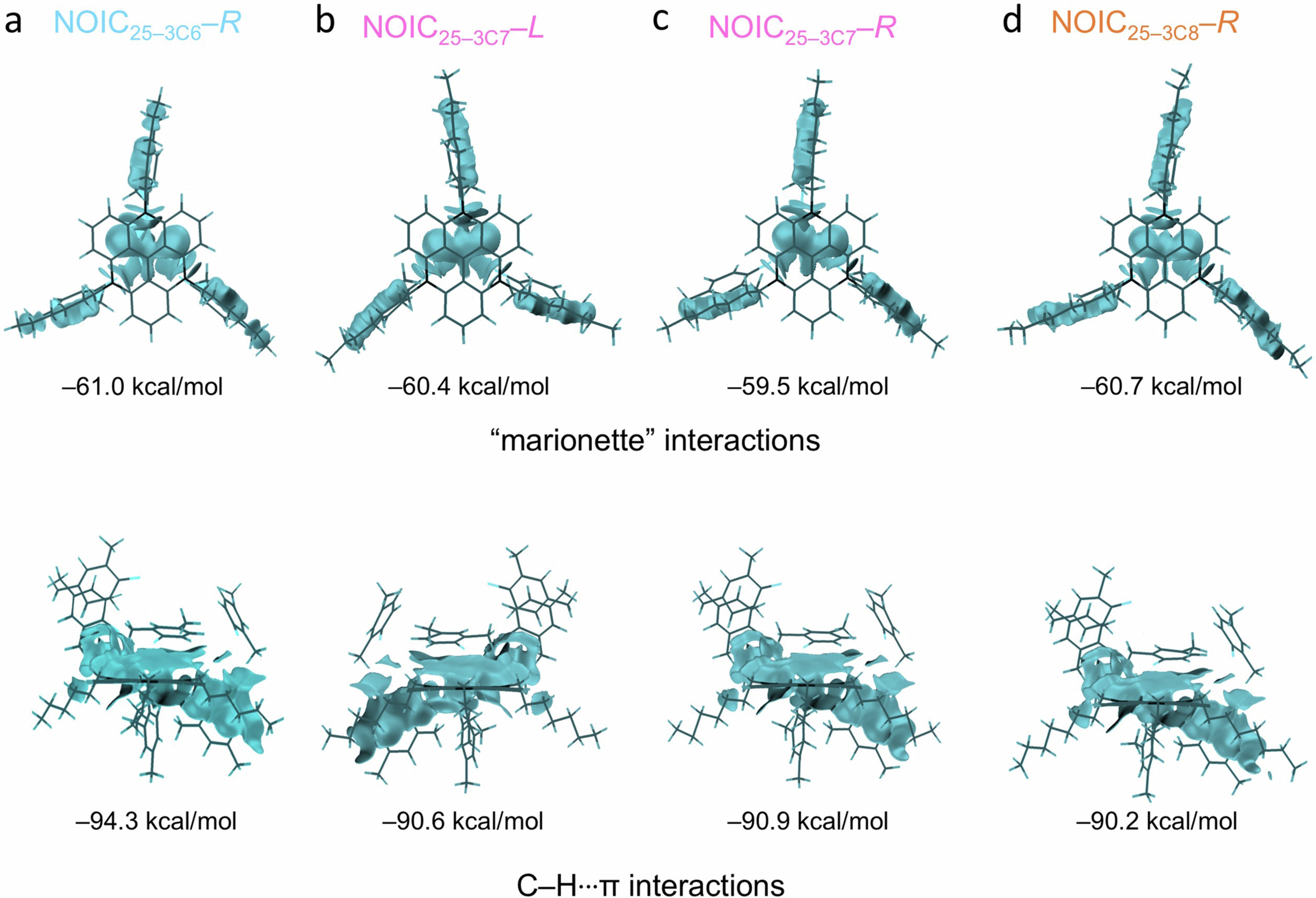

Extended Data Fig. 3: Calculations of non-covalent interactions.
From: Self-assembly of chiroptical ionic co-crystals from silver nanoclusters and organic macrocycles
“Marionette” interactions (top) and C‒H‧‧‧π interactions (bottom) between a TATA+ ion and a Ag25(SR)18− nanocluster in a, NOIC25−3C6‒R, b, NOIC25−3C7‒L, c, NOIC25−3C7‒R, and d, NOIC25−3C8‒R.
