Abstract

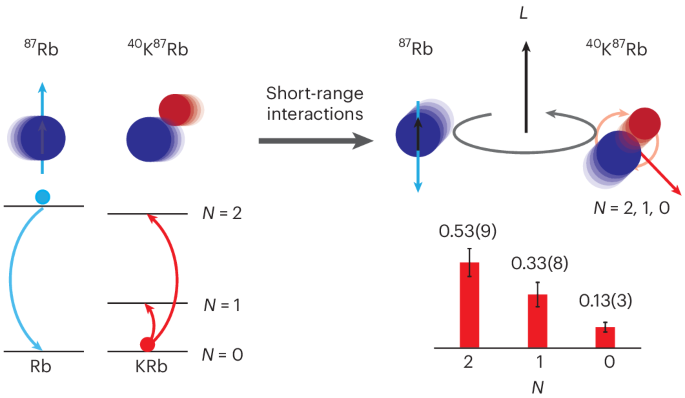

Energy transfer between different mechanical degrees of freedom in atom–molecule collisions has been studied and largely understood. However, systems involving spins remain less explored. In this study, we directly observed energy transfer from atomic hyperfine to molecular rotation in the 87Rb (\(| {F}_{a},{M}_{{F}_{a}}\rangle =| 2,2\rangle\)) + 40K87Rb (X1Σ+, rotational state N = 0) ⟶ Rb (\(| 1,1\rangle\)) + KRb (N = 0, 1, 2) collision with state-to-state precision. We also performed quantum scattering calculations that rigorously included the coupling between spin and rotational degrees of freedom at short range under the assumption of rigid-rotor KRb monomers moving along a single potential energy surface. The calculated product rotational state distribution deviates from the observations even after extensive tuning of the atom–molecule potential energy surface. In addition, our ab initio calculations indicate that spin–rotation coupling is enhanced close to a conical intersection that is energetically accessible at short range. This, together with the deviation, suggests that vibrational degrees of freedom and conical intersections play an important part in the coupling. Our observations confirm that spin is coupled to mechanical rotation at short range and establish a benchmark for future theoretical studies.
This is a preview of subscription content, access via your institution
Access options
Similar content being viewed by others
Data availability
The data supporting the findings of this study are available from the corresponding authors on request. Experimental data and related processing codes are also accessible at Harvard Dataverse via https://doi.org/10.7910/DVN/O24MN4 (ref. 54).
References
Herschbach, D. R. Molecular dynamics of elementary chemical reactions (Nobel lecture). Angew. Chem. Int. Ed. Engl. 26, 1221–1243 (1987).
Lee, Y. T. et al. Molecular beam studies of elementary chemical processes (Nobel lecture). Angew. Chem. Int. Ed. Engl. 26, 939–951 (1987).
Wang, T. et al. Dynamical resonances in chemical reactions. Chem. Soc. Rev. 47, 6744–6763 (2018).
Zhao, B. & Guo, H. State-to-state quantum reactive scattering in four-atom systems. Wiley Interdiscip. Rev. Comput. Mol. Sci. 7, e1301 (2017).
Althorpe, S. C. & Clary, D. C. Quantum scattering calculations on chemical reactions. Annu. Rev. Phys. Chem. 54, 493–529 (2003).
Rebentrost, F. Electronic-to-rotational energy transfer in the system F + D2. Chem. Phys. Lett. 58, 18–22 (1978).
Yuan, D. et al. Observation of the geometric phase effect in the H + HD → H2 + D reaction. Science 362, 1289–1293 (2018).
Klein, A. et al. Directly probing anisotropy in atom–molecule collisions through quantum scattering resonances. Nat. Phys. 13, 35–38 (2017).
Dong, W. et al. Transition-state spectroscopy of partial wave resonances in the F + HD reaction. Science 327, 1501–1502 (2010).
de Jongh, T. et al. Imaging the onset of the resonance regime in low-energy NO–He collisions. Science 368, 626–630 (2020).
Krems, R. & Dalgarno, A. Electronic and rotational energy transfer in F (2P1/2) + H2 collisions at ultracold temperatures. J. Chem. Phys. 117, 118–123 (2002).
Alexander, M. H., Manolopoulos, D. E. & Werner, H.-J. An investigation of the F + H2 reaction based on a full ab initio description of the open-shell character of the F (2P) atom. J. Chem. Phys. 113, 11084–11100 (2000).
Maussang, K., Egorov, D., Helton, J. S., Nguyen, S. V. & Doyle, J. M. Zeeman relaxation of CaF in low-temperature collisions with helium. Phys. Rev. Lett. 94, 123002 (2005).
Lara, M., Bohn, J. L., Potter, D., Soldán, P. & Hutson, J. M. Ultracold Rb–OH collisions and prospects for sympathetic cooling. Phys. Rev. Lett. 97, 183201 (2006).
Morita, M., Kosicki, M. B., Żuchowski, P. S. & Tscherbul, T. V. Atom-molecule collisions, spin relaxation, and sympathetic cooling in an ultracold spin-polarized Rb(2S)−SrF(2Σ+) mixture. Phys. Rev. A 98, 042702 (2018).
Son, H., Park, J. J., Ketterle, W. & Jamison, A. O. Collisional cooling of ultracold molecules. Nature 580, 197–200 (2020).
Jurgilas, S. et al. Collisions between ultracold molecules and atoms in a magnetic trap. Phys. Rev. Lett. 126, 153401 (2021).
Walker, T. G. & Happer, W. Spin-exchange optical pumping of noble-gas nuclei. Rev. Mod. Phys. 69, 629 (1997).
Tscherbul, T. V., Zhang, P., Sadeghpour, H. R. & Dalgarno, A. Anisotropic hyperfine interactions limit the efficiency of spin-exchange optical pumping of 3He nuclei. Phys. Rev. Lett. 107, 023204 (2011).
Wang, X.-Y. et al. Magnetic Feshbach resonances in collisions of 23Na40K with 40K. New J. Phys. 23, 115010 (2021).
Park, J. J. et al. Spectrum of Feshbach resonances in NaLi + Na collisions. Phys. Rev. X 13, 031018 (2023).
Bird, R. C., Tarbutt, M. R. & Hutson, J. M. Tunable Feshbach resonances in collisions of ultracold molecules in 2Σ states with alkali-metal atoms. Phys. Rev. Res. 5, 023184 (2023).
Park, J. J., Lu, Y.-K., Jamison, A. O., Tscherbul, T. V. & Ketterle, W. A Feshbach resonance in collisions between triplet ground-state molecules. Nature 614, 54–58 (2023).
Yang, H. et al. Creation of an ultracold gas of triatomic molecules from an atom–diatomic molecule mixture. Science 378, 1009–1013 (2022).
Tizniti, M. et al. The rate of the F + H2 reaction at very low temperatures. Nat. Chem. 6, 141–145 (2014).
Yang, T. et al. Enhanced reactivity of fluorine with para-hydrogen in cold interstellar clouds by resonance-induced quantum tunnelling. Nat. Chem. 11, 744–749 (2019).
Mayle, M., Ruzic, B. P. & Bohn, J. L. Statistical aspects of ultracold resonant scattering. Phys. Rev. A 85, 062712 (2012).
Mayle, M., Quéméner, G., Ruzic, B. P. & Bohn, J. L. Scattering of ultracold molecules in the highly resonant regime. Phys. Rev. A 87, 012709 (2013).
Christianen, A., Karman, T. & Groenenboom, G. C. Quasiclassical method for calculating the density of states of ultracold collision complexes. Phys. Rev. A 100, 032708 (2019).
Liu, Y. et al. Photo-excitation of long-lived transient intermediates in ultracold reactions. Nat. Phys. 16, 1132–1136 (2020).
Gregory, P. D., Blackmore, J. A., Bromley, S. L. & Cornish, S. L. Loss of ultracold 87Rb133Cs molecules via optical excitation of long-lived two-body collision complexes. Phys. Rev. Lett. 124, 163402 (2020).
Gersema, P. et al. Probing photoinduced two-body loss of ultracold nonreactive bosonic 23Na87Rb and 23Na39K molecules. Phys. Rev. Lett. 127, 163401 (2021).
Bause, R. et al. Collisions of ultracold molecules in bright and dark optical dipole traps. Phys. Rev. Res. 3, 033013 (2021).
Nichols, M. A. et al. Detection of long-lived complexes in ultracold atom–molecule collisions. Phys. Rev. X 12, 011049 (2022).
Bause, R., Christianen, A., Schindewolf, A., Bloch, I. & Luo, X.-Y. Ultracold sticky collisions: theoretical and experimental status. J. Phys. Chem. A 127, 729–741 (2023).
Jachymski, K., Gronowski, M. & Tomza, M. Collisional losses of ultracold molecules due to intermediate complex formation. Phys. Rev. A 106, L041301 (2022).
Tscherbul, T. V. & D’Incao, J. P. Ultracold molecular collisions in magnetic fields: efficient incorporation of hyperfine structure in the total rotational angular momentum representation. Phys. Rev. A 108, 053317 (2023).
Ni, K.-K. et al. A high phase-space-density gas of polar molecules. Science 322, 231–235 (2008).
Hu, M.-G. et al. Direct observation of bimolecular reactions of ultracold KRb molecules. Science 366, 1111–1115 (2019).
Schweiger, A. and Jeschke, G. Principles of Pulse Electron Paramagnetic Resonance (Cambridge Univ. Press, 2001)
Aldegunde, J. & Hutson, J. M. Hyperfine structure of alkali-metal diatomic molecules. Phys. Rev. A 96, 042506 (2017).
Croft, J. et al. Universality and chaoticity in ultracold K + KRb chemical reactions. Nat. Commun. 8, 15897 (2017).
Kendrick, B. K. et al. Non-adiabatic quantum interference in the ultracold Li + LiNa → Li2 + Na reaction. Phys. Chem. Chem. Phys. 23, 5096–5112 (2021).
Morita, M., Krems, R. V. & Tscherbul, T. V. Universal probability distributions of scattering observables in ultracold molecular collisions. Phys. Rev. Lett. 123, 013401 (2019).
Majorana, E. Atomi orientati in campo magnetico variabile. Nuovo Cim. 9, 43–50 (1932).
Santoro, F. & Petrongolo, C. Nonadiabatic wave packet dynamics of NO2 on the \({\tilde{X}}^{2}\)/\({\tilde{X}}^{2}\) conicalintersection. J. Chem. Phys. 110, 4419–4427 (1999).
Yarkony, D. R. Diabolical conical intersections. Rev. Mod. Phys. 68, 985–1013 (1996).
Morita, M. et al. Signatures of non-universal quantum dynamics of ultracold chemical reactions of polar alkali dimer molecules with alkali metal atoms: Li(2S) + NaLi(a3Σ+) → Na(2S) + Li2(\({a}^{3}{\Sigma }_{u}^{+}\)). J. Phys. Chem. Lett. 14, 3413–3421 (2023).
Herzberg, G.Spectra of Diatomic Molecules (D. Van Nostrand, 1950)
Liu, Y., Grimes, D. D., Hu, M.-G. & Ni, K.-K. Probing ultracold chemistry using ion spectrometry. Phys. Chem. Chem. Phys. 22, 4861–4874 (2020).
Borsalino, D. et al. Efficient optical schemes to create ultracold KRb molecules in their rovibronic ground state. Phys. Rev. A 90, 033413 (2014).
Liu, Y. et al. Precision test of statistical dynamics with state-to-state ultracold chemistry. Nature 593, 379–384 (2021).
Hansson, A. & Watson, J. K. A comment on Hönl-London factors. J. Mol. Spectrosc. 233, 169–173 (2005).
Liu, Y., Zhu, L., Luke, J., Babin, M. C. and Ni, K.-K. Experimental data for hyperfine-to-rotational energy transfer in ultracold atom-molecule collisions. Harvard Dataverse https://doi.org/10.7910/DVN/O24MN4 (2024).
Acknowledgements
We thank M. Frye, Y. Liu, J. Zhang, Z. Li and A. Houwman for helpful discussions. The experimental team (Y.-X.L., L.Z., J.L., M.C.B. and K.-K.N.) was supported by the US Department of Energy (DOE), Office of Science, Basic Energy Sciences (award no. DE-SC0024087; molecule state detection), the Center for Ultracold Atoms (an NSF Physics Frontiers Center, PHY-2317134; atom state detection) and AFOSR DURIP FA9550-23-1-0122 (instrument upgrade). The Warsaw team (M.G., H.L. and M.T.) acknowledges the European Union (ERC, 101042989, QuantMol) and the PL-Grid Infrastructure (grant no. PLG/2023/016115). T.V.T. gratefully acknowledges support from the NSF CAREER program (grant no. PHY-2045681). J.L.B. acknowledges support from the JILA Physics Frontier Center (PHY-2317149).
Author information
Authors and Affiliations
Contributions
Y.-X.L., L.Z., J.L., M.C.B. and K.-K.N. carried out the experimental work and data analysis. T.V.T. carried out the coupled-channel calculations. M.G., H.L. and M.T. performed the ab initio calculations of the Rb + KRb interactions. J.L.B. developed the statistical model of the KRb branching ratio. All authors contributed to the interpretation of the results and writing of the paper.
Corresponding author
Ethics declarations
Competing interests
The authors declare no competing interests.
Peer review
Peer review information
Nature Chemistry thanks the anonymous reviewers for their contribution to the peer review of this work.
Additional information
Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Extended data
Extended Data Fig. 1 Light shift and hyperfine structure observed in the R(0) transition.
(a) Pulsed 532 nm light induced light shift in the R(0) transition. The dark blue solid circles represent the R(0) transition with an overlapping 666 nm pulse and 532 nm pulse. The light blue open circles represent the R(0) transition without overlapping 666 nm and 532 nm pulses. The solid lines are fittings to Lorentzian lineshapes. The insets are the corresponding REMPI pulse timing diagrams. The data were collected using 5 averages. (b) Depletion spectroscopy of N = 0 KRb molecules from absorption imaging near R(0) transitions. The spectrum shows hyperfine structure of the N = 1 level in the electronically excited state. The data points represent the mean value, normalized to the maximum molecule number. All error bars in this figure represent the shot noise.
Extended Data Fig. 2 Rb atom number dependence of KRb ion counts.
KRb ion counts were measured with the 666 nm laser resonant with the Q(2) (circles), Q(1) (triangles) and R(0) (squares) transitions as a function of the initial \(| 2,2\rangle\) Rb atom number, which was controlled by varying the duration of the microwave ARP pulse. To account for imperfections in the dark mask that give rise to signal from \(| 1,1\rangle\) atoms in the reactant cloud, the same measurements were performed without a microwave ARP pulse to establish a background. The results with background subtraction are shown here. For each point, the X-axis values and error bars indicate the mean and standard deviation of relative atom number of the 5 measurements, while Y-axis values and error bars represent the mean of 5 measurements and shot noise. Solid lines are linear fits to the data.
Supplementary information
Supplementary Information (download PDF )
Supplementary Sections A–D and references.
Rights and permissions
Springer Nature or its licensor (e.g. a society or other partner) holds exclusive rights to this article under a publishing agreement with the author(s) or other rightsholder(s); author self-archiving of the accepted manuscript version of this article is solely governed by the terms of such publishing agreement and applicable law.
About this article
Cite this article
Liu, YX., Zhu, L., Luke, J. et al. Hyperfine-to-rotational energy transfer in ultracold atom–molecule collisions of Rb and KRb. Nat. Chem. 17, 688–694 (2025). https://doi.org/10.1038/s41557-025-01778-z
