Fig. 5: Single-crystalline structure of 2DPAV-DMP-TPB.

From: Towards single-crystalline two-dimensional poly(arylene vinylene) covalent organic frameworks

Fig. 5

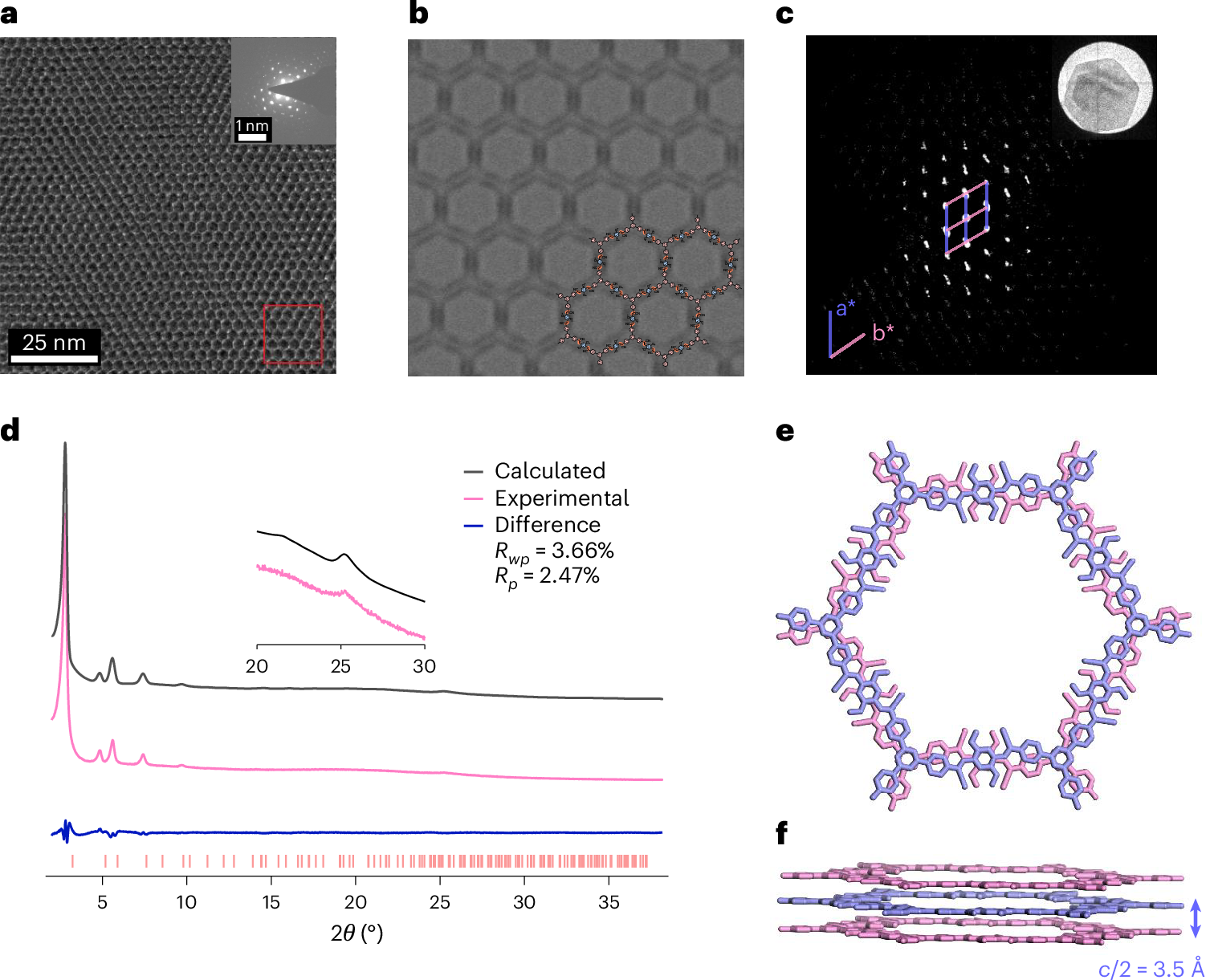

a, Cs-corrected HR-TEM image along with the SAED pattern. b, Simulated HR-TEM image of selected area in a (red box). c, cRED of a hexagonal 2D PAV crystal. Inset: the crystal on a Cu grid. d, Experimental PXRD pattern (pink), Rietveld-refined profile (black) and their difference plots (dark blue). e,f, Top (e) and side (f) views of the resolved AA-serrated stacking structure.
