Extended Data Fig. 8: Structural equation modeling of environmental effects on ocean NPP trends across different zones.

From: Contrasting biological production trends over land and ocean

Extended Data Fig. 8

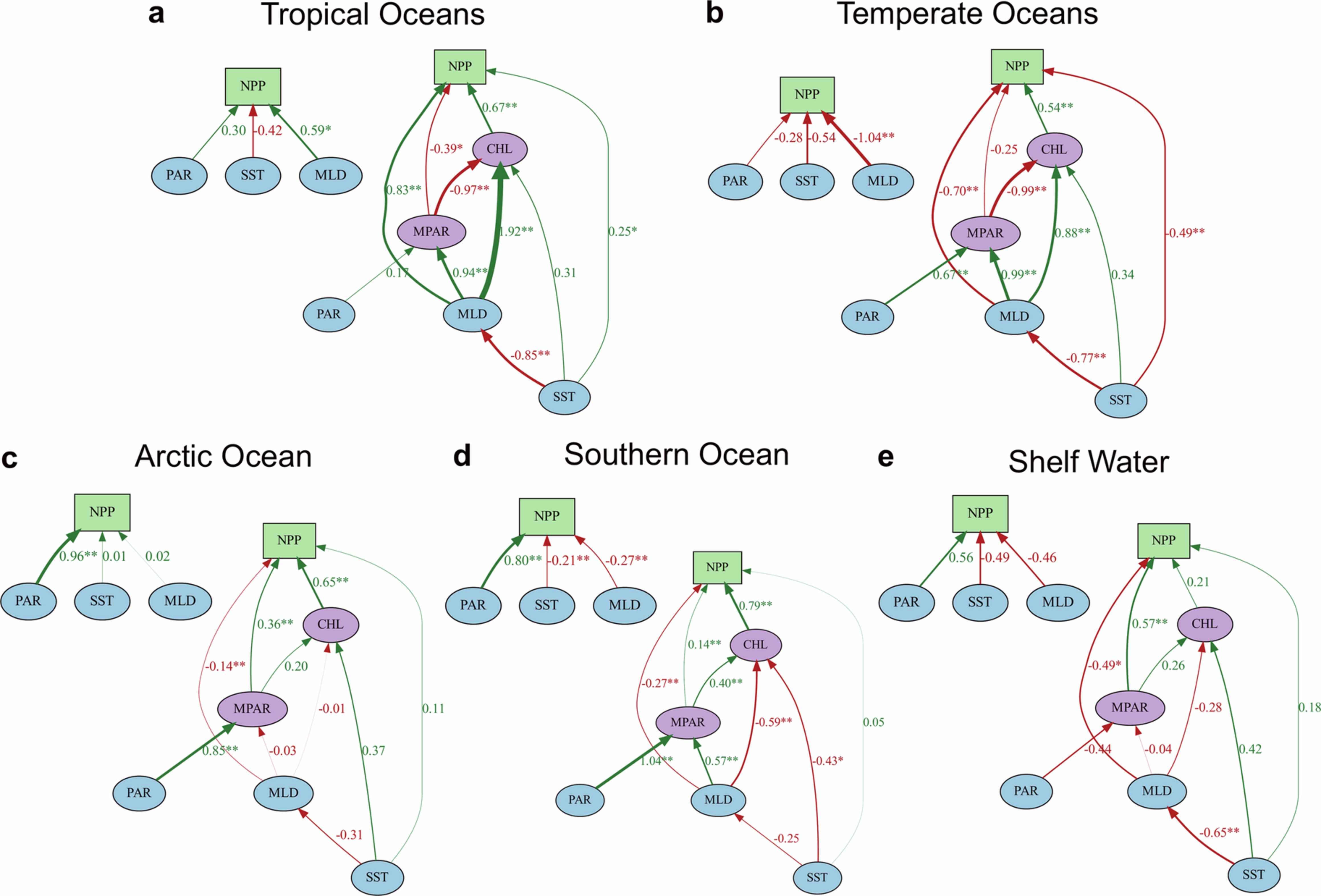

a-e: tropical oceans, temperate oceans, Arctic Ocean, Southern Ocean, and Shelf Water (shown in Extended Data Fig. 5). Environmental variables and path coefficient descriptions are consistent with those presented in Fig. 3h.
