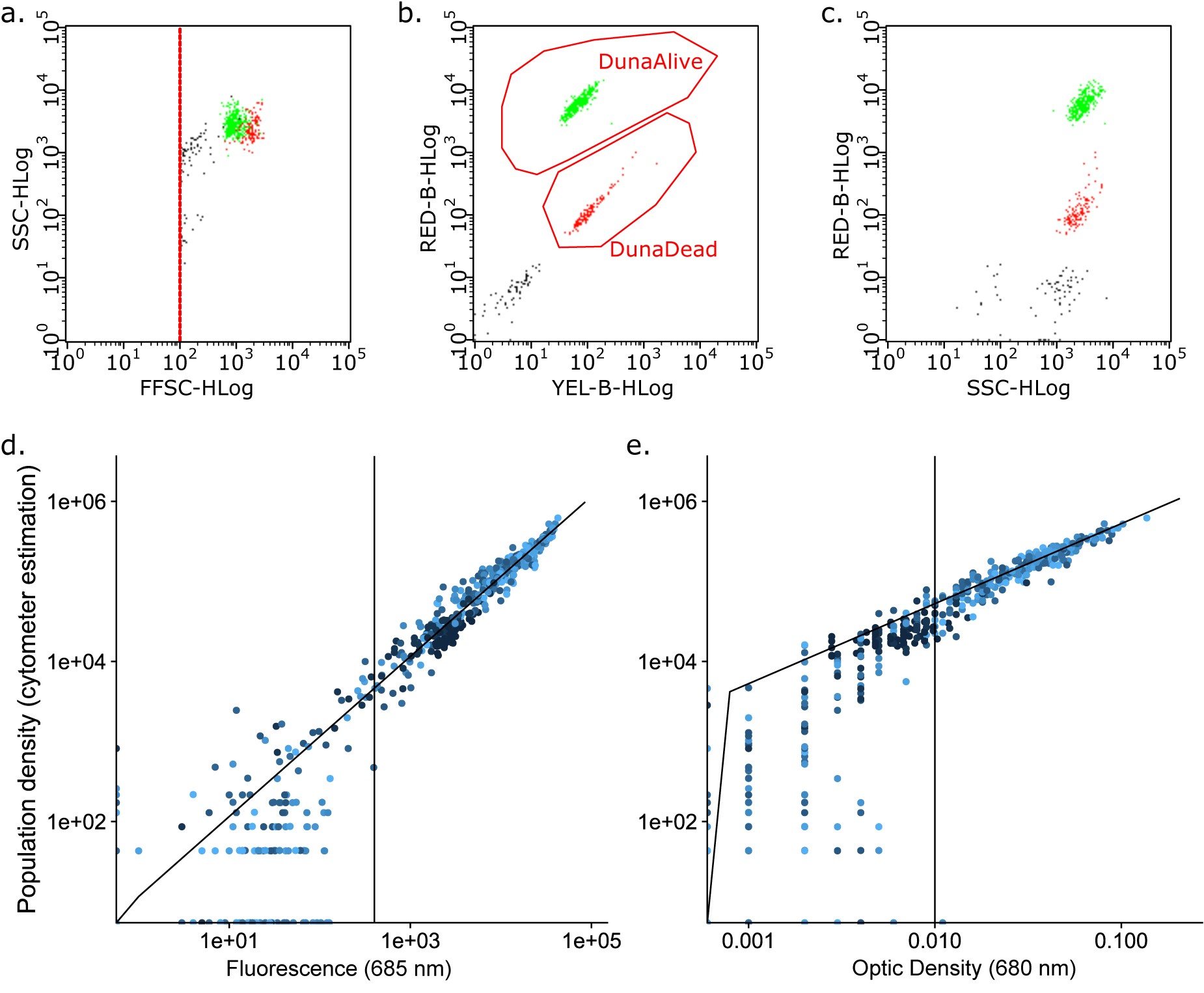

Extended Data Fig. 3: Raw measurements.
From: Phenotypic memory drives population growth and extinction risk in a noisy environment
a, b and c. Cytometer (Guava® EasyCyte) plots. Dunaliella shape and size do not allow distinction from debris but a gate can designed based on chlorophyll (red and yellow) autofluorescence. Dead cells were detectable after transfers from low to high salinity. They show an immediate decrease in red fluorescence, and are not taken into account when measuring population size. d and e. Regression between spectrometer measures (685nm fluorescence – 10722 points and 680nm optical density – 7332 points, see Supplementary Table 1 for details). Fluorescent values below 400 and optical density values below 0.01 (vertical lines) were discarded from the analysis and colours represent the day of each measure (from 0 (black) to 133 (light blue).
