Extended Data Fig. 10: Overview of untargeted proteomics experiment under UVA condition. | Nature Ecology & Evolution

Extended Data Fig. 10: Overview of untargeted proteomics experiment under UVA condition.

From: Seasonal variation in UVA light drives hormonal and behavioural changes in a marine annelid via a ciliary opsin

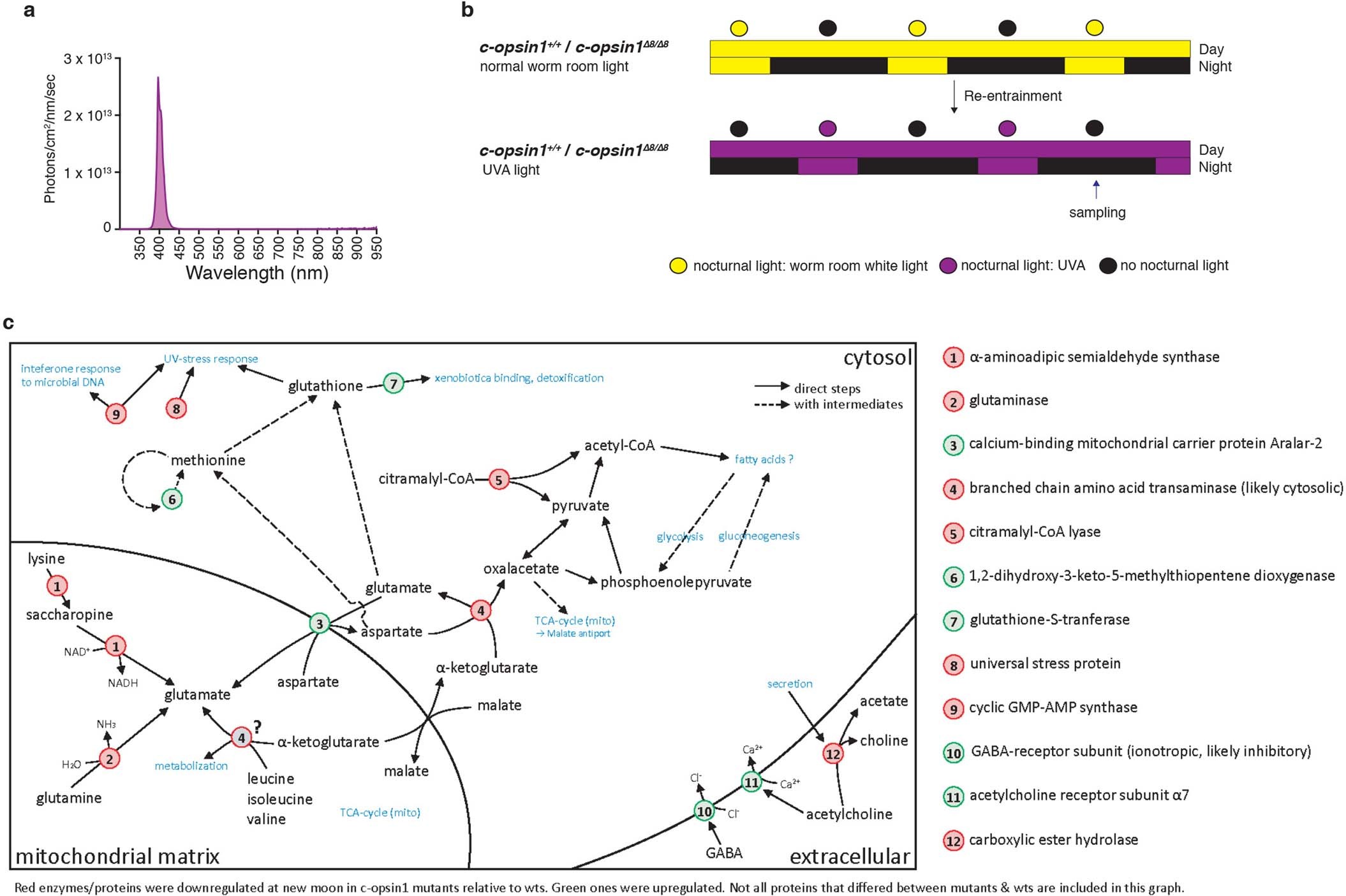

Extended Data Fig. 10

(a) UVA light used for untargeted proteomics experiment on c-opsin1+/+ and c-opsin1Δ8/Δ8 worms. (b) Sampling scheme. (c) Cellular and pathway model representing differentially regulated protein candidates. For primary data see: Supplementary Tables 13–15. N = 3BRs (20heads/BR), The significance was calculated by two-sided students t-test with adjusted p-value 0.05 (Permutation based FDR correction). Only proteins with least 2 peptides (at least one of it unique) were included in analyses.
