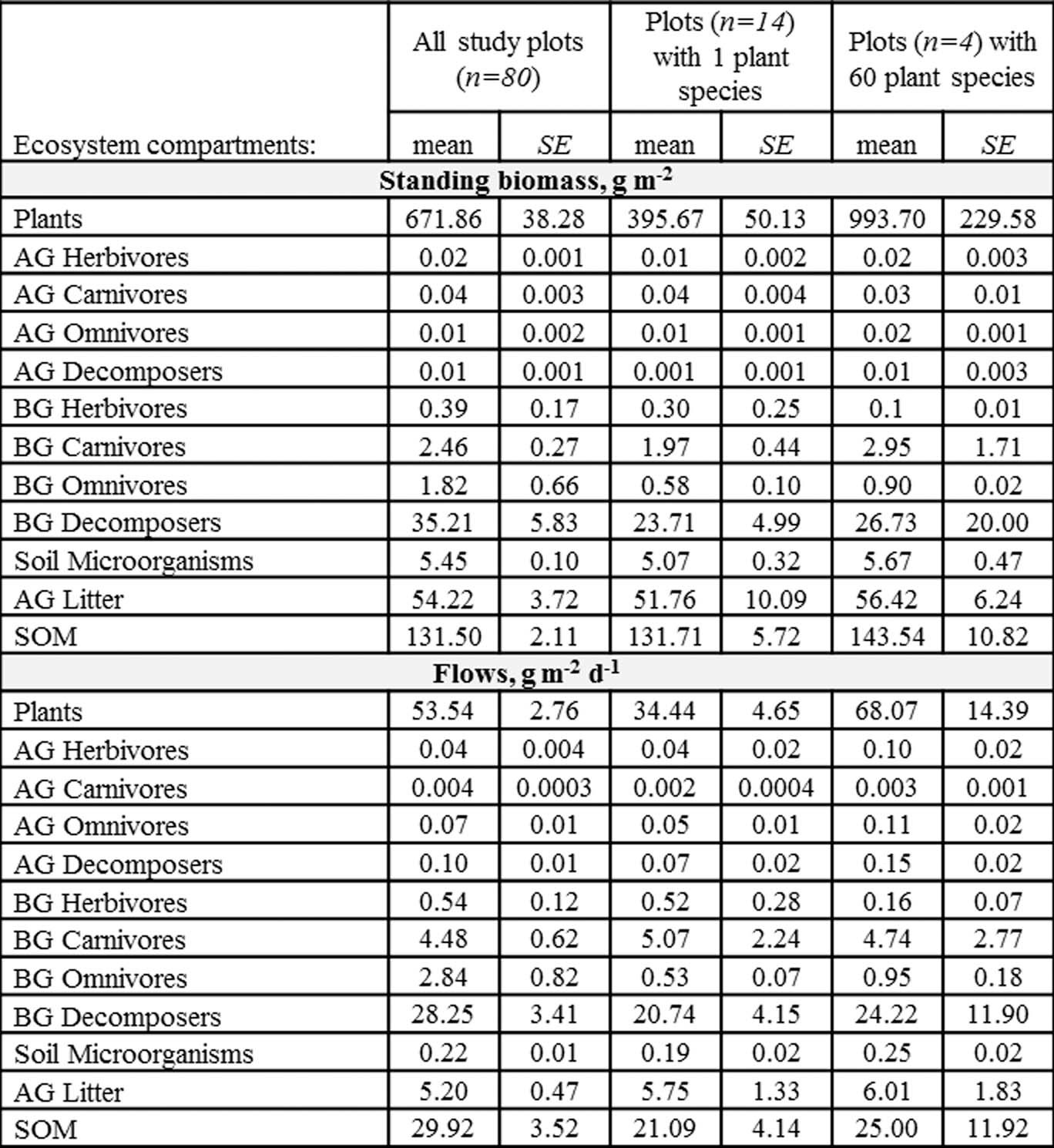

Extended Data Fig. 4
From: Biodiversity increases multitrophic energy use efficiency, flow and storage in grasslands
Standing biomass and energy flows (mean and standard error SE) for each compartment of the trophic networks within the 80 study plots with varying plant biodiversity. AG – aboveground; BG – belowground; SOM — soil organic matter.
