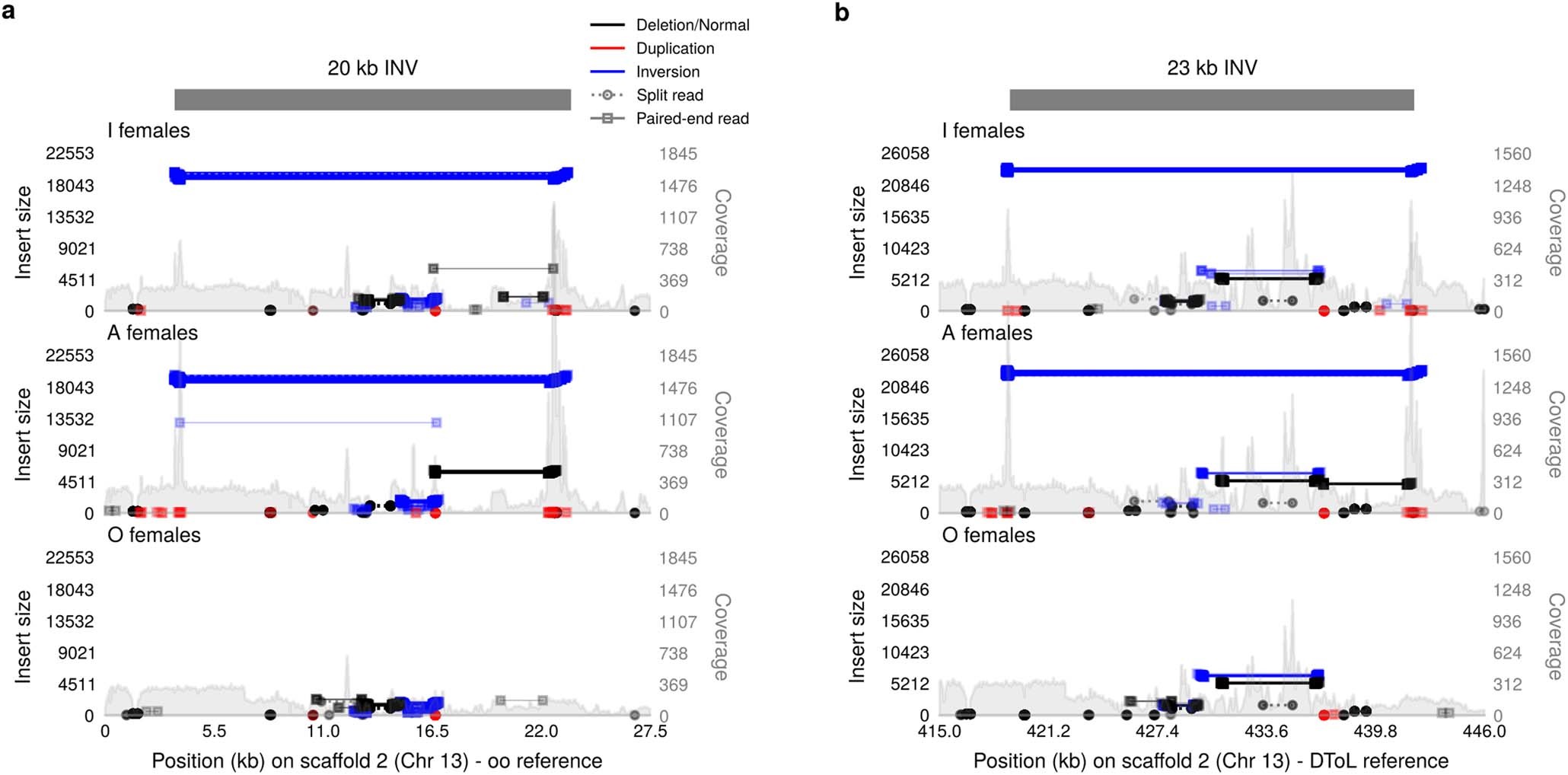

Extended Data Fig. 2: An inversion signature differentiates A and I individuals from the O morph.
From: The genomics and evolution of inter-sexual mimicry and female-limited polymorphisms in damselflies
Read mapping and sample coverage at the start of the scaffold 2 of chromosome 13 in a our O assembly and b the DToL reference assembly, showing a signature of a ~ 20 kb inversion in A and I samples. A single O sample also exhibited this signature but was excluded here for clarity (see Supporting Text 3). Note that the first 415 kb of the reference DToL assembly are absent in our scaffolded O assembly, and therefore the x-axis is shifted by 415 kb in b.
