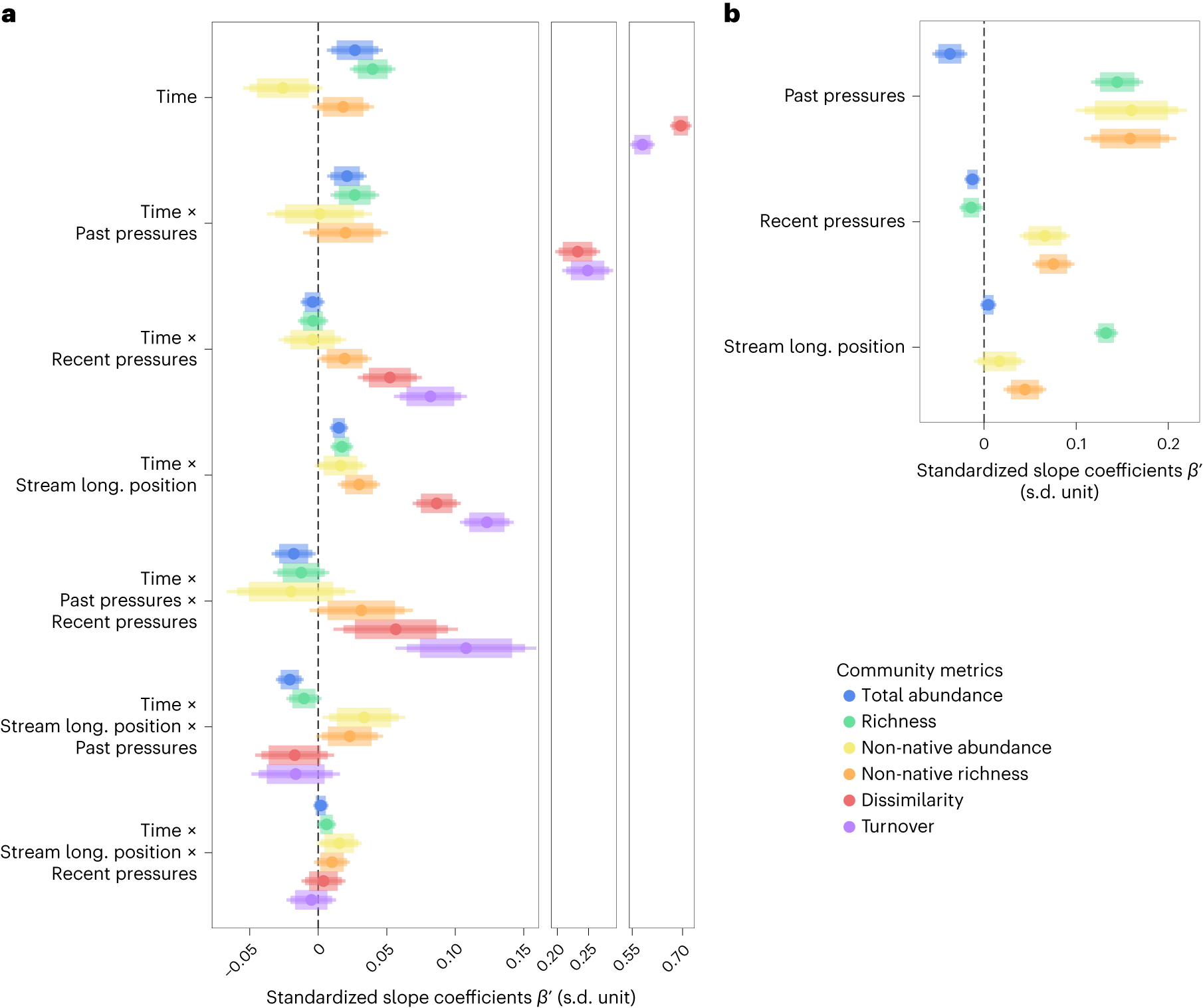

Fig. 3: Drivers of temporal change and spatial variation in fish community metrics.
From: Past and recent anthropogenic pressures drive rapid changes in riverine fish communities
a,b, Effects of anthropogenic pressures and longitudinal (long.) stream position on temporal changes (a) and spatial variation (b) in fish community metrics. Community metrics include total abundance, species richness, proportional abundance and richness of non-native species, Simpson temporal dissimilarity and Jaccard turnover. Points depict the average posterior distributions. Large, medium and thin bars depict the Bayesian CI at 80, 90 and 95%, respectively. Please note the broken abscissa scale in a. N = 46,932 sampling events across 4,476 sites.
