Extended Data Fig. 10: Antp P1 mutant heterozygotes do not exhibit significant changes in plasticity levels.

From: A novel Hox gene promoter fuels the evolution of adaptive phenotypic plasticity in wing eyespots of satyrid butterflies

Extended Data Fig. 10

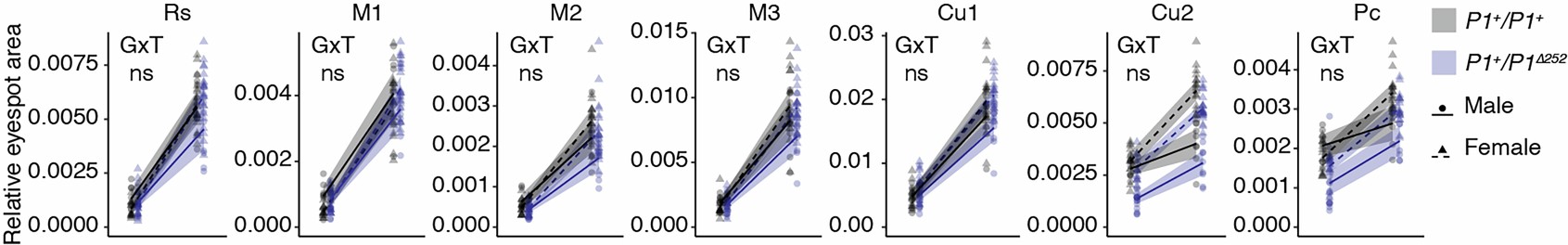

Changes in eyespot size plasticity levels were assessed (two-tailed) across sib-paired WT (P1+/P1+, n = 27 (WS) and 20 (DS) individuals) and mutant heterozygotes (P1+/P1Δ252, n = 30 (WS) and 33 (DS) individuals) in a two-way ANCOVA, indicated by a significant (padj<0.05) genotype (G) x temperature (T) interaction (padj: 0.72 (Rs), 0.78 (M1), 0.80 (M2), 0.88 (M3), 1.0 (Cu1), 0.90 (Cu2), 0.82 (Pc)). Lines with error bands represent mean values ± 95CI. Detailed sample sizes are summarized in Supplementary Table 10. Full statistical results are summarized in Supplementary Table 11. P values were adjusted for multiple comparisons using the Benjamini-Hochberg procedure. ns, not significant; *padj<0.05; **padj<0.01; ***padj<0.001.
