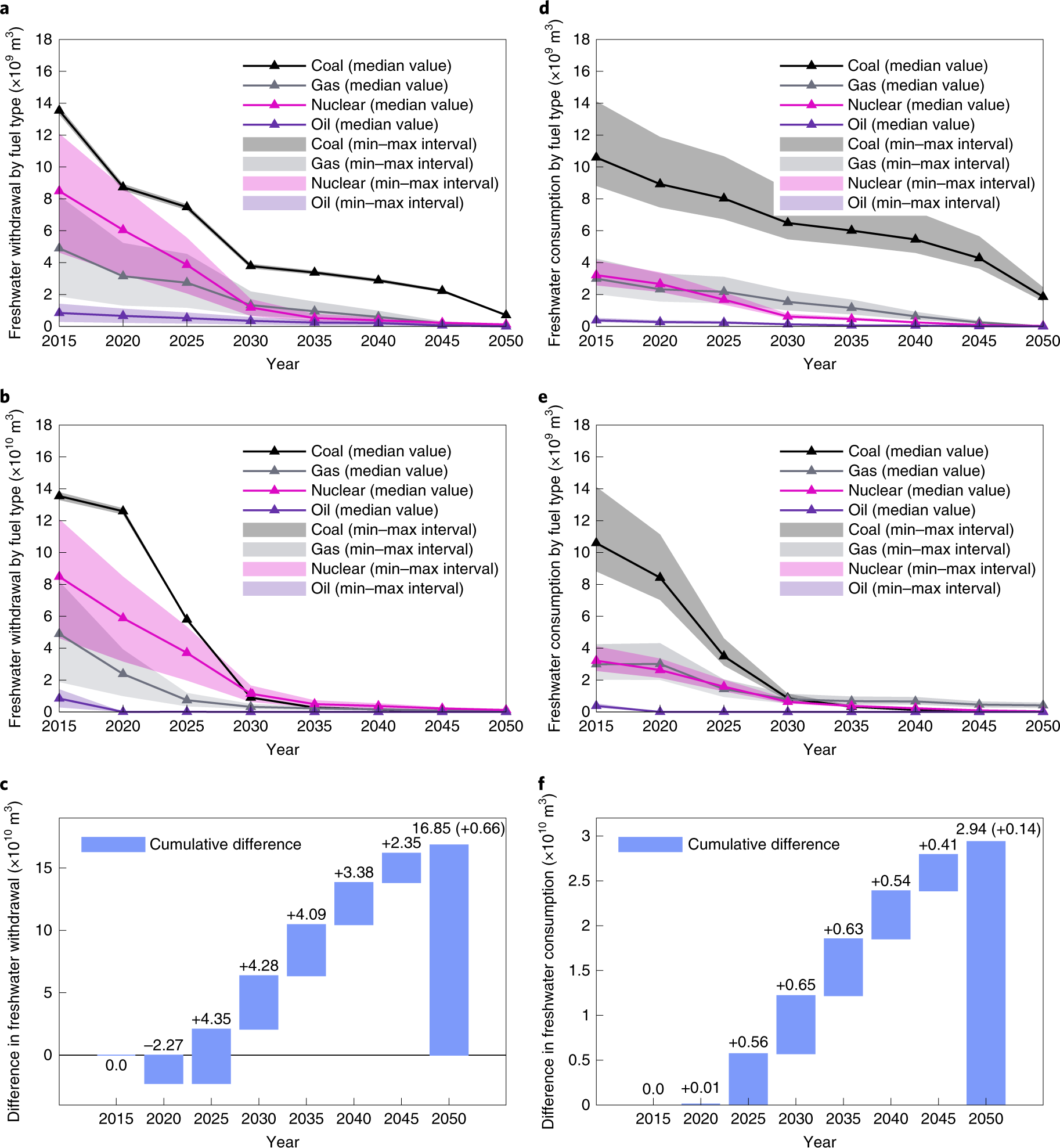

Fig. 3: Analytical comparison between LTS and BPS.

From: Global scenarios for significant water use reduction in thermal power plants based on cooling water demand estimation using satellite imagery

Fig. 3

a,d, Development of global freshwater withdrawal and consumption in 2015–2050 by fuel type in the LTS. b,e, Development of global freshwater withdrawal and consumption in 2015–2050 by fuel type in the BPS. c,f, Cumulative difference in freshwater withdrawal (c) and cumulative difference in freshwater consumption (f). The numbers in c and f show the difference in water demand savings of the given time compared to those of the previous time interval.
