The growing electric vehicle market and the expanding electrochemical energy storage industry are in pursuit of advanced battery technologies with high-energy, high-safety and non-scarcity properties1,2,3. Among the next-generation post-lithium-ion battery chemistries, rechargeable divalent metal batteries with low-reduction-potential anodes, such as magnesium and calcium metal, have received widespread attention4,5,6,7,8. The considerable redox potential (−2.38 V versus standard hydrogen electrode for Mg and −2.76 V for Ca) offers enough voltage headroom to match high-voltage cathodes to fabricate a high-energy-density cell. The two-electron-transfer chemistry provides a higher volumetric energy density (3,832 mA h cm−3 for Mg and 2,052.6 mA h cm−3 for Ca) and high element abundance makes the raw materials low cost and available9,10.

Contrary to the use of cost-efficient anode materials, the development of a high-performance Mg/Ca single salt with high purity and scalable properties has gradually become the Achilles’ heel for rechargeable Mg/Ca batteries11,12. In the first-generation Mg electrolyte, chloride and borohydride were proven to be good auxiliary anions to suppress the decomposition of the salt/solvent so that 99% reversible Mg electrodeposition could be achieved13,14,15,16,17,18,19. However, the low anodic stability and corrosive property exclude Cl−/BH4−-containing electrolytes from industrial applications20,21. Therefore, non-corrosive chloride-free single-salt electrolyte systems are attracting intensive research, including fluoroalkoxy borates/aluminates (Mg(CB11H12)2, Mg(B(hfip)4)2, LiB(hfip)4and so on) and their derivative Ca(B(hfip)4)2 (refs.22,23,24,25,26,27,28). Although satisfactory reversibility (>95% for Mg and ~80% for Ca) can be obtained, these weakly coordinating electrolyte systems with electron-delocalizing anions usually involve rare raw materials and complex synthesis steps29. For example, Mg(BH4)2/Ca(BH4)2, the precursor of magnesium/calcium organoborates, shows an ultrahigh price and a low purity (95%) due to its harsh synthetic environment, which will probably passivate the Mg/Ca surface and hinder further large-scale commercialization8,22,24. Methoxyethyl-amine chelants can improve the reversibility of magnesium and calcium, but the impact of -NH2 on the cycling performance needs to be investigated7. To date, developing a cost-effective synthetic route for impurity-free Mg/Ca salts is still a problem that has plagued the development of Mg/Ca-based batteries.

In this paper, we proposed a universal cation replacement method to prepare low-cost, high-performance magnesium and calcium electrolytes. First, the cost-effective and readily available Zn(BH4)2 precursor was reacted with different fluoroalcohols to generate the target anions with varied branched chains. Then the Zn2+-anion solvates were reacted with cheap metal foils with higher metal activity (for example, Ca, Mg) in ether conditions, resulting in the desired solvation structure (Fig. 1a). Specifically, the as-obtained anions with high F substitution and steric hindrance leaned towards a highly dissociative solvation shell, which was beneficial for improvements in ionic conductivity and high current endurance magnesium metal cells (25 mA cm−2). Meanwhile, two types of Ca solvate, one with strong cation‒anion coordination and the other B–H containing organoborate, offered CaO/CaHx-based passivation layer with high Ca reversibility, suppressing continuous solvent decomposition and maintaining stable cycling. With these efforts, a high-loading Mg/S battery prototype with 53.4 Wh kg−1 was achieved by using a thin Mg anode, a lean Mg organoborate electrolyte, a thin poly(vinyl alcohol) (PVA) separator and a graphene oxide (GO)/Cu interlayer at 60 °C.

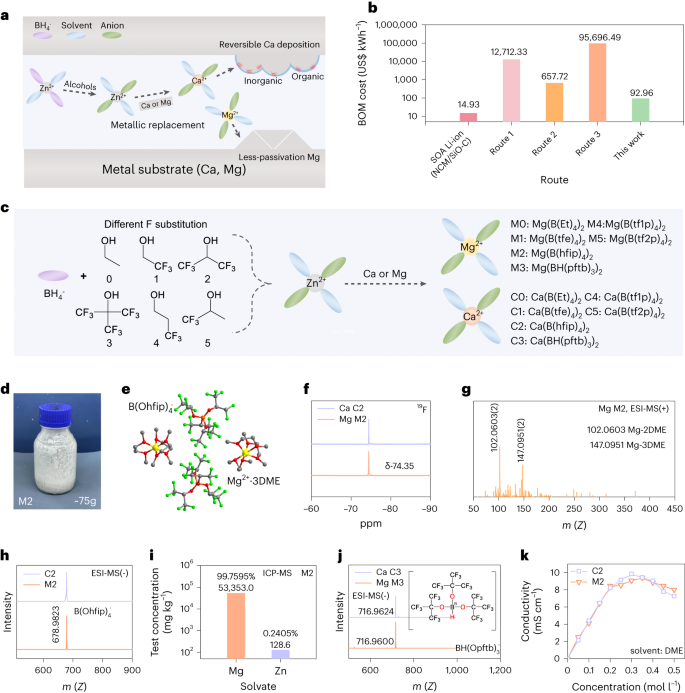

Fig. 1: Synthesis route and characterization of different Ca/Mg solvates.
figure 1

a, Schematic of the cation replacement method using a zinc organoborate solvation precursor: the Zn organoborate is first synthesized by reaction between Zn(BH4)2 and alcohols, after which the Zn2+ is replaced by higher active Ca or Mg metal to obtain Ca/Mg solvates. Colour scheme of electrolyte components: BH4−, purple oval; solvent, blue oval; target anion, green oval. b, BOM costs of different routes for calcium and magnesium solvates and a commercial lithium-ion battery electrolyte (based on the price of 2023/03). c, Synthesis of corresponding magnesium/calcium solvates using various precursors. d, Large-scale preparation of the M2 solvate in a 250 ml bottle. e, DME-solvated M2 solvate obtained from X-ray single-crystal structure. Colour scheme of molecules: Mg, yellow; F, green; O, red; C, grey; B, orange. f, 19F-NMR spectra of C2/M2 in DMSO-d6. g, ESI-MS spectra of the M2 electrolyte (positive mode). h, ESI-MS spectra of the C2/M2 electrolytes (negative mode). i, ICP-MS results of the synthesized M2 solvate. j, ESI-MS spectra of the C3/M3 electrolytes (negative mode). k, Ionic conductivity dependence on the concentration of M2/C2 electrolytes at 30 °C.

Full size image

Synthesis and characterization of Ca and Mg solvates

The precursors used in currently available synthetic routes always have low purity and high prices (Supplementary Fig. 1), which leads to low metal reversibility and poor practicality. Meanwhile, several of these precursors have been hard to obtain from manufacturers since 2021 in Asia (for example, Mg(BH4)2). The synthesis of borohydride usually starts from sodium borohydride and the corresponding chloride. Magnesium chloride/calcium chloride has difficulty dissolving in ether to form a complex30. Therefore, it is often prepared by solid-phase reaction (ball milling), resulting in low-purity borohydride, whereas zinc chloride can form a complex with ether/amine to obtain high-purity zinc borohydride through liquid-phase reaction29,31,32,33. Until now, the bill of materials (BOM) cost for mainstream high-performance weakly coordinating Mg electrolytes has been extremely high for Mg(BH4)2-derived (route 1), di-n-butylmagnesium-derived (route 2) Mg(B(hfip)4)2 and (HNEt3)CB11H12-derived Mg(CB11H12)2 (route 3) (Fig. 1b and Supplementary Fig. 2). Here we start from structurally similar and inexpensive Zn(BH4)2/tetrahydrofuran (THF) precursors and alcohols containing different fluorine contents to synthesize a series of Mg/Ca organoborates, which can reduce the BOM to the same order of magnitude as that for the state-of-the-art lithium-ion batteries currently available (92.96 vs US$14.93 kWh−1). The proposed electrolytes are denoted Mx/Cx (x = 0, 1, 2, 3, 4, 5) in 1,2-dimethoxyethane (DME) in which the anions of the 0 to 5 solvates have different -CF3 substitutions (Fig. 1c).

The detailed synthesis procedure and potential industrial amplification process are shown in Supplementary Figs. 3 and 4. Taking M2/C2 as examples, Zn(BH4)2 first reacted with equal stoichiometric alcohol in a THF/DME solution to form the Zn2+ solvation sheath with the target anion (Supplementary Fig. 5) after which metallic Ca/Mg foils were placed in solution to form the target cation solvation sheath until a surface without any black Zn appeared. After purification and crystallization to remove BH4−, a 75 g M2 solvate was obtained with a high yield of 92% (Fig. 1d). The obtained single crystal reveals that the target anion B(hfip)4− is successfully prepared, in which Mg2+ chelates with three DME molecules and Ca2+ chelates with four DME molecules (Fig. 1e and Supplementary Fig. 6). Nuclear magnetic resonance (NMR) spectroscopy and electrospray ionization-mass spectrometry (ESI-MS) were carried out to examine the final solvation structure. 19F and 11B show only a single strong peak at −74.35 ppm and 1.56 ppm, which proves that there is almost no impurity in the final target anion (Fig. 1f and Supplementary Fig. 7). The ESI-MS positive mode result shows a series of peaks with an m/z ratio at 102 and 147, corresponding to the (Mg(DME)2)2+ and (Mg(DME)3)2+ molecules, indicating that the anion does not participate in the cation solvation structure (Fig. 1g). The negative mode results only show a strong peak at 678.9823, indicating that solvated cation replacement does not destroy the anion (Fig. 1h). Inductively coupled plasma-mass spectrometry (ICP-MS) results show that the cations in the salt are the desired Mg (99.76%) and Ca (99.25%) cations (Fig. 1i).

Through this feasible cation replacement method, we further synthesized another five Ca/Mg anions to explore the effect of different branched chains on the metal deposition behaviour, including B(Et)4−, B(tfe)4−, B(tf1p)4−, B(tf2p)4− and BH(pftb)3−. The corresponding 19F, 11B and 1H spectra also prove that these anions are successfully prepared (Supplementary Figs. 8–12). Among them, the M3/C3 anions are very different from the other tetrasubstituted organoborates (Fig. 1j). Due to the steric hindrance effect, the last branched hydrogen atom in the borohydride seems to be unable to react with perfluoro-tert-butanol, showing a triple-substitution characterization in ESI-MS, which is different from the previous report26. The ICP-MS tests also demonstrate satisfactory replacement of Zn2+ with Mg2+ or Ca2+ (Supplementary Fig. 13). The ionic conductivity of the various electrolytes under different concentrations is shown in Fig. 1k and Supplementary Fig. 14. Considering the maximum conductivity and solubility of various electrolytes, we chose 0.5 M for further electrochemical property tests.

Solvation shell analysis

Theoretical simulation of six different anions was performed to detect the impact of the branched chain on the solvation shell (Fig. 2a). Density functional theory (DFT)-calculated electrostatic potential (ESP) maps of various anions show that the negative charge is mainly localized at the oxygen and boron atoms. With an increase in the fluorine substitution on the branched chain, the negative charge at the O atom is effectively dispersed (Fig. 2b), implying a reduced potential to coordinate with cations and a low possibility of participating in the solvation structure. The optimized binding configurations also give intuitive interactions of one cation with different anions (Supplementary Figs. 15 and 16) in which anions 0 and 1 offer the shortest cation–O distance (0 < 1 < 4 < 5 < 2 < 3). As a result, the binding energies between one Mg2+/Ca2+ ion and one anion (0 to 5) follow the same trend (Supplementary Fig. 17).

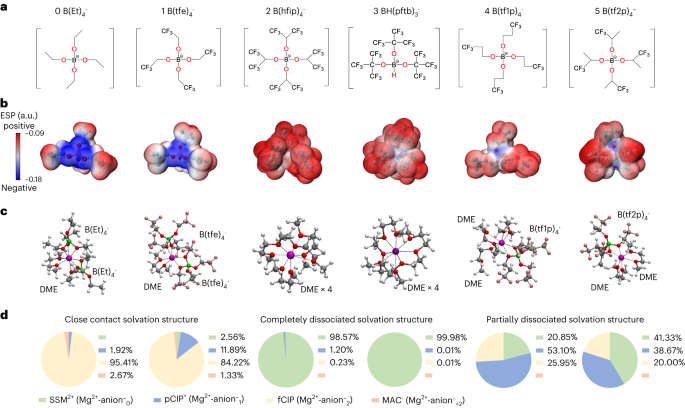

Fig. 2: Simulation of the solvation shell.
figure 2

a, Molecular structure of six anions. b, Calculated ESP maps of anions under DME conditions. c, Typical solvation structure for the primary Mg2+ solvation shell obtained from MD simulations. Colour scheme of molecules: Mg, purple; F, pink; O, red; C, grey; B, green; and H, white. d, Distribution of the Mg2+ solvates for the six electrolytes.

Full size image

Molecular dynamics (MD) simulations were further performed to identify the solvation shell in different electrolytes under 0.5 M conditions (Fig. 2c). For anions 0 and 1, weak Mg–O (DME) and strong Mg–O (anion, 2.18 Å) and Mg–B (2.96 Å) radial distribution functions can be observed (Supplementary Figs. 18 and 19), indicating the existence of close-contact ion pairs rather than cation-solvent (DME) interactions in the primary solvation shell. For anions 2 and 3, where the Mg–O (anion) and Mg–B peaks almost disappear and are replaced by an intense Mg–O (DME, 2.26 Å) peak. This result proves that the solvates are completely dissociated by the solvent without close-contact ion pairs. For anions 4 and 5 with moderate F substitution, both anions and DME participate in the solvation structure. Therefore, we can divide the solvation structure into three categories: close-contact solvation structure (anions 0 and 1), completely dissociated solvation structure (anions 2 and 3) and partially dissociated solvation structure (anions 4 and 5). Raman spectra obtained from Ca electrolytes prove the strong coordination between cations (C2 and C3) and DME at ~870 cm−1, which is in accordance with the completely dissociated property (Supplementary Fig. 20).

Detailed information on the three solvation structures is described based on the distribution of Mg2+ solvates, which includes four types (Fig. 2d and Supplementary Fig. 21): solvent-surrounded metal ion2+ (SSM2+, Mg2+-anion−0), partial contact ion pair (pCIP+, Mg2+-anion−1), full contact ion pair (fCIP, Mg2+-anion−2) and metal ion2+-anion cluster (MAC−, Mg2+-anion−>2). The close-contact solvation structure possesses many anions combined with cations (MAC−, fCIP), indicating a lower dissociation degree and an anion-derived passivation layer. In contrast, the completely dissociated solvation structure shows a high dissociation degree with more mobile Mg2+/Ca2+ charge carriers (SSM2+ and pCIP+) that are responsible for a high ionic conductivity, which is also conducive to a low overpotential in symmetric cells. This trend agrees well with the ionic conductivity of the six electrolytes with minor deviations. This calculation conclusion also applies to the calcium homologues and obtains the same trend as the Mg solvation shell (Supplementary Fig. 22).

Ca and Mg reversibility and passivation analysis

As shown in Fig. 3a, the Ca coulombic efficiency (CE) was evaluated using the Ca/Cu half cell under 2 mA cm−2, 0.1 mA h cm−2. Among them, the cells using the trisubstituted C3 and tetrasubstituted C1 electrolytes show highest CEs whereas the commonly used C2 shows the lowest CE and increasing voltage hysteresis during cycling (Supplementary Fig. 23). The Mg/Cu cells using different Mg single salts exhibit disparate performances. Under the conditions of 0.67 mA cm−2 and 0.11 mA h cm−2, the cells using the M2 and M3 electrolytes show the highest CE (close to 100%) and the longest cycle life (8,400 and 2,960 cycles), whereas the cells using M4/M5/M1 have medium reversibility values of 95.61%, 93.71% and 92.68% within 600 cycles (Fig. 3b and Supplementary Fig. 24). The cycling performance and voltage hysteresis of different electrolytes are shown in Supplementary Fig. 25. C3 and M2 are chosen for deeper investigation due to their satisfactory performance. As shown in Fig. 3c, the half cell exhibits a stable average CE of 99.04% during 1,037 cycles with a cumulative capacity of 1,037 mA h cm−2 under a high current density of 5 mA cm−2. The corresponding voltage profiles display a steady ~400 mV overpotential during cycling (Fig. 3d). Cyclic voltammetry of M2 reveals a high plating/stripping current density of 25 mA cm−2 with a low overpotential (<350 mV) at a scan rate of 35 mV s−1 (Fig. 3e). Linear sweep voltammetry results indicate that M2 has a high anodic stability of 4.0 V (vs Mg/Mg2+) towards common stainless steel counter electrodes. Meanwhile, C3 also shows a good anodic stability higher than 4.4 V (vs Ca/Ca2+) (Supplementary Fig. 26). The Mg/Mg symmetric cell using the M2 electrolyte was tested under harsh conditions (25 mA cm−2) after activation cycles. The cell exhibits a moderate overpotential (850 mV) and a long lifetime of more than 860 cycles with a cumulative capacity of 480 mA h cm−2 (Fig. 3f). The high areal capacity test also proves the compatibility of M2 with the Mg metal anode under 6 mA h cm−2 conditions (Supplementary Fig. 27). In addition, the Ca/Ca symmetric cell using the C3 electrolyte shows a 270 cycles lifetime (67.5 m Ah cm−2 cumulative capacity) with a low overpotential of ~300 mV during cycling, which is much better than other Ca electrolytes and the results reported in other studies (Fig. 3g, Supplementary Fig. 28 and Supplementary Table 1).

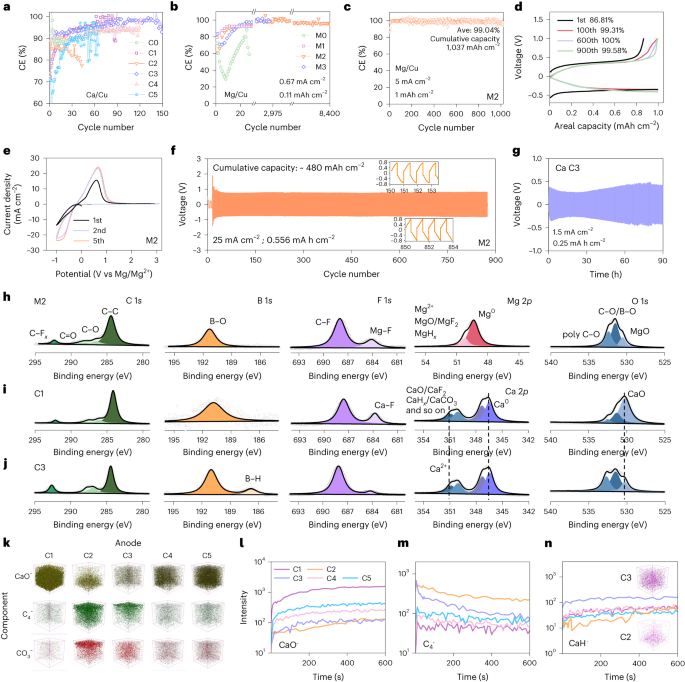

Fig. 3: Electrochemical performance of Ca/Mg solvates and passivation layer analysis.
figure 3

a, Cycling performance of Ca/Cu cells using different Ca electrolytes under the conditions of 2 mA cm−2 and 0.1 mA h cm−2. b, Cycling performance of Mg/Cu cells using different Mg electrolytes under the conditions of 0.67 mA cm−2 and 0.11 mA h cm−2. (Broken linear time axes are used to present the final lifetime of different Mg electrolytes. Full data can be found in Supplementary Fig. 24). c,d, CE (c) and corresponding voltage profiles (d) of the cell using the M2 electrolyte under harsh conditions of 5 mA cm−2 and 1 mA h cm−2. e, Cyclic voltammogram of the Mg/Cu cell using M2 at a scanning rate of 35.0 mV s−1. f, Mg/Mg symmetric cell using the M2 electrolyte cycled under a high current density of 25 mA cm−2. (Inset graphs represent the enlarged voltage curves during cycling). g, Performance of the Ca/Ca symmetric cell using the C3 electrolyte. h–j, XPS spectra of the cycled Mg/Ca anode in the M2/C1/C3 electrolyte after 30 cycles. k–n, TOF-SIMS spectra (k) and element intensity evolution of the cycled C1–C5 anode (l–n).

Full size image

The surfaces of cycled Mg and Ca (anion 1 to 5) were characterized by X-ray photoelectron spectroscopy (XPS) to determine the decomposition behaviour of different electrolytes (Fig. 3h–j). Anions 1 to 5 are selected for deeper investigation due to their satisfied cycling lifespan. Mg solvates, in particular solvates 1, 2, 4 and 5, possess almost the same decomposition products after 20 cycles in symmetric cells. Both organic (C–O, B–O, C–F) and inorganic (Mg–F/Mg–O) components from the decomposition of Mg solvates and the DME solvent can be detected (Supplementary Fig. 29). The condition becomes different for Ca metal in which the close-contact and partially dissociated Ca solvates (C1/C4/C5) possess higher Ca–O inorganic component whereas completely dissociated Ca solvates (C2/C3) show higher organic byproduct (C–O, poly C–O in C 1s and O 1s) in passivation layer (Supplementary Fig. 30). Moreover, for the trisubstituted M3/C3 solvates, the retained B–H structure further promotes the generation of organic B–H and inorganic metal hydrides (revealed by time-of-flight secondary ion mass spectrometry later) in the passivation layer, which are regarded as the low-migration-barriers passivation component to protect the metal anode. The decomposition species, including C–O, B–O, Mg2+ and Ca2+ components, were normalized by Mg0 and Ca0 peaks to obtain the total relative concentrations (Supplementary Table 2) in which the concentration of Ca byproducts show inverse correlation with Ca CEs (Supplementary Fig. 31). However, no similar trend is observed in the Mg metal anode, indicating that the reversibility of Ca metal is more sensitive to passivation.

TOF-SIMS gives a more intuitive element distribution in depth. For Mg solvates (Supplementary Fig. 32), the organic components (C2H3O2−) and inorganic components (MgBF2O2−, MgH−, MgO−) are sparsely distributed on each Mg surface. The intensities of the passivation produced by the five electrolytes are almost on the same order of magnitude (Supplementary Fig. 33), indicating the similar decomposition degree regardless of different solvation structures. Due to the higher reducibility of calcium metals, the passivation of calcium is more complex than that of magnesium (Fig. 3k–n and Supplementary Figs. 34 and 35). A large amount of CaO was observed throughout the entire cube (C1/C4/C5), indicating that the strong anion coordinating promoted the Ca2+–O interaction and facilitate the formation of CaO, which is consistent with the results observed by XPS. As a comparison, organic components (C4−, C2HO−) and inorganic CaCO3/CaF2 are easily observed in completely dissociated C2 in which the formation of CaCO3 and CaF2 can be attribute to the continuous decomposition of DME and solvate. Interestingly, although the passivation layer of C3 is mainly composed of organic components, a higher intensity of CaHx rather than CaCO3 is observed when compared with other Ca electrolyte and unrecycled Ca anode, indicating that high concentration of CaHx and B–H species will effectively suppress the subsequent electrolyte reduction. Considering that the migration energy barriers of CaO (997 meV) and CaH2 (541 meV) are much lower than those of CaCO3 (1,436 meV) and CaF2 (2,046 meV) (ref. 34), we believe that the passivation layer of C1, C3, C4 and C5 will be more conducive to the transport of calcium ions, thereby preventing the continuous increase of overpotential and calcium deactivation.

Microstructure of the passivation layer

In contrast to alkali metals (Li, Na) with solid–electrolyte interphase (SEI) structures, the surface microstructure of multivalent metals remains a mystery, and until now, determining the SEI structure in different electrolyte systems has been difficult35,36,37,38,39,40. Here we systematically characterized the Mg and Ca interfaces in various electrolyte systems through cryo-electron microscopy (cryo-EM) and identified the components in the passivation layer. As shown in Fig. 4a, Mg deposited (0.5 mA h cm−2) in the M2 electrolyte shows a polygonal structure with a diameter larger than 8 μm. As the magnification is increased, the lattice fringe of 0.245 nm is identified by the fast Fourier transform (FFT) pattern, corresponding to the (101) plane of metallic Mg. Interestingly, small amorphous byproducts are sparsely distributed outside the lattice fringes of bulk metallic magnesium, which proves that magnesium metal does not produce a conformal SEI structure in the highly stable organoborate/ether system, which is different from Li/Ca analogues. This random distribution structure also implies that the ion transport properties rather than passivation have large impact on Mg reversibility. The less passivation property is also detected in the enlarged images of M1/M3/M4/M5 systems. The Mg (101) plane clearly extend to the surface of the deposits in M1 and thin amorphous byproducts (<2.5 nm) are found in M3–M5 (Fig. 4c,d). In contrast, the Mg cycled in the Mg(TFSI)2/DME electrolyte exhibits a messy and irregular surface with an impurity layer (MgF2/MgO) of 100 nm (Supplementary Fig. 36), which blocks ion transport and results in large overpotentials and low magnesium utilization. The passivation layer becomes thinner in the Cl−-containing electrolyte with few MgF2 nanocrystals, indicating that Cl− can suppress the decomposition of the TFSI− anion to some extent (Supplementary Fig. 37).

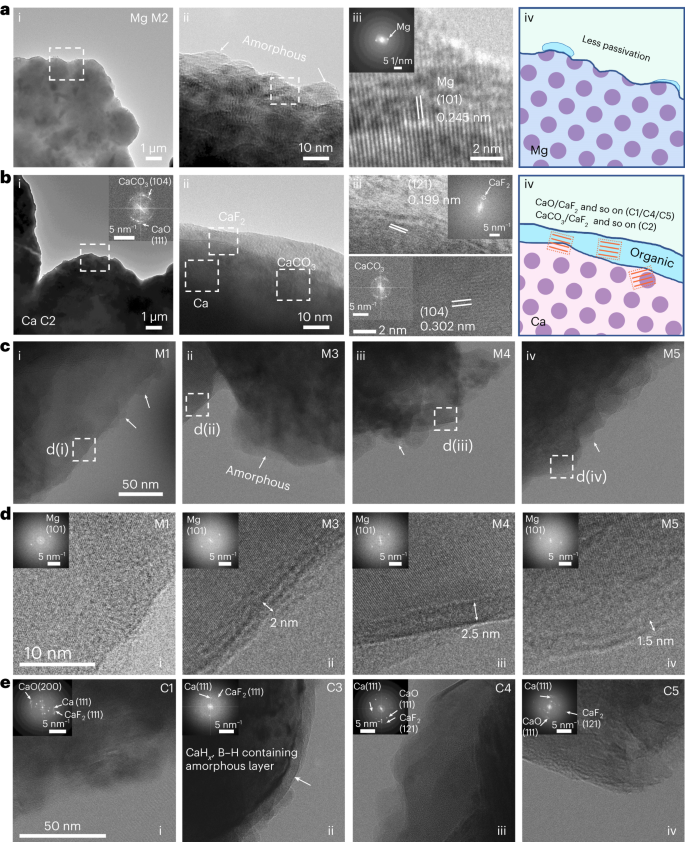

Fig. 4: Characterizations of the passivation layer on the Mg/Ca anode.
figure 4

a, Nanostructure of Mg deposited in the M2 electrolyte imaged by cryo-EM. b, Nanostructure of deposited Ca and the passivation layer in the C2 electrolyte. c, Structure of deposited Mg in the M1/M3/M4/M5 electrolytes (arrows refer to amorphous passivation layers). d, Lattice fringes and FFT diffraction of deposited Mg. e, Nanostructure of deposited Ca and FFT diffraction of passivation components in the C1/C3/C4/C5 electrolytes.

Full size image

The surface of the deposited Ca metal exhibits different nanoscopic structures under the different solvation structures (Fig. 4b,e). In the completely dissociated C2 electrolyte, the calcium metal deposition mainly grows in a spherical shape with an amorphous passivation layer. The (111) Ca plane can be clearly observed (Supplementary Fig. 38), whereas many CaCO3, CaF2 nanocrystals are embedded inside the amorphous layer (Supplementary Fig. 39). The passivation on C3 electrolyte also shows amorphous property with little inorganic CaF2 inside, which means B–H species and CaHx exist in an amorphous form. In the close-contact C1 and partially dissociated C4 and C5, a polycrystalline nature of inorganic nanoparticles (CaO/CaF2) with fewer amorphous components can be seen (Supplementary Fig. 40), indicating an anion-derived film-formation behaviour. The different passivation species on the Ca anode are consistent with previous XPS and TOF-SIMS results.

To summarize, although some decomposition products of magnesium electrolyte are observed in XPS and TOF-SIMS, they are mainly randomly distributed rather than a conformal SEI on Mg surface, providing limited protection for the Mg plating/stripping. Moreover, a large amount of inorganic/organic decomposition products have been observed on the surface of calcium metal, and their relative content is mainly related to the solvation structure and anion structure, which will affect subsequent electrochemical performance.

Anion design‒solvation shell‒property correlation

In addition to the passivation layer, another factor critical to the battery performance is the electrolyte transport properties. Considering the similarity of the solvation shell of Mg and Ca in DFT simulations, we took the example of Mg metal to investigate the ion transport properties of different electrolytes. Cation transference numbers (t+) of six electrolytes were measured and found that the values were mainly concentrated between 0.3 and 0.5 (Supplementary Fig. 41). After obtaining t+ and ion conductivity, the parameters of apparent diffusion coefficient (D), critical current density (Jlim) and Sand’s time (τ) can be calculated by using Einstein–Nernst equation (1), critical current density equation (2) and the Sand equation (3).

$${\sigma }_{+}=\sigma {t}_{+}=\frac{{CD}{F}^{2}{z}^{2}}{{RT}}$$
(1)
$${J}_{\mathrm{lim}}=\frac{{CD}}{1-{t}_{+}}\frac{2F}{L}$$
(2)
$${\tau }^{0.5}=\frac{{z{FAC}}{D}^{0.5}{\pi }^{0.5}}{2i(1-{t}_{+})}$$
(3)

Where σ+ is cation conductivity, σ is ionic conductivity, C is the bulk cation concentration, F is the Faraday constant, z is the number of electrons transferred, R is the gas constant, T is temperature, L is the diffusion length, A is the electrode area and i is the applied current.

Under the premise of small differences in t+, there is a positive correlation between ionic conductivity and diffusion coefficient/critical current density/Sand time (σ ∝ D ∝ Jlim and τ; Supplementary Fig. 42). Considering the passivation layer in M1–M5 does not effectively protect the magnesium anode, the ionic conductivity directly determines the time of dendrite formation and cell lifespan. This view was confirmed by galvanostatic polarization (Supplementary Fig. 43), half-cell cycling and deposition characterization from which many dead Mg in low-ionic-conductivity electrolyte (M1) can be seen, and the diameter of Mg is also smaller than that in M2–M5.

On the basis of the abovementioned experimental and simulation results, we summarize an interesting anion design‒solvation structure‒property/performance relationship (Fig. 5a–c) from which we believe that the electrochemical performance using Mg organoborate is mainly controlled by ion transport, whereas the electrochemical performance using Ca organoborate is more affected by passivation components.

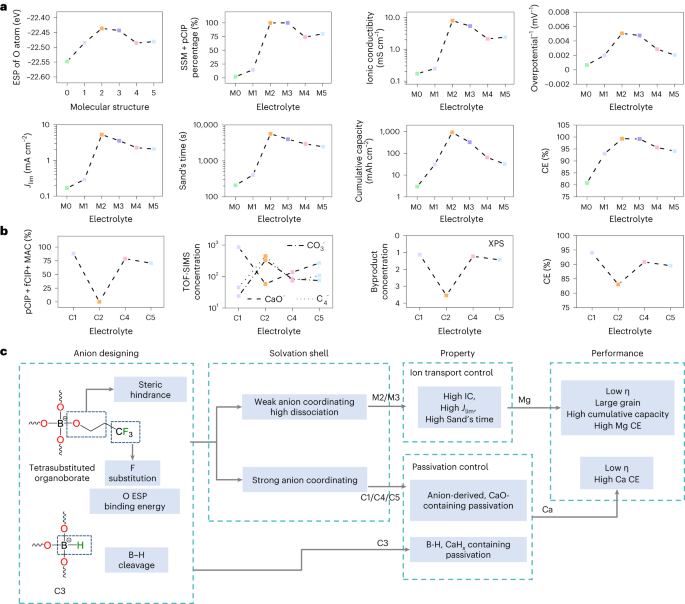

Fig. 5: Correlation between the molecular structure and properties and performance.
figure 5

a, Correlation between the molecular design, solvation shell, Mg electrolyte transport properties and cell performance. b, Correlation between the solvation shell, Ca passivation layer and cell performance. c, Top-down design for high-performance magnesium/calcium solvates: by rationally manipulating the chain length and F substitution at molecular level, some physico-chemical properties of solvates such as solvation capability, binding energy and ionic conductivity (IC) can be fine tuned, which influence subsequent electrolyte ion transport and SEI formation.

Full size image

For Mg metal, the large and high-F-substitution design improves the dissociation degree in solvation shell, which directly affects kinetics parameters such as ionic conductivity (σ), apparent diffusion coefficient (D), limiting current density (Jlim) and Sand’s time (τ) in the battery. The higher ionic conductivity (for example, M2, M3) provided fast cation diffusion and high limiting current density, which decreases the concentration gradient approaching the electrode surface, making the electrodeposition to exhibit a large polyhedral grain under kinetic control. This morphology avoids the formation of dead metal and dendrite during cycling (Supplementary Fig. 44), which directly affecting the Mg CEs and cell lifespan. Although a small number of byproducts are found on the Mg surface, the random distribution rather than conformal SEI structure makes the Mg passivation layer providing less impact on Mg reversibility.

However, for calcium metal, the complicated passivation components make the failure mode of Ca metal more complex (Fig. 5b and Supplementary Fig. 45). Although we can observe the short-circuit behaviour obey the Sand’s time rule with a rank of C3 > C4 / C5 > C1 in symmetrical cells, their CE and ion transport properties are not directly related. Combining TOF-SIMS and electrochemical performance, we found reducing the formation of high-migration-barriers byproducts (for example CaCO3, CaF2)34 and preventing Ca deactivation are the key to improving the reversibility of calcium metals. One way is to establish an anion-participating solvation structure using small and low-F-substitution design (for example, C1/C4/C5, C0 is not included due to limited lifetime). Higher fCIP and pCIP+ in the primary solvation shell means that anions dominate the formation of the passivation layer rather than DME, thus promoting the Ca2+–O interaction and forming the CaO-based passivation rather than organic/solvent-derived CaCO3 components. We also examined the Ca/Cu cells using 0.15 M and 0.5 M C1 and found that low-concentration C1 shows a low CE and a short lifetime trend, similar to C2 (Supplementary Fig. 46). Considering that the maximum solubility of C2 is 0.5–0.6 M, obtaining a stable anion-derived passivation layer and a high CE in the C2 system is almost impossible. The other way is to design the molecular with active B–H bond, which can easily cleavage to form low-migration-barrier CaHx and B–H containing passivation, blocking the subsequent solvent reduction reactions.

Divalent metal electrodeposition morphology

Scanning electron microscopy (SEM) and in situ optical microscopy measurements were carried out to observe the metal deposition behaviour. First, we deposited 5 mA h cm−2 fresh Mg on a Cu current collector using currently available electrolytes, including M0–M5, Mg(TFSI)2, Mg(TFSI)2 + Cl−, MgCl2/AlCl3 (MACC) and Mg(TFSI)2 + methoxyethyl-amine chelants in DME. As shown in Fig. 6a–e, the surface of M2 exhibits a dendrite-free, smooth morphology, and the magnified image below shows a lamellar structure with epitaxial growth behaviour. The cells using other organoborate electrolytes also exhibit compact Mg deposition, whereas the diameter of deposits gradually decreases (M2 > M3 > M4 > M5 ≈ M1 > M0) according to their ionic conductivity. As a comparison, Mg(TFSI)2-based and MACC electrolytes show a messy deposition with a rough interface even when adding effective additives such as 3-methoxypropylamine and Cl−, which means that a high CE does not imply a better deposition morphology (Supplementary Fig. 47). Compared with Mg metal, Ca electrodeposition in the C3 electrolyte exhibits small agglomerates with a rough surface, which may be attributed to the more intense reaction between the calcium metal and electrolyte and the thicker passivation layer (Fig. 6f). Energy-dispersive spectrometry (EDS) mapping proves the successful electrodeposition of Mg/Ca in different electrolytes with passivation derived from salt/solvent decomposition (Fig. 6g and Supplementary Fig. 48). Cross-sectional SEM also exhibits uniform and dense Mg electrodeposition with a thickness of 153 µm after 50 mAh cm−2 deposition (Fig. 6h), which is close to the theoretical thickness (1 mA h cm−2 = 2.5776 µm Mg). The digital photo and X-ray diffraction (XRD) pattern of deposited Mg show a white surface with an optimal (101) texture (Fig. 6i). Optical microscopy also demonstrated a dense Mg deposition without obvious dendrite-like Mg growth (Fig. 6j and Supplementary Fig. 49).

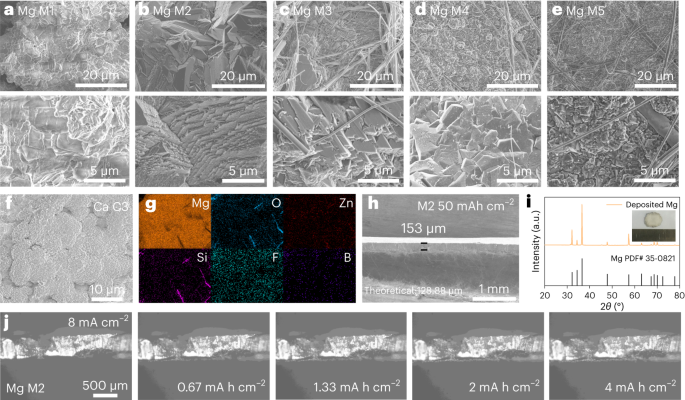

Fig. 6: Deposition morphology and behaviour.
figure 6

a–e, SEM and zoomed-in images of Mg plated on a Cu substrate in the M1 (a), M2 (b), M3 (c), M4 (d) and M5 (e) electrolytes under the conditions of 1 mA cm−2 and 5 mA h cm−2. f, SEM images of Ca plated on a Cu substrate in C3 under the conditions of 0.5 mA cm−2 and 0.5 mA h cm−2. g, EDS mapping of the Mg deposits on the Cu substrate. h, Cross-sectional SEM image of Mg with an areal capacity of 50 mA h cm−2. i, XRD pattern of deposited Mg. The inset shows a digital photo of deposited Mg. j, Smooth Mg deposition behaviour revealed by in situ optical microscopy under 8 mA cm−2.

Full size image

Cycling performance of the Mg full cell

To achieve high-energy-density practical Mg metal batteries, some important parameters already used in Li-metal/Li-ion batteries need to be carefully controlled, such as the N/P ratio (negative-to-positive electrode capacity ratio) and E/C ratio (electrolyte weight to cathode capacity ratio), which are related to the capacity/loading of the metal anode and cathode, the thickness of the separator and the weight of the electrolyte41,42,43. In this section, we investigated the full-cell performance of the synthesized electrolytes using different cathodes and thin separators and explored the possibility of reaching 200 Wh kg−1.

First, CuS/Mg coin batteries were assembled to investigate the cycling performance under mild conditions. As shown in Fig. 7a and Supplementary Fig. 50, the commercial CuS cathode shows a capacity of ~100 mA h g−1 (0.3 mA h cm−2) for Mg2+ storage in both the M2 and M3 electrolytes. The cell cycling in M2 exhibits a 95% capacity retention after 900 cycles under 0.1 C charge/discharge conditions, whereas that using M3 exhibits a 63% capacity retention after 130 cycles. Moreover, we also used an ultrathin Mg foil (30 μm) anode and a thin GF-A separator to fabricate the CuS/Mg pouch cell to evaluate the performance of M2 at a large scale (Fig. 7b and Supplementary Fig. 51). The capacity of the ultrathin Mg foil is approximately 10.996 mA h cm−2 (Supplementary Fig. 52), and that of the CuS cathode used in the pouch cell is approximately 6 mg cm−2. The pouch cell shows a total capacity of 9.2 mA h after activation and maintains a 93.2% capacity retention after 60 cycles (Fig. 7c and Supplementary Fig. 53).

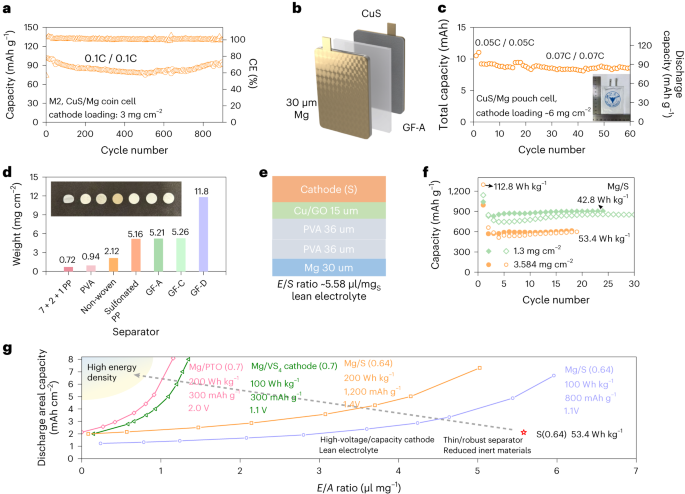

Fig. 7: Electrochemical performance of Mg metal full cells and the pathway towards high energy density.
figure 7

a, Cycling performance of a Mg/CuS coin cell using the M2 electrolyte under 0.1 C. b, Schematic of a conventional Mg metal pouch cell coupled with a 30-μm metal anode and a CuS cathode. c, Cycling performance of the CuS/Mg pouch cell under flooded electrolyte conditions. d, Selection of a thin/Mg compatible separator (7+2+1 PP: 7 μm polypropylene, 2 μm boehmite coating, 1 μm polymer coating. GF-A, GF-C, GF-D: The types of glass microfiber filters). e, Configuration of high-energy-density Mg/S cells coupled with a GO/Cu interlayer, a thin PVA separator and a lean electrolyte. f, Cycling performance of 42.8 and 53.4 Wh kg−1 Mg/S coin cells at 0.1 C at 60 °C. g, Pathway towards high-energy-density Mg metal cells using a high-voltage/high-capacity cathode, a lean electrolyte and a limited anode (E/A ratio: electrolyte weight to active mass; the discharge capacity, active mass ratio and average voltage for calculation are listed in the figure).

Full size image

For high-energy-density configuration, pyrene-4,5,9,10-tetraone (PTO) with enolization redox chemistry and S with conversion-type chemistry were investigated (Supplementary Fig. 54). The PTO/Mg/M2 cell exhibits an acceptable capacity of 260 mA h g−1 with an average discharge voltage of ~2 V under low active mass loading (1 mg cm−2) and 30% active mass conditions (Supplementary Fig. 55). However, its low tap density and high porosity make high energy density an extravagant hope (Supplementary Fig. 56). As of now, we have inferred that the PTO/Mg configuration will have difficulty obtaining a high energy density unless high tap density and a high-pressure compaction electrode can be well established.

For the Mg/S system, we modified the separator and interlayer to obtain a high-energy and stable cycling performance. A thickness-controllable PVA separator was prepared by electrospinning, which can be easily infiltrated by a lean electrolyte (Supplementary Figs. 57 and 58). Compared with GF-A (5.21 mg cm−2), the mass per unit area of 36 μm PVA (0.94 mg cm−2) decreases by 80% and shows compatibility with the Mg metal anode (Fig. 7d and Supplementary Fig. 59). Moreover, a GO layer with embedded Cu nanoparticles was prepared by filtration, which can suppress the shuttle effect of polysulfides and improve the cycling stability (Supplementary Figs. 60 and 61). With these efforts, high-energy-density Mg metal prototypes were fabricated using a lean electrolyte and a high-loading S cathode at 60 °C. The detailed structure is displayed in Fig. 7e. The coin cell with 1.3 mgs loading (E/S = 11.5 μl mg−1) exhibits an initial capacity of ~1,141 mA h g−1 with a 74.6% capacity retention after 30 cycles (Fig. 7f). The corresponding energy densities of the two parallel cells are 42.8 Wh kg−1 and 41.4 Wh kg−1. When using a high-loading cathode (3.584 mgs) and a high-loading GO/Cu interlayer, the cells (E/S = 5.58 μl mg−1) exhibit an energy density of ~ 53.4 Wh kg−1 and 52.1 Wh kg−1 after ~19 cycles (the energy density of first cycle is 112.8 Wh kg−1 and 86.5 Wh kg−1 for two parallel cells). This stable cycling performance is derived from both the Mg/S (~1.5 V) and CuxS/Mg (~1.1 V) chemistry under higher temperature. The detailed parameters for these Mg coin cells are listed in Supplementary Table 3 and Supplementary Fig. 62.

In short, the realization of high-energy-density magnesium metal batteries still requires joint efforts and attention (Fig. 7g). First, the capacity of Mg/S cells rapidly decays, and there is an urgent need to find stable and high-capacity cathodes (for example, Mg0.15MnO2 or VS4) for a high-energy-density configuration. Second, lean electrolyte is also needed for higher energy density, and there is an urgent need to find a high-boiling-point solvent (>90 °C) that is suitable for both Mg anode and pouch cell configurations. Third, high cathode loading requires a suitable/rigid separator to suppress the penetration of magnesium metal and prevent short circuits.

Conclusions

In this work, we prepared high-performance Mg/Ca organoborate salts through a facile cation replacement method using an inexpensive Zn(BH4)2 precursor. By exploiting the high metal activity of Mg and Ca, Zn2+ in the solvation structure can be easily replaced to obtain desired solvates. By combining MD/DFT calculations with experimental results, we elucidated the anion design–solvation structure–property/performance relationship. Specifically, by rationally designing the chain length and F-substitution degree of precursors, the solvation shell, ionic conductivity, interfacial properties and cycling performance can be well tuned. A completely dissociated magnesium organoborate system (M2) provides a thin passivation interface with a 99.04% CE, and the calcium organoborate systems (C1/C3) with close-contact solvation or B–H inclusion properties offers CaO/CaHx-based passivation layer with high reversibility. By using a 30 μm Mg anode, a low electrolyte/sulfur ratio (E/S = 5.58 μl mg−1), a modified PVA separator and a GO/Cu interlayer, a rechargeable 53.4 Wh kg−1 Mg metal prototype is achieved. Drawing on our collective findings, we discussed challenges and possible pathways towards high-energy-density magnesium batteries beyond 100 Wh kg−1. Our results pave the way for realizing next-generation earth-abundant, energy-dense multivalent metal-ion technologies.

Methods

General

1 M Zn(BH4)2/THF was purchased from Rhawn Chemical Reagent Network. Hexafluoroisopropanol was purchased from Adamas-beta. Perfluoro-tert-butanol was purchased from Energy Chemical. Ethanol, 2,2,2-trifluoroethanol, 3,3,3-trifluoro-1-propanol, 1,1,1-trifluoro-2-propanol and 3-Methoxypropylamine (MPA) were purchased from Shanghai Aladdin Biochemical Technology Co. Mg(TFSI)2 was purchased from Dodochem Co. and used as received. 1,2-Dimethoxyethane (DME) was provided by Shanshan Advanced Materials (Quzhou) Co. 3 N Mg foils and hexane were purchased from Sinopharm Chemical Reagent Co. 1-mm-thick Ca foils were purchased from zkynxc.com. 30-μm Mg foil was purchased from Ningjin County Huabeimei Processing Factory. Ca granules, AlCl3, MgCl2, ZnCl2, CuS and nano Cu powder were purchased from Shanghai Macklin Biochemical Co. Pyrene-4,5,9,10-tetraone was purchased from aikonchem Co.

Synthesis of Mg and Ca solvates and electrolyte

Processes

Mg(B(Et)4)2 and Ca(B(Et)4)2: in a typical process, 2 ml Zn(BH4)2/THF solution (2 mmol) was dissolved into 2 ml DME in a glass bottle after which 0.737 g (16 mmol) ethanol was gradually added with stirring. The solution was stirred more than 24 h, and Mg or Ca foils were immersed into solution to replace the solvated Zn2+ to Mg2+/Ca2+ until the surface without any black Zn appeared. The obtained transparent solution was purified by ethanol again to remove the remaining the BH4−. Finally, the solution was dried in vacuo under room temperature for two hours to obtain the target solvate.

Mg(B(tfe)4)2 and Ca(B(tfe)4)2: in a typical process, 2 ml Zn(BH4)2/THF solution (2 mmol) was dissolved into 2 ml DME in a glass bottle after which 1.6 g (16 mmol) 2,2,2-trifluoroethanol was gradually added with stirring. The solution was stirred more than 24 h, and Mg or Ca foils were immersed into solution without stirring until the surface without any black Zn appeared. The obtained transparent solution was purified by 2,2,2-trifluoroethanol again to remove the remaining the BH4−. Finally, excessive hexane was added into solution to precipitate the target solvate. After removing the solution, the white salt was dried in vacuo under room temperature.

Mg(B(hfip)4)2 and Ca(B(hfip)4)2: in a typical process, 2 ml Zn(BH4)2/THF solution (2 mmol) was dissolved into 2 ml DME in a glass bottle after which 2.689 g (16 mmol) hexafluoroisopropanol was gradually added with stirring. The solution was stirred more than 24 h, and Mg or Ca foils were immersed into solution without stirring until the surface without any black Zn appeared. The obtained transparent solution was purified by hexafluoroisopropanol again to remove the remaining the BH4−. Finally, excessive hexane was added into solution to precipitate the target solvate. After removing the solution, the white salt was dried in vacuo under room temperature.

Mg(BH(pftb)3)2 and Ca(BH(pftb)3)2: in a typical process, 2 ml Zn(BH4)2/THF solution (2 mmol) was dissolved into 2 ml DME in a glass bottle after which 2.832 g (12 mmol) perfluoro-tert-butanol was gradually added with stirring. The solution was stirred more than 24 h, and Mg or Ca foils were immersed into solution without stirring until the surface without any black Zn appeared. The obtained transparent solution was purified by perfluoro-tert-butanol again to remove the remaining the BH4−. Finally, excessive hexane was added into solution to precipitate the target solvate. After removing the solution, the white salt was dried in vacuo under room temperature.

Mb(B (tf1p)4)2 and Ca(B (tf1p)4)2: in a typical process, 2 ml Zn(BH4)2/THF solution (2 mmol) was dissolved into 2 ml DME in a glass bottle after which 1.824 g (16 mmol) 3,3,3-trifluoro-1-propanol was gradually added with stirring. The solution was stirred more than 24 h and Mg or Ca foils were immersed into solution to replace the solvated Zn2+ to Mg2+/Ca2+ until the surface without any black Zn appeared. The obtained solution was purified by 3,3,3-trifluoro-1-propanol again to remove the remaining the BH4−. Finally, the solution was dried in vacuo under room temperature for two hours to obtain the target solvate.

Mg(B (tf2p)4)2 and Ca(B (tf2p)4)2: in a typical process, 2 ml Zn(BH4)2/THF solution (2 mmol) was dissolved into 2 ml DME in a glass bottle after which 1.824 g (16 mmol) 1,1,1-trifluoro-2-propanol was gradually added with stirring. The solution was stirred more than 24 h and Mg or Ca foils were immersed into solution to replace the solvated Zn2+ to Mg2+/Ca2+ until the surface without any black Zn appeared. The obtained solution was purified by 1,1,1-trifluoro-2-propanol again to remove the remaining the BH4−. Finally, the solution was dried in vacuo under room temperature for two hours to obtain the target solvate.

Preparation of 0.5 M M2 solutions: 826 mg (Mg(DME)3)(B(hfip)4)2 was dissolved into 0.6 ml DME with stirring, then DME was dropwise added to form a 1 ml solution. Note that 0.25 M M2 electrolyte (density: 1.07 g cm−3) was used in a high-energy-density test considering of high molecular weight of M2. The other electrolytes were prepared based on the molar quantity of Zn(BH4)2.

Preparation of MACC solutions: 87 mg MgCl2 and 60 mg AlCl3 were added to 15 ml THF. The mixture was stirred overnight at room temperature to obtain the MACC.

Preparation of Mg(TFSI)2 with multidentate methoxyethyl-amine chelants: 292 mg Mg(TFSI)2 was added into solution of 0.7 ml DME and 0.3 ml MPA. The mixture was stirred overnight at room temperature.

Preparation of Mg(TFSI)2 with Cl− additive: 292 mg Mg(TFSI)2 and 15 mg ZnCl2 were added into solution of 1 ml DME. The mixture was stirred overnight at room temperature.

Preparation of electrode, separator and interlayer

The CuS cathode (3–6 mg cm−2) was prepared using CuS, SuperP and polyvinylidene difluoride (PVDF) in an 8:1:1 mass ratio. The slurry was cast on a copper foil and dried at 80 °C under vacuum for 12 h. For the cathode of 30% active mass ratio, PTO cathode ~1 mg was prepared using PTO, SuperP and PVDF in a 3:5:2 mass ratio. For the high active mass ratio cathode, PTO and carbon nanotubes were mixed in a 4:6 or 7:3 mass ratio. The slurry was cast on an Al foil, and the electrode was pressed under the pressure of 20 MPa. The S cathode was prepared using S/C composite (0.8), SuperP and PVDF in an 8:1:1 mass ratio.

The GO/Cu film was prepared by dispersing 10 mg GO into 5 ml ethanol with the aid of ultrasonic after which a certain quality of nano Cu particles was added into the solution for further ultrasonication. The solution was filtered through the polypropylene separator to obtain a free-standing film.

Fabrication of PVA nanofibrous separators: first, PVA was dissolved in deionized water and thoroughly stirred to form a homogenous solution with a concentration of 10% (w/w). The prepared precursor solution was transferred to a 10 ml syringe. The electrospinning process was performed under the condition of 30 °C and 50% humidity. The voltage applied is 18 kV, and the feed rate is 0.3 ml h−1. The distance between the needle and the Al foil collector is 15 cm and the rotational speed is 300 r.p.m. The obtained PVA film was finally dried in vacuo under 80 °C for 24 h.

Electrochemical measurement

The 2032 coin cells are fabricated in the argon-filled glovebox with H2O and O2 < 0.1 ppm. Neware electrochemical testing systems (CT-4008T-5V10mA) were used to obtain the electrochemical performance of Mg/Ca metal-based cells. Mg foil (100 µm and 30 µm) and Ca foil (500 µm) were polished until the surface became shiny before use. For the conventional test, glass fibre (GF-D) separator and adequate electrolytes (120 µl) were used for cycling. For the high-energy-density test, PVA separator, interphase layer (GO and carbon nanotube) and lean electrolytes (15–20 µl) were used for cycling. Asymmetric cells use Cu foils as counter electrode and cycled at 0–2 V for five cycles. After activation, Mg/Ca was plated on Cu electrode and stripped with a cut-off voltage of 1.0 or 1.4 V. CHI600E Workstation was used to evaluate the linear sweep voltammetry (5 mV s−1) and cyclic voltammetry (35 mV s−1) performance.

Characterization

The morphologies and element mapping of Mg/Ca anode were examined by SEM SU-8010 (Hitachi) at 5–15 kV. Single-crystal X-ray diffraction was performed on Gemini A OHra, Varian. Inductively coupled plasma-mass spectrometry (ICP-MS) was carried out on NexIon 300Q, PerkinElmer. Electrospray ionization-mass spectroscopy (ESI-MS) was performed on 6224 TOF LC/MS, Agilent Technologies. Nuclear magnetic resonance spectra (NMR) was performed on DD2–600 (600 MHz, in DMSO-d6), Agilent Technologies. The surface composition was examined by X-ray photoelectron spectroscopy (ESCALAB 250Xi, ThermoFisher Scientific). Cryo-Electron Microscopy was performed on Talos F200C 200 kV. Time of flight secondary ion mass spectrometry (TOF-SIMS) was analysed by 5 iontof, PHI NanoTOFII. Optical microscopy was performed on Nikon DS TI-FL. X-ray diffraction (XRD) spectrum was performed on XRD-7000. Raman spectra were performed on ThermoFisher DXR SmartRaman.

Simulation details

MD simulation

The dynamics behaviour of the solvation structures of the studied systems were predicted at Generation Amber Force Field (GAFF) force field. The Universal Force Field (UFF) force field was applied for the Lennard–Jones potential parameters of B element. The bonded parameters involving B were fitted by diagonal elements of redundant internal coordinated Hessian method with Sobtop package44. The partial charges for all molecules were computed by fitting the RESP2 (ref.45) charge of molecules at B3LYP/Def2-TZVP level. The electrostatic interactions in the systems were described by Ewald summation method. The integration for each MD step was set to 1 fs. All simulations were conducted under the NPT ensemble at 300 K. In each MD simulation, an initial equilibration period of 5 ns was used to equilibrate the system, followed by a 45 ns sampling period. All MD simulations were conducted using the GROMACS 2018 programme.

DFT simulation

The electrostatic potential (ESP) involved in the analyses was evaluated by Multiwfn based on the highly effective algorithm46,47. The total ESP without contribution from nuclear charge of O atom was also calculated with the Multiwfn software.

The binding energy was calculated by subtracting the reactant energies from the complex energy. The geometry of each compound was first optimized using the B3LYP functional48 and the 6–31 G(d) basis set. A dispersion correction was also considered using the Becke–Johnson damping function. The solvation effect was described with the Integral Equation Formalism variant of the Polarizable Continuum model49,50, where the static dielectric constant and dynamic dielectric constant were set to be 7.2 and 1.9 for the DME solvent, respectively. Then, the energy of each compound was calculated by the DFT method using the M06–2X functional51 and def2-TZVP basis set. A dispersion correction was also considered using the zero-damping function. The solvation effect was described with the Solvation Model Based on Density52, where the static dielectric constant and dynamic dielectric constant were set to be 7.2 and 1.9 for the DME solvent, respectively.

Calculation of energy density at cell level

To calculate the 200 Wh kg−1 Mg/PTO system: the discharge capacity was assumed as 300 mA h g−1, and the discharge voltage platform was set as 2 V. Considering the high porosity and low electric conductivity of PTO, the active mass ratio was set as 70%.

To calculate the 100 and 200 Wh kg−1 Mg/S system: the discharge capacity was assumed as 800/1,200 mA h g−1 and the discharge voltage platform was set as 1.1/1.4 V. The active mass ratio was set as 64%. The mass of inert material is listed in Supplementary Table 3. Moreover, we did not take the mass of the packaging into these two calculations.

To calculate the 100 Wh kg−1 Mg/VS4 system: the discharge capacity was assumed as 300 mA h g−1 and the discharge voltage platform was set as 1.1 V. The active mass ratio was set as 70%.
