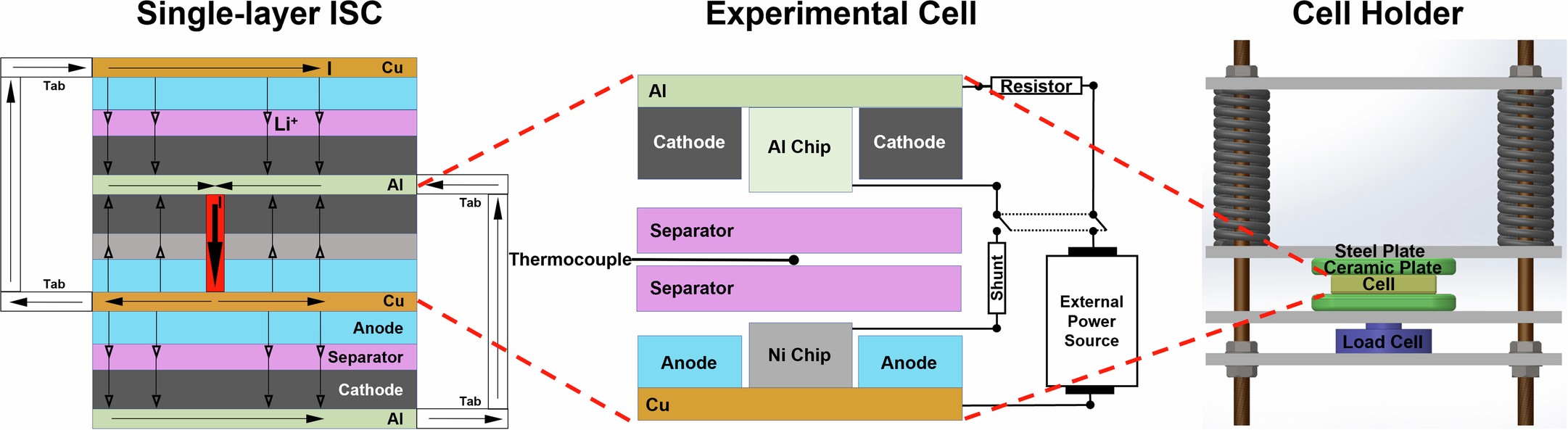

Extended Data Fig. 1: Illustration of the physical problem and corresponding RISC experimental setup.
From: Metrics for evaluating safe electrolytes in energy-dense lithium batteries
Left, Single-layer internal short-circuit in a multilayer battery. Middle, Experimental cell in RISC method. Right, Cell holder with controllable stacking pressure. Figure adapted with permission from ref. 16, American Chemical Society.
